Thermafiber RainBarrier CI High Compressive Max (140) Mineral Wool Insulation

Verified by manufacturer 6 months ago

Owens Corning Third party certifications:
  • EPD

    EPD

    Certificate type

Thermafiber® RainBarrier® ci High Compressive Max (140) insulation boards are designed to support cladding attachment with minimal penetrations.

Jump to:
BOS
5148937200 Website

Application

RainBarrier® ci High Compressive Max can be used behind heavy weight cladding types – including combustible and open-joint assemblies.

Description

The use of ThermaCrimp™ technology allows for excellent compressive strength while providing thermal efficiency, non-combustibility, water repellency, and flexibility when working with uneven substrates. RainBarrier® ci High Compressive Max can be used behind heavy weight cladding types – including combustible and open-joint assemblies.


Features

• High compressive strength to support cladding attachment system with minimal penetration through continuous insulation

• Vapor permeable

• Tolerant of substrate irregularities

• Non-combustible and non-deteriorating

• Fire resistant to temperatures above 1,093°C (2,000°F)

• Enhances acoustical performance

• Minimum 70% recycled content

• Contributes to credits in several green building programs such as LEED® and Green Globes®


Standards, Codes Compliance

• CCMC Evaluation Listing No. 14060-L

• CAN/ULC-S702, Standard for Mineral Fibre Thermal Insulation for Buildings, Type I

• ASTM C612, Mineral Fiber Block and Board Thermal Insulation, Type IA, IB, II, III, IVA, IVB


Certifications and Sustainable Features

• Verified by ICC-ES to contain a minimum of 70% recycled content. See ICC-ES Evaluation Report VAR-1025 at icc-es.org.

• Environmental Product Declaration (EPD) has been certified by UL Environment. For more information visit ul.com/epd.

• RainBarrier® Products have a published Health Product eclaration (HPD).


Availability

Thickness: 25 mm (1”) - 102 mm (4”)

Widths: 609 mm (24”), 1219 mm (48”)

Lengths: 1219 mm (48”), 1829 mm (72”)

General information

Color

Brown

Material

Mineral wool

Shape

Rectangle

CMS

07 21 13.19 Mineral Board Insulation

Primary
07 21 13 Board Insulation

Specification data - Mineral Board Insulation

Sustainability data

Contains Red List materials

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Thermafiber Mineral Wool - EPD

Literature

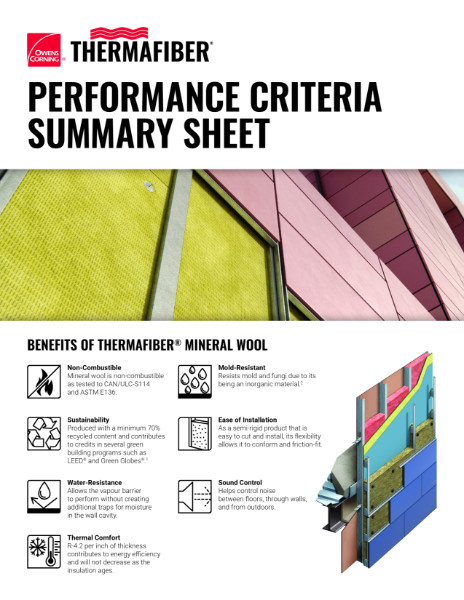

Thermafiber Mineral Wool Performance Summary

Thermafiber Mineral Wool Performance Summary

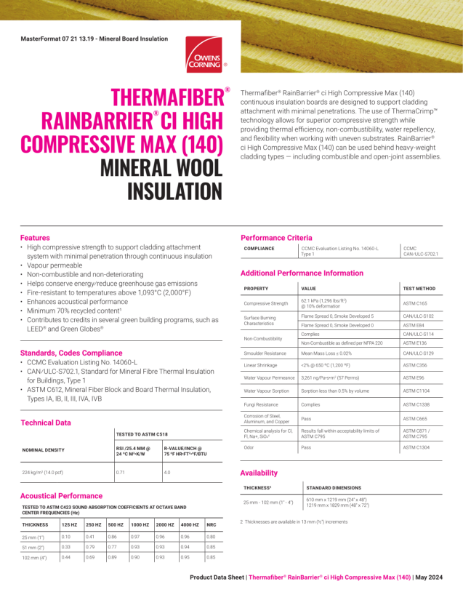

Thermafiber RainBarrier CI High Compressive Max (140) Mineral Wool Insulation Data Sheet

Thermafiber RainBarrier CI High Compressive Max (140) Mineral Wool Insulation Data Sheet

Canadian RainBarrier Insulation Guide

Canadian RainBarrier Insulation Guide

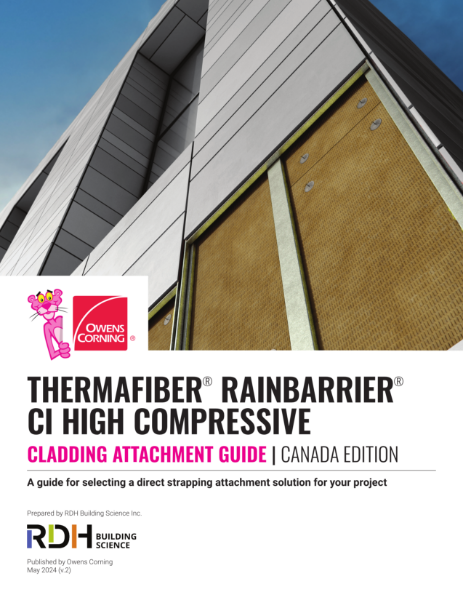

RainBarrier ci HC Cladding Attachment Guide

RainBarrier ci HC Cladding Attachment Guide
