Undersized Mechanical Drain Coupler
Verified by manufacturer 6 months ago

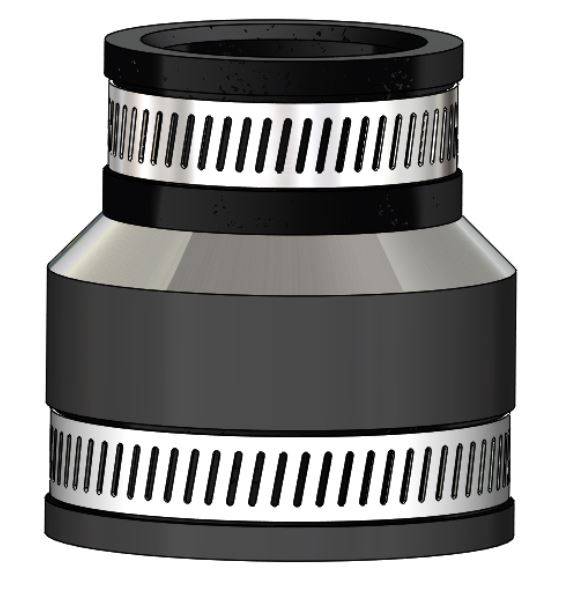

Undersized Mechanical Drain Coupler for DWV Plumbing Pipe
Application
Mechanical Drain Coupler
Description
- Available in three sizes to connect undersized drains to standard DWV plumbing pipe.
- Fits most undersize drains.
- 1.75″ (44mm) to 2.0″ (51mm) DWV.
- 2.75″ (70mm) to 3.0″ (76mm) DWV.
- 3.75″ (95mm) to 4.0″ (102mm) DWV.
- No flow restriction inside the pipe.
- External connection using stainless steel clamps.
- 10 Year Warranty.
General information
Material | Rubber |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Rubber |
Literature
Literature type
PRODUCT SHEET - UNDERSIZE DRAIN COUPLER
TECHNICAL DRAWING - UNDERSIZE DRAIN COUPLER
