Energy neutral with pv installation and hot water panels..

OVERVIEW

Low environmental impact...


CHALLENGE

All over the world architects and building owners are trying to create buildings with a low environmental impact. For this private house, the architect wanted to combine an aesthetical finish of a metal roof in combination with PV and hot water panels. The biggest issue for the architect was the fixing of these panels without having leak problems in the future.


SOLUTION

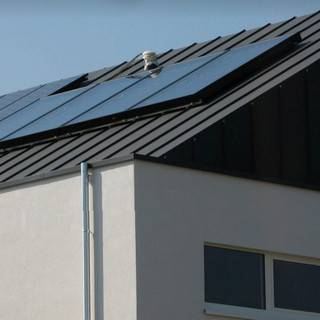

The roof was waterproofed using a RENOLIT ALKORPLAN roofing membrane that is mechanically fastened onto the supporting roof structure. Two kinds of PVC profiles were heat welded onto the waterproofing membrane: on the one hand RENOLIT ALKORDESIGN profiles (for aesthetical value only), on the other hand there are RENOLIT ALKORSOLAR profiles, which function as the base to attach the hot water and the PV panels. The gable was also finished with the RENOLIT ALKORDESIGN system.
