Mytholmroyd Project: ASF Quayside Post & Rail, ASF Seating and ASF Tree Grilles

ASF were approached with a very much open book brief to offer a solution for a church square in Mytholmroyd, West Yorkshire. The area needed a wall top parapet, some glass balustrade, seating and tree grilles.

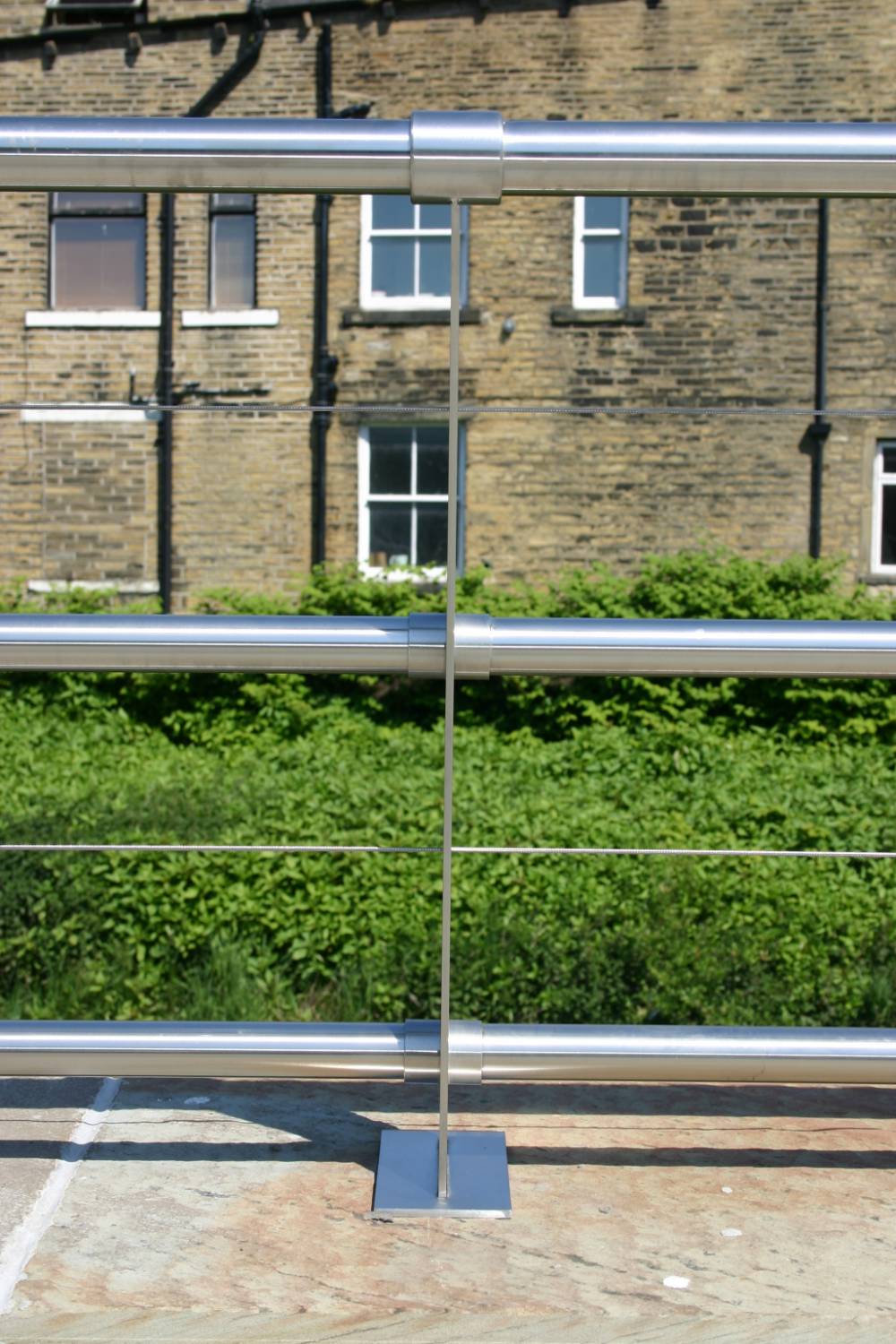

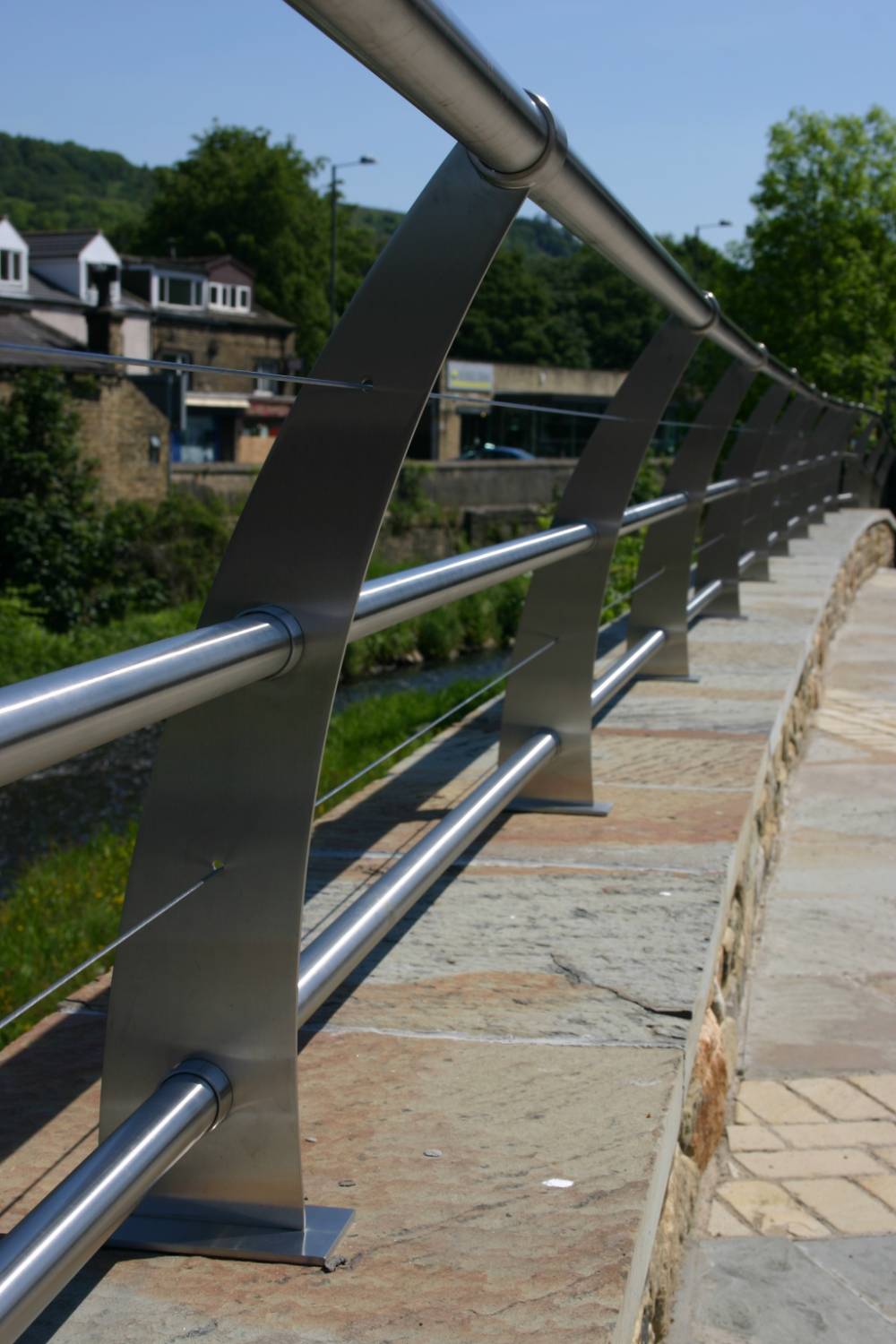

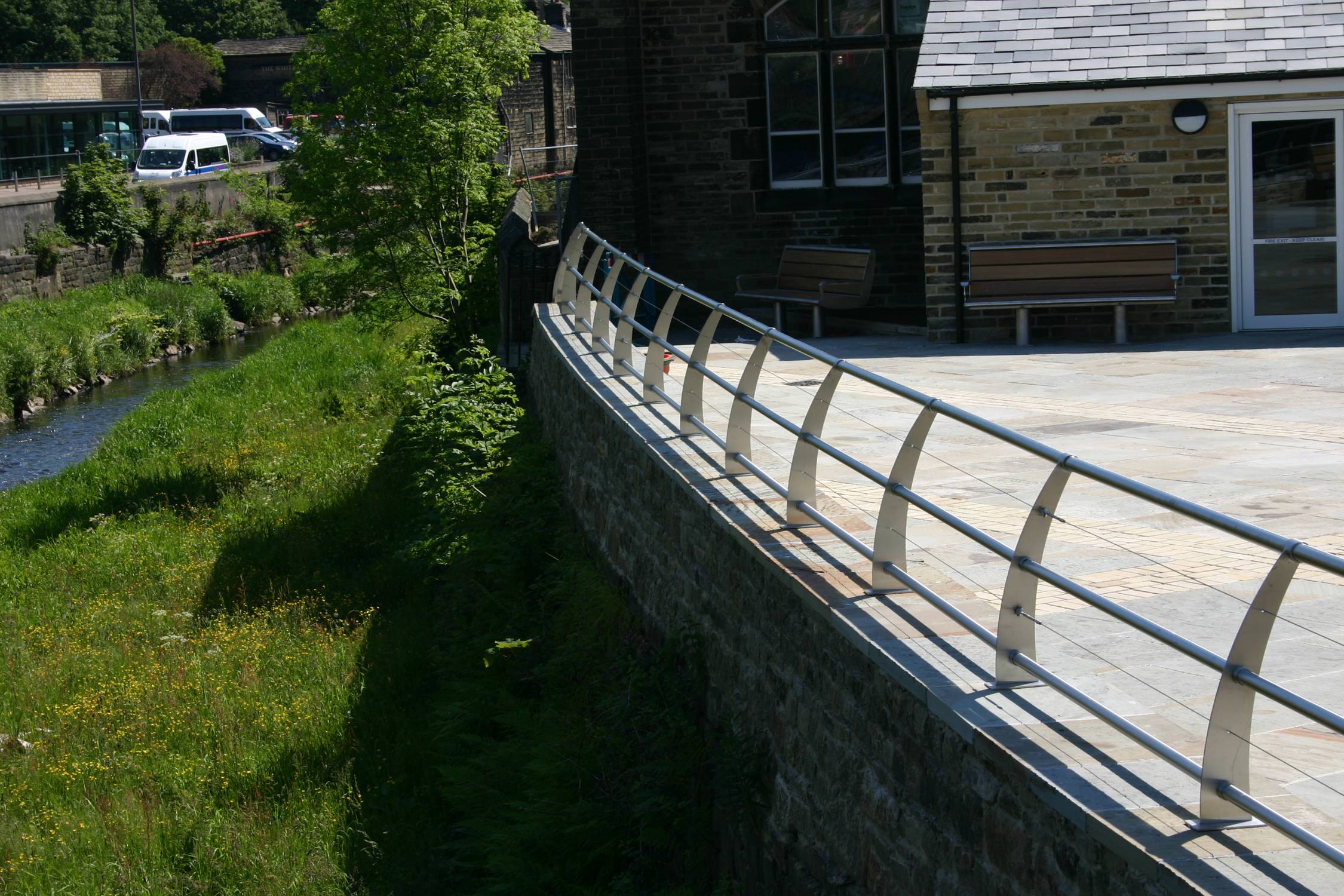

ASF specified a wall top quayside post and rail, but using materials that offered the minimum interference with the view for people using the square whilst still meeting the needs of building regulations and parapet requirements. Uprights were from thinner, laser profiled materials with no T piece to make them as unobtrusive as possible and the rails were intermediately staggered with tension cables for the same reasons. Once installed the whole post and rail system was fully welded together on site to increase rigidity and strength. The job was then fully polished to offer a sublime finish quality.

A small area of glass balustrade was installed at one end of the square where ground levels dropped away. A seat was paced in this area to allow people to sit and observe the river and wildlife through the glass.

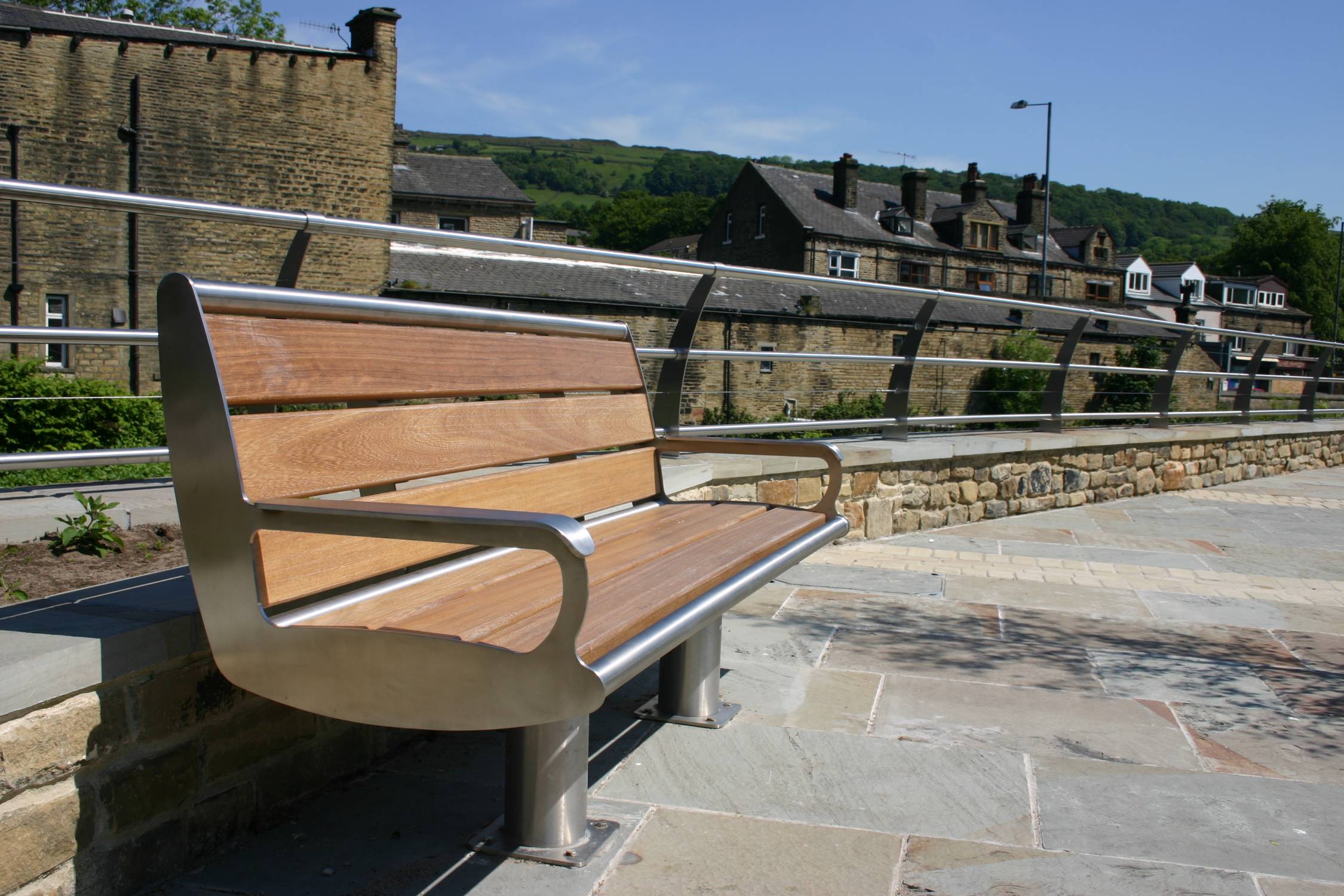

ASF 6012 seats were used all around the site offering seating for up to 36 people at one time.

ASF 100% recycled cast iron tree grilles were also installed, and finished in a simple clear lacquer which maintains the gunmetal look of a new casting with just slight areas of oxidisation that are used as a feature of the finish.
