OVERVIEW

Borrisokane Community College

Bauder Thermofol PVC single ply waterproofing system


Synopsis

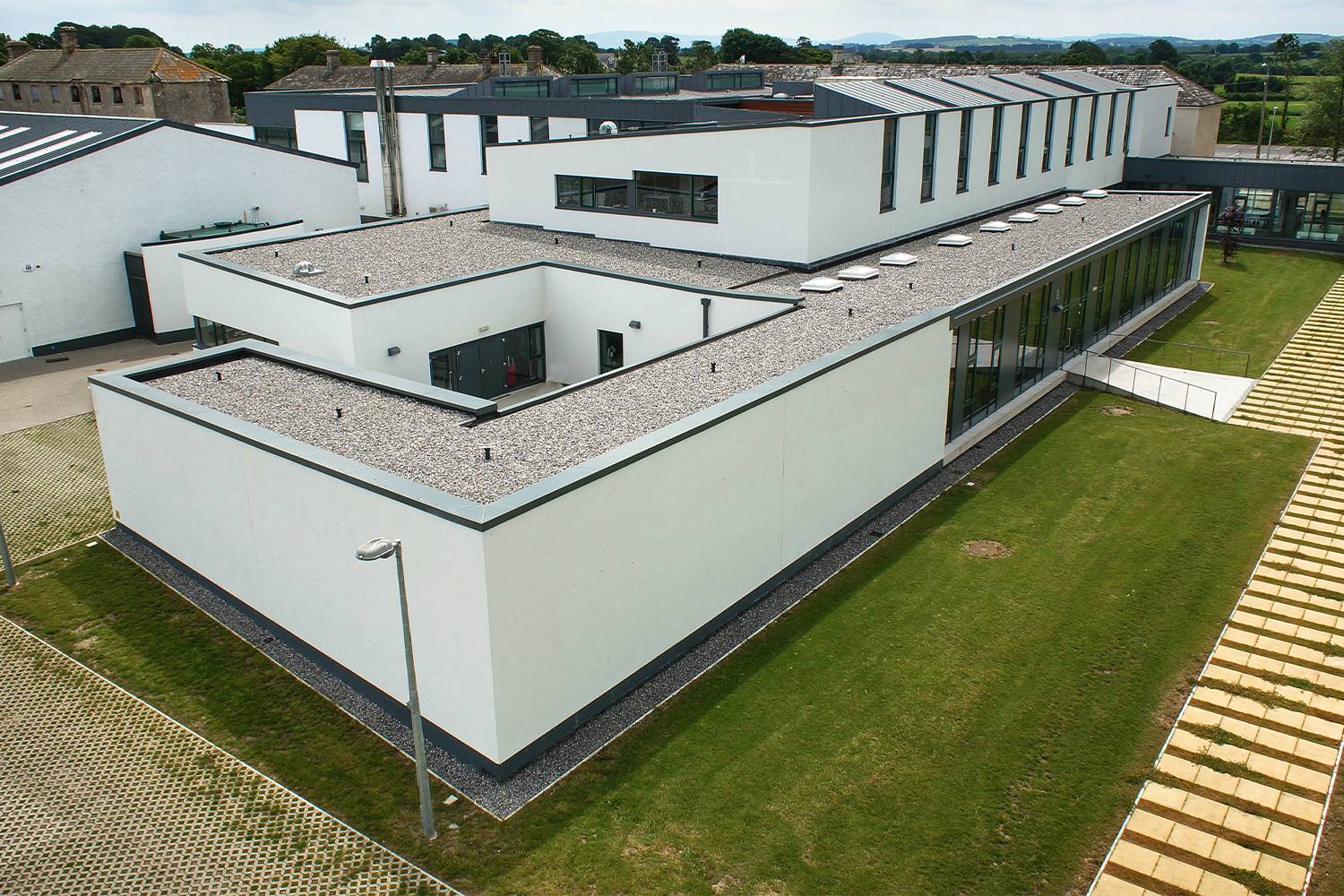

Originally constructed in the 1970s on the site of former workhouses in County Tipperary, the Borrisokane Community College building needed to be demolished and replaced, having exceeded its serviceable life. The client wanted to bring a modern and refreshed appearance to what is a site of great historical significance and the new building’s roof played an integral role in achieving this; with the majority of the roof areas sloping inwards towards the open central courtyard area making them highly visible.


Bauder Building Board

Project:

Borrisokane Community College

Location:

Borrisokane

Roof Area:

3,650m²

Specifier:

Healy & Partners Architects

Main Contractor:

JJ Rhatigan & Co.

Approved Contractor:

Priority Roofing & Cladding


The specification

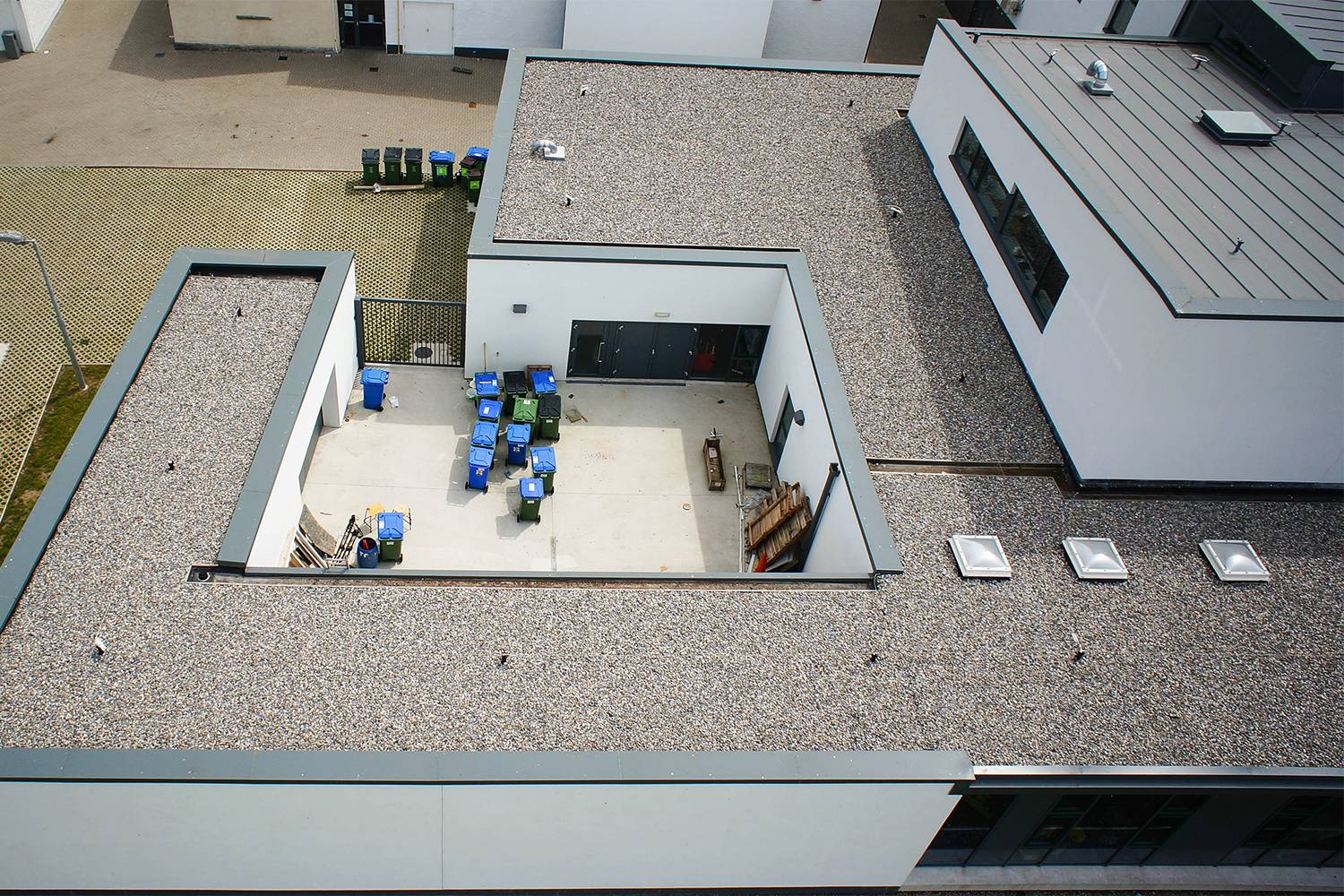

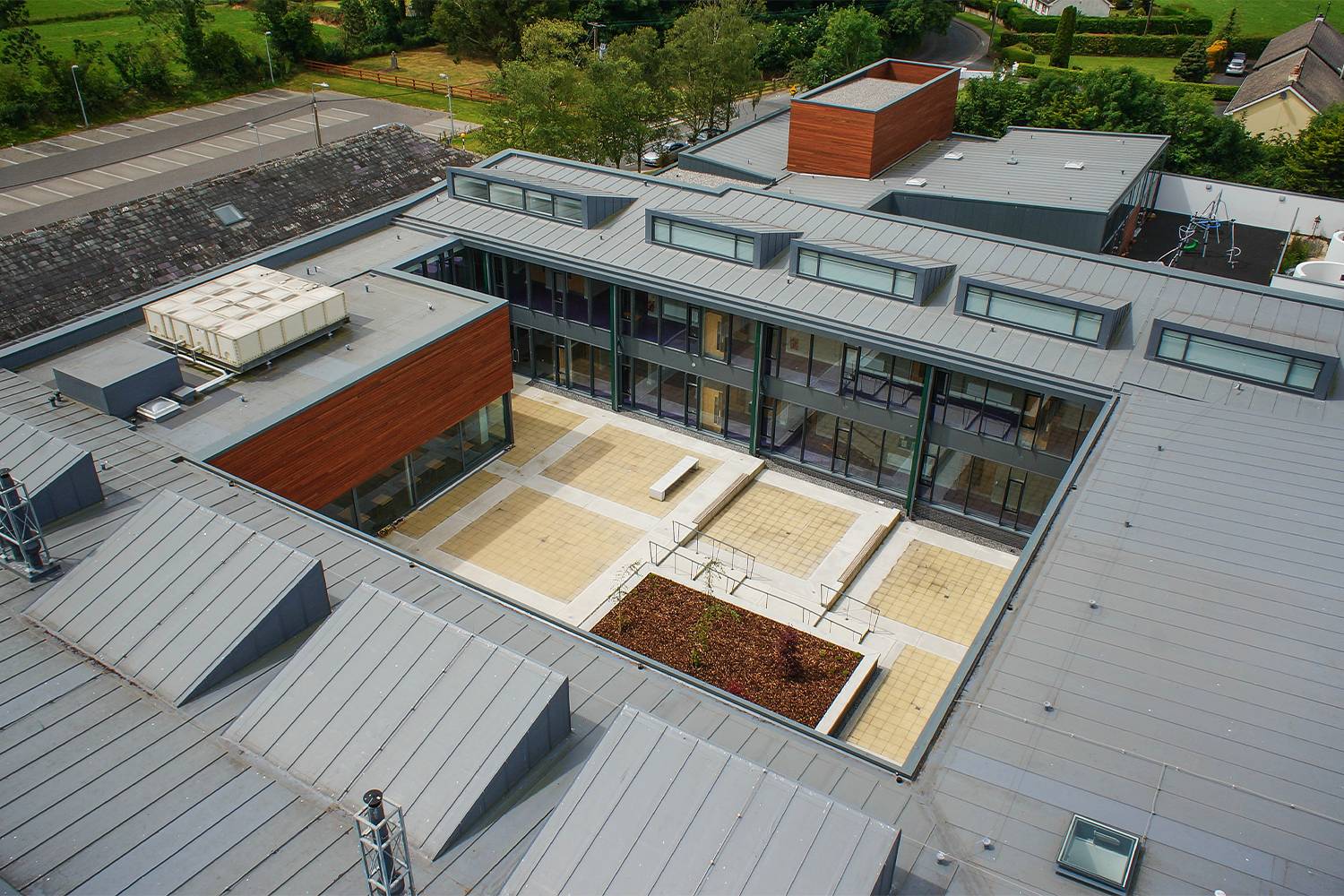

Roof areas totalling over 3,000m2 were fitted with Bauder’s Thermofol single ply fleece backed membrane, which is lightweight, visually appealing and possesses a high tensile strength of ≥ 1100N/50 mm. The system build-up included 160 mm of Bauder’s Thermotech Glass Insulation for superior thermal performance, ensuring the roof achieved the required 0.19 U-Value, and PVC roof profiles were also installed as a cost effective way of replicating the appearance of a standing seam metal roof. Bauder supplied new rooflights to deliver high standards of illumination, insulation and ventilation, and smaller single storey roofs were waterproofed with its bituminous Bauderflex system.



Products applied

Bauder Thermofol

A high quality single ply PVC system with a life expectancy in excess of 30 years.

Bauder Thermotech

An efficient PIR insulation board with a coated glass tissue facing on both sides


The result

Despite the various design and logistical challenges encountered, all roofing works were completed to budget and in time for the start of the inaugural school term much to the delight of everyone involved in the project.



System installed

BauderThermofol PVC single ply waterproofing system

1 Bauder Thermofol U15 FR

A 1.5mm thick, reinforced PVC waterproofing membrane. Stated within BBA certificate 06/4354, the Thermofol PVC waterproofing membranes have a service life in excess of 35 years.

2 Bauder Thermotech

An efficient PIR insulation board with a coated glass tissue facing on both sides.

3 BauderTEC KSD FBS

A 2.5mm depth, self-adhesive air & vapour control layer with a mica finish.


Advocacy

Healy & Partners Architects:

“Bauder delivered a roofing solution of the highest quality, providing expert technical support throughout the project. Their single ply waterproofing system has undeniably helped in transforming the appearance of the college and most importantly given the client total confidence with regards to their roof’s long term future performance.”
