OVERVIEW
Twinfix partnered with principal contractor Willmott Dermott on the construction of the newly opened Willow Grove Primary School in Wixam, contributing two custom-designed, canopies that enhance the school’s outdoor environment. These canopies were crafted to provide essential shelter and promote outdoor learning and play, integral to the school’s facilities.

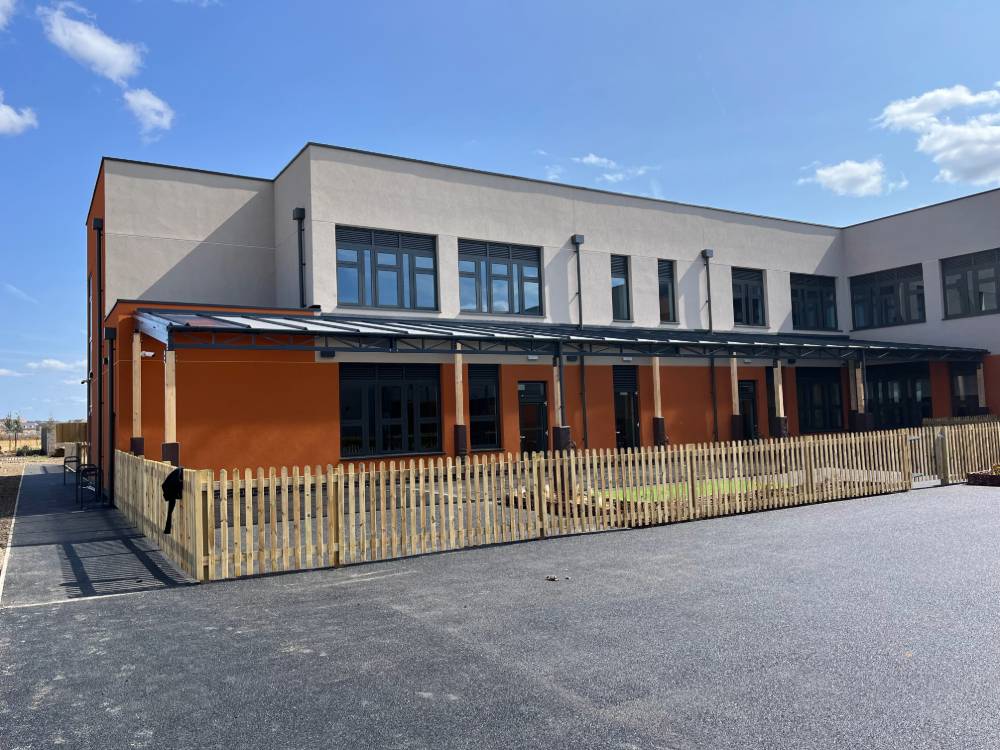

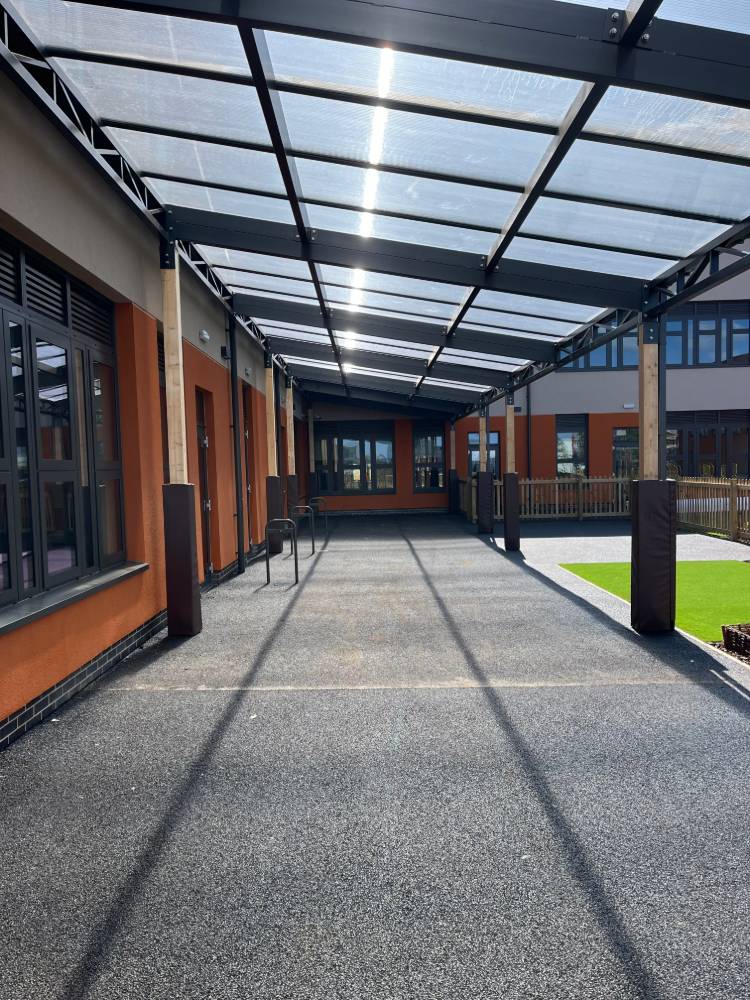

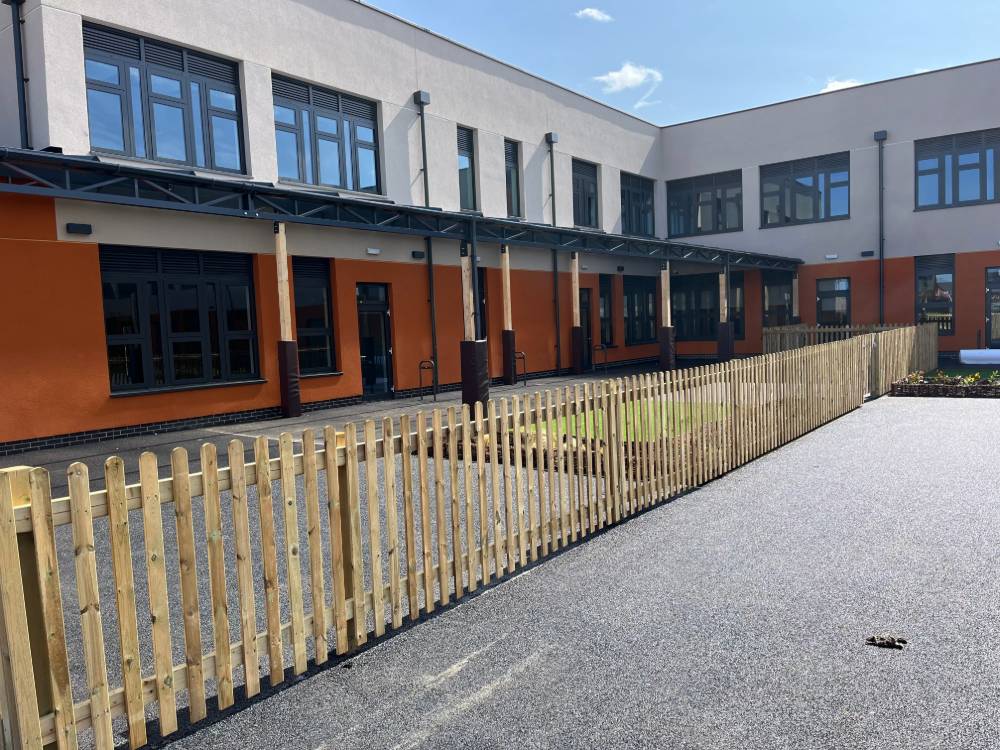

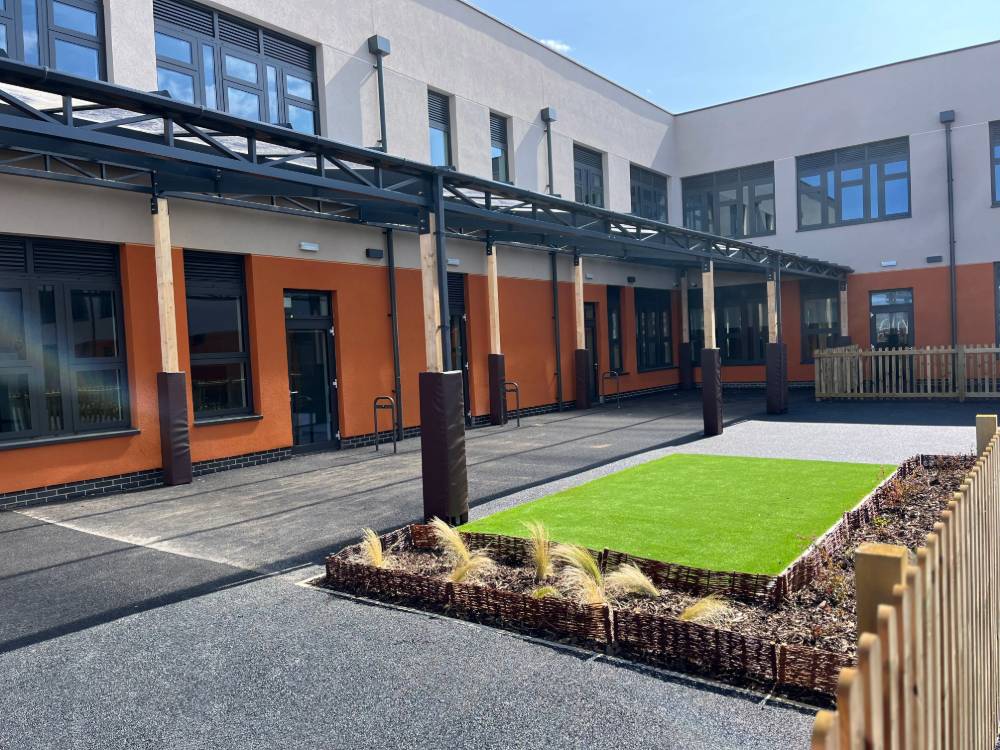

The project involved the installation of two distinct free-standing mono-pitch canopies. One of the canopies was designed as an entrance canopy, measuring 4.82 metres down the slope with a 22-metre run. This structure creates a welcoming and protected area for students and staff as they enter the school, shielding them from the elements during arrival and departure times. The other canopy, attached to a classroom, measured 4.82 metres down the slope with a 26.5-metre run. This canopy extends the classroom’s usable space, providing a sheltered area that enhances outdoor learning and play.
Both canopies were supported by timber posts, which integrate a natural aesthetic into the new school’s design. The timber posts were equipped with post protectors to ensure safety in these high-traffic areas, reducing the risk of injury and maintaining a secure environment for the students.
The canopies were fitted with Twinfix’s Multi-Link-Panel Non-Fragile (NF) system, which is classified as non-fragile in accordance with the HSE’s ACR[M]001:2019 drop test. This roofing system features 16mm opal multiwall polycarbonate panels that provide excellent light diffusion and UV protection while reducing glare. This ensures that the outdoor spaces beneath the canopies remain comfortable and functional in various weather conditions.
The aluminium frames of the canopies were powder-coated in RAL 7016 (anthracite grey), offering a modern, durable finish that complements the school’s architectural style. The powder coating protects the aluminium from the elements, ensuring long-lasting performance and minimal maintenance.
With the new Willow Grove Primary School now open, the canopies are set to play a significant role in the school’s daily operations. The entrance canopy will facilitate a smoother arrival and departure experience for students and staff, while the classroom-attached canopy will extend the outdoor learning and play areas. Twinfix’s involvement in this project underscores the company’s expertise in delivering high-quality, customised canopy solutions that combine functionality with aesthetic appeal.
These canopies will provide lasting value and support the school community for years to come.
Contact Twinfix Limited by clicking the button below to find out which products were used in this case study.
