Case Study - Woolston SEND College

OVERVIEW

Woolston Sixth Form College forms part of Woolston Learning Village, which also includes neighbouring schools Green Lane Special School and Fox Wood Special School. The college educates & supports students aged 16 – 19 years old who have a range of additional needs.

Following the installation of a number of Twinfix canopies at Green Lane Special school over the last eight years, Twinfix were approached by Woolston College to design, manufacture and install canopies on two separate occasions over the last two years.

The initial project involved fitting a twenty-five sqm canopy with vertical glazing to one of the classrooms at the site. The vertical glazing offered weather protection and an element of privacy for the students using the canopy.

The College was so impressed with the process and the installed canopy that they requested a second canopy spanning thirty-two sqm a few months later.

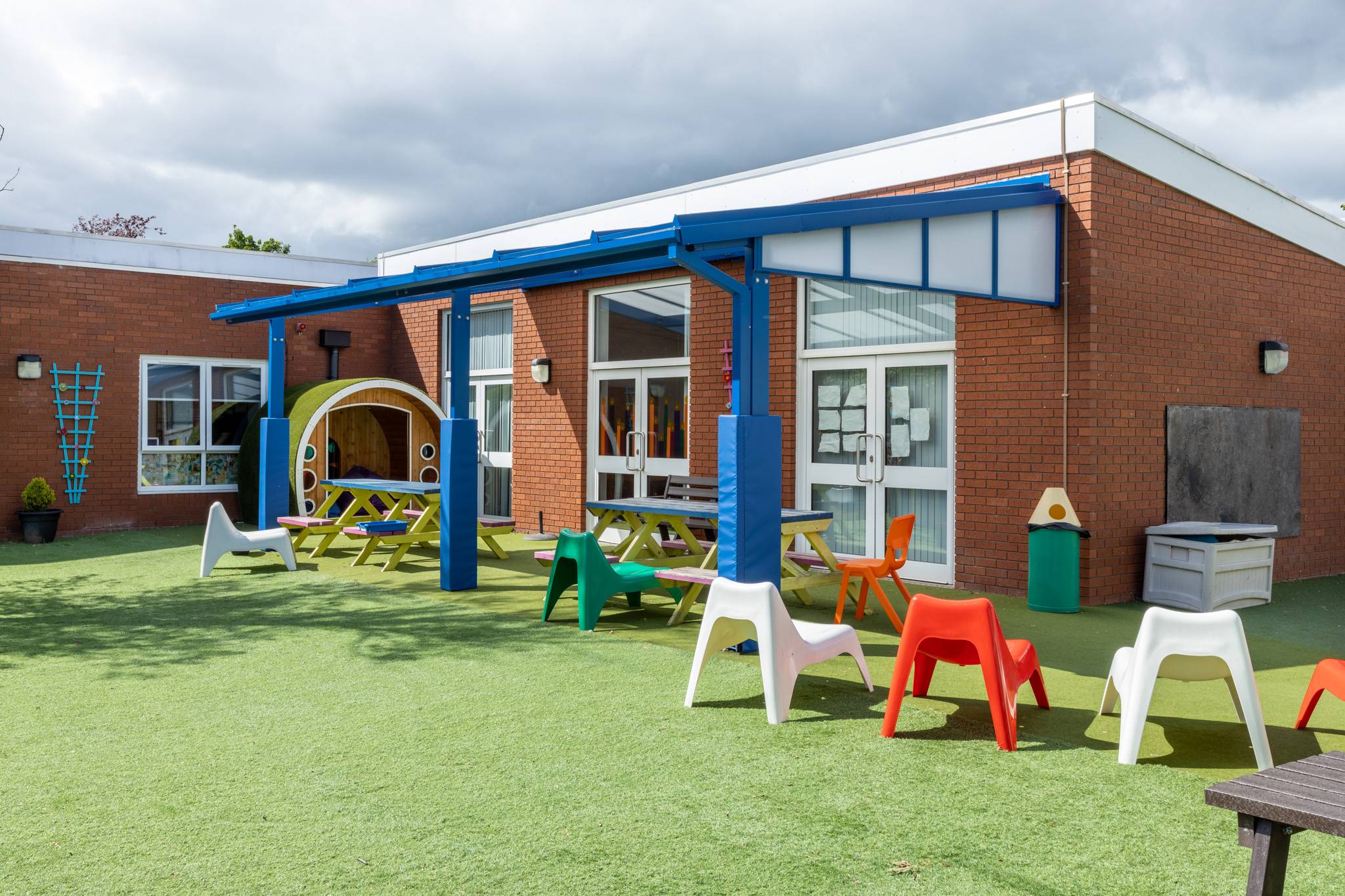

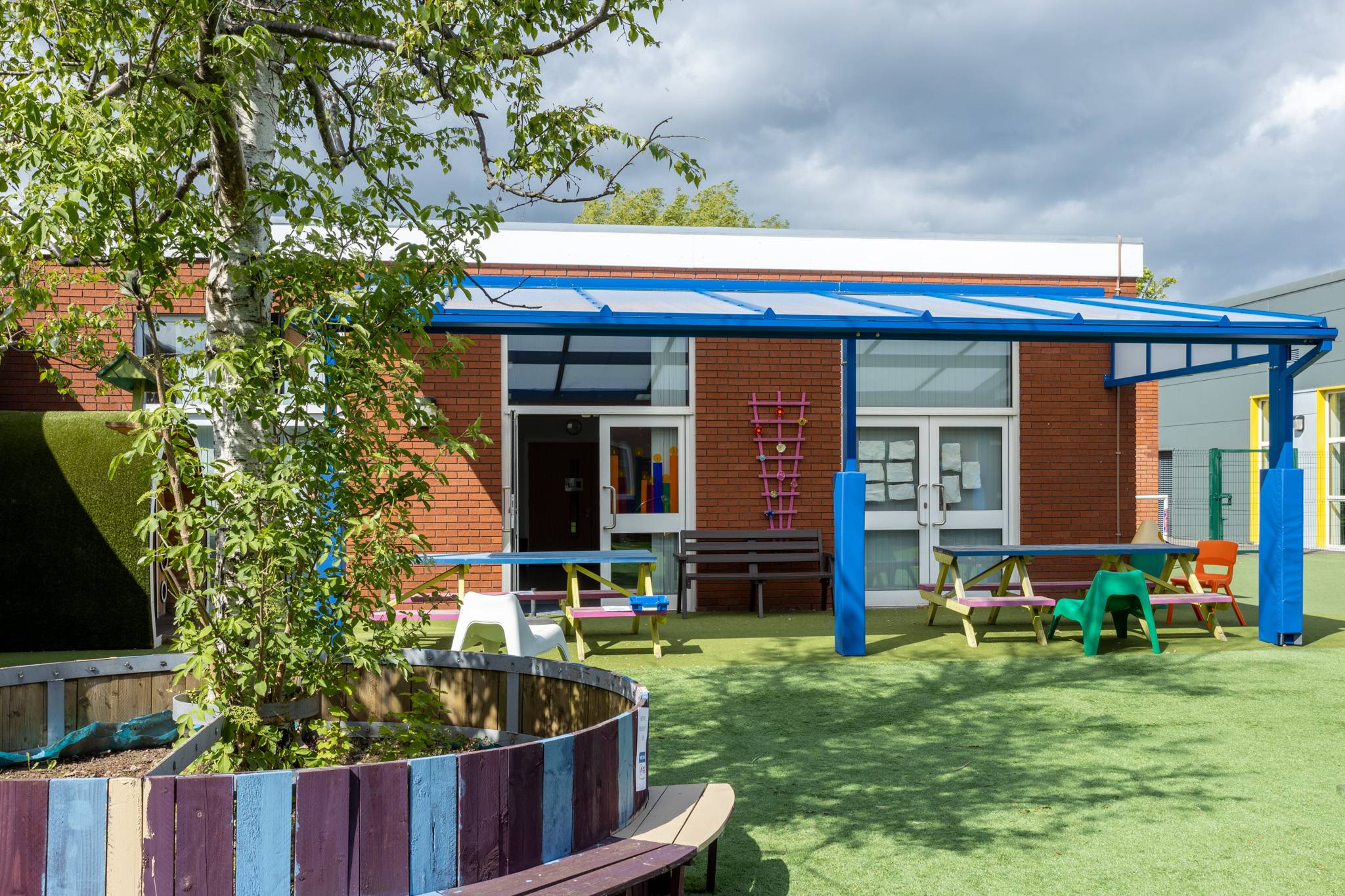

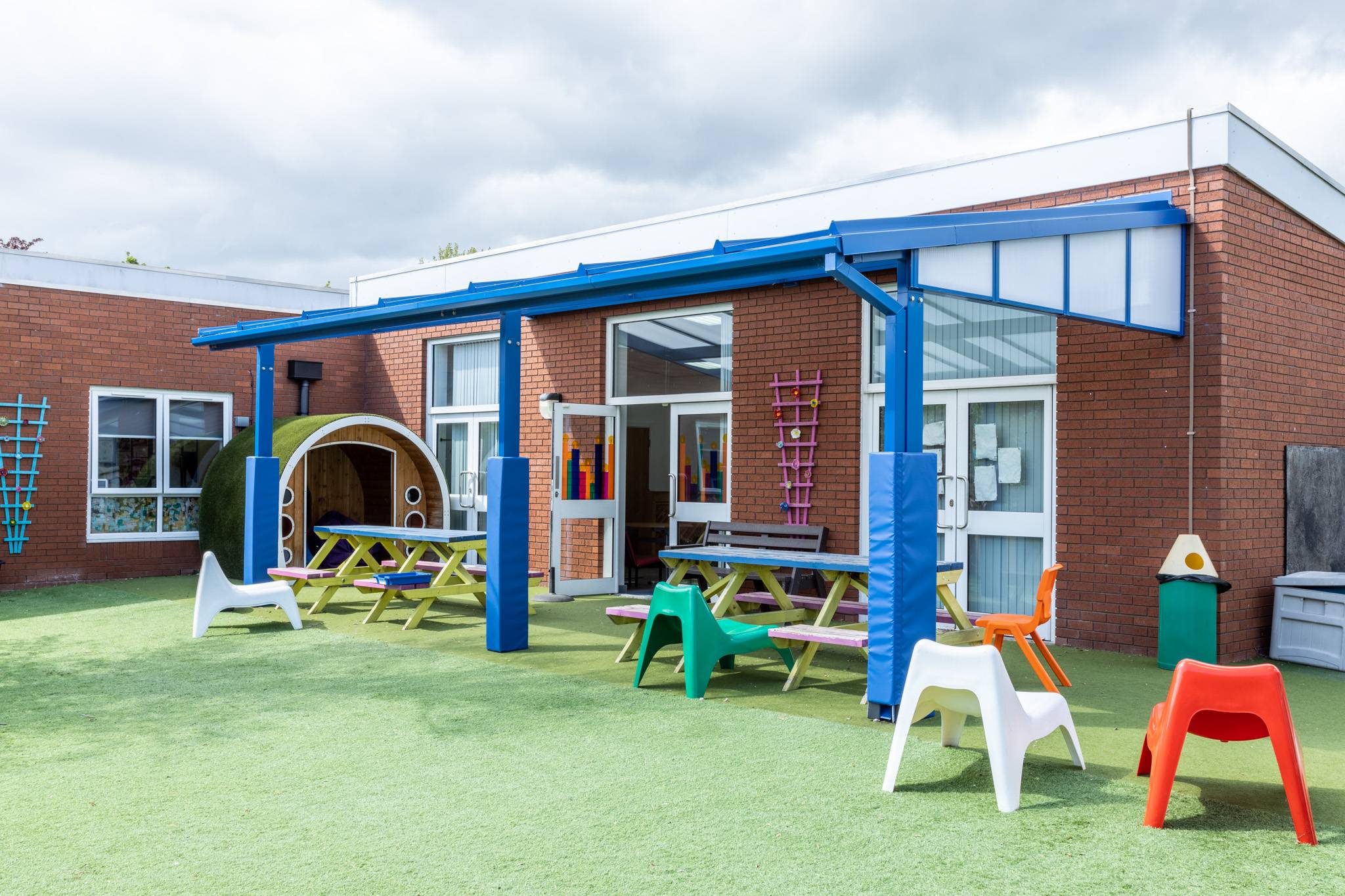

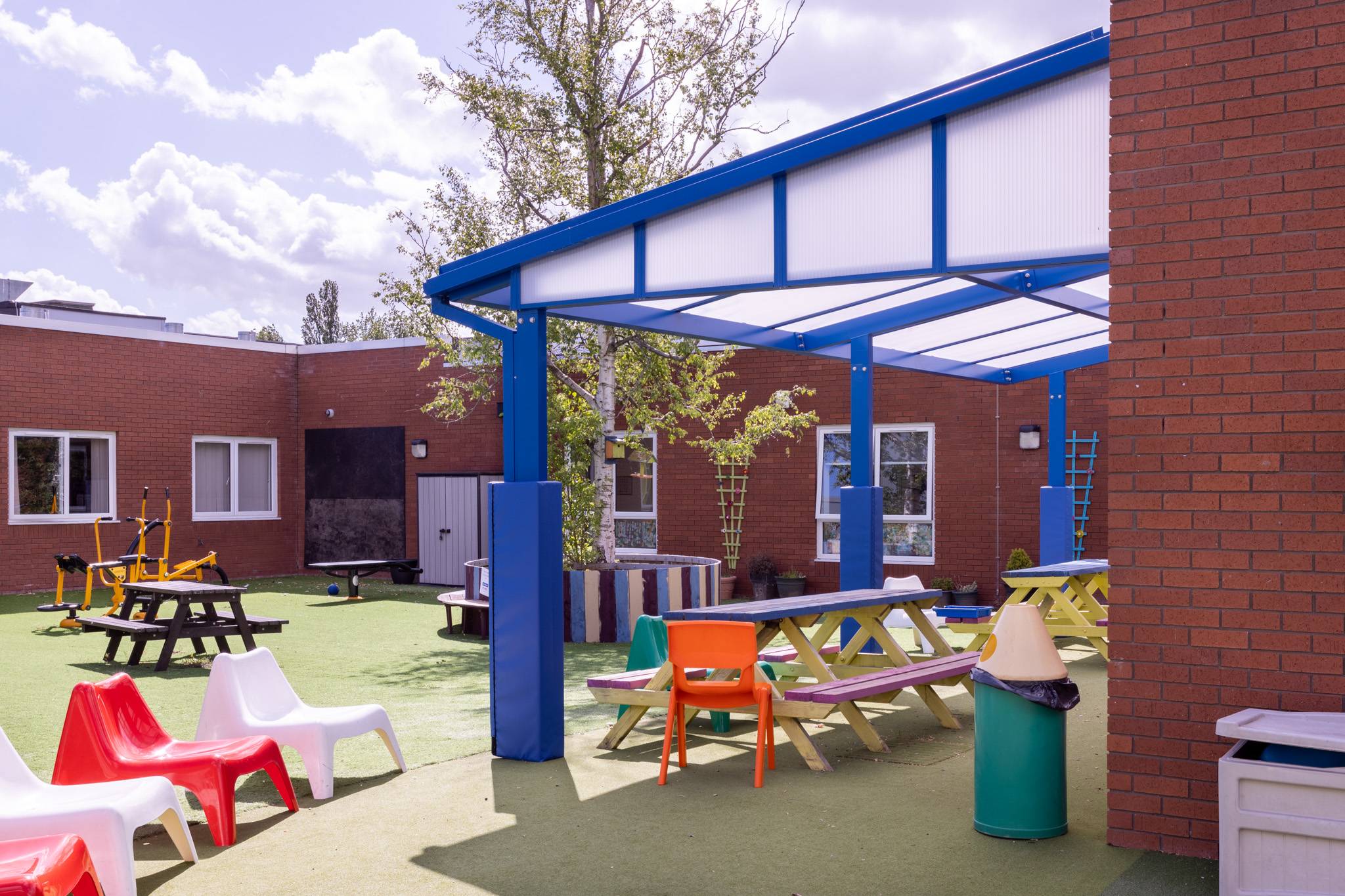

Both canopies have aluminium frames powder coated in blue RAL 5010. As this metal does not rust in use, they will keep their good looks throughout their long life. The structures comprise of Twinfix’s innovative Multi-Link-Panel Non-fragile (NF) roof glazing system fitted with tough 16mm opal multiwall polycarbonate. The NF denotes that these panels conform to the HSE’s recommended drop test ACR[M]001:2019, as recommended by HSG33.

With safety of the students being paramount, protective foam pads were fitted to each supporting post to guard the children from bumps and bangs and anti-climb guttering was also included in the design for both structures.

Not only do the new canopies provide additional safe space for students to play and learn, but it also enabled them to reap the benefits that come with being outdoors.
