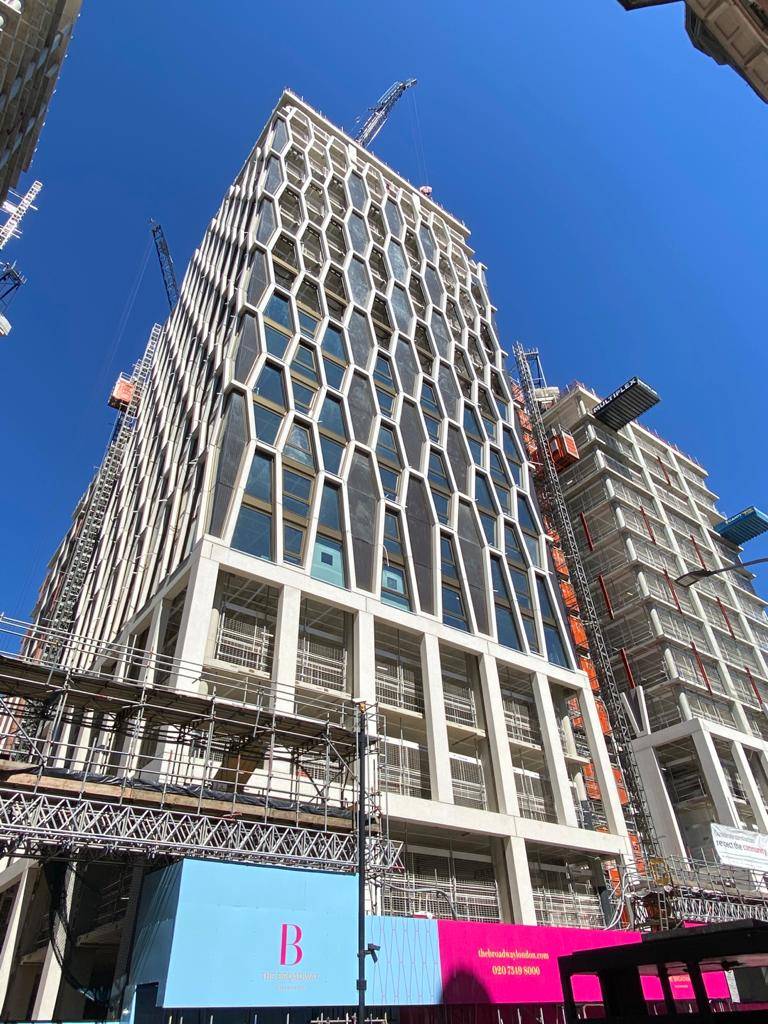

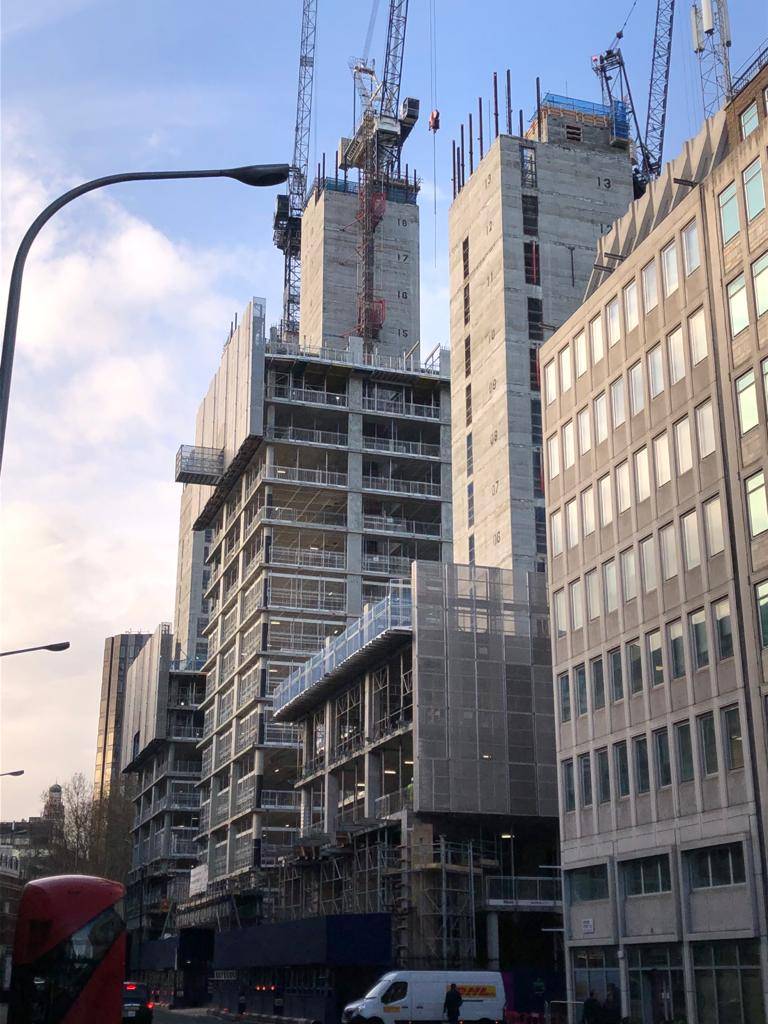

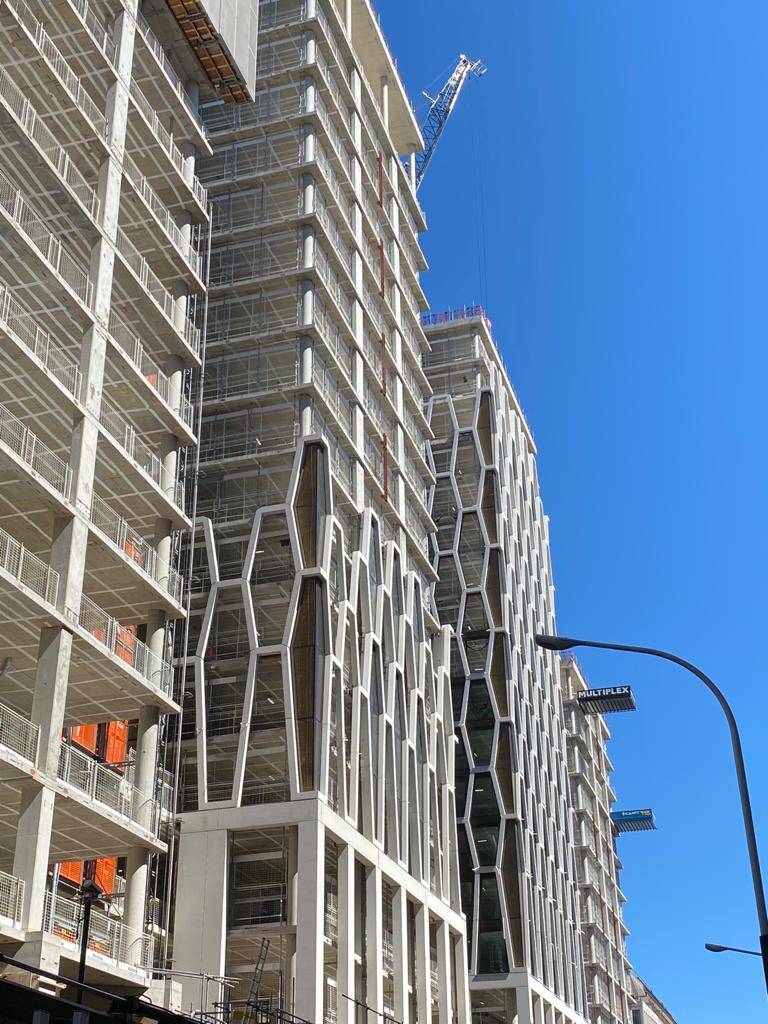

Emseal Colorseal seals joints between precast façade panels at the Broadway Redevelopment In London

OVERVIEW

Client: Northacre

Consultant: Vinci Technology Centre

Main Contractor: Multiplex

Main Product Used: Emseal Colorseal

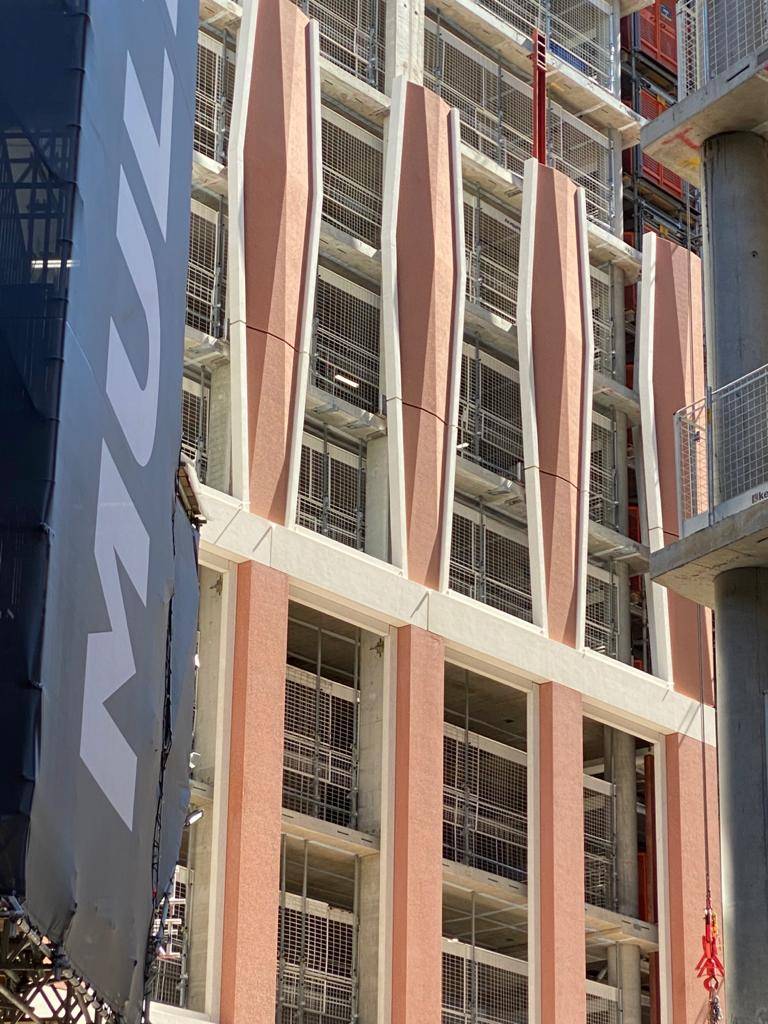

The development of The Broadway creates six buildings on a plan designed to frame views of the Grade-1 listed 55 Broadway across from Victoria Street in Westminster, providing residential, office and retail workspace and a new public space linking Victoria Street with Broadway and Dacre Street. The new building elevations were specifically designed “to reference the local vernacular in the rhythm of facades”, using materials sympathetic to the traditional sandstone and brick of the adjacent historic Conservation Area. The façades and their constituent precast panels were therefore a critical element in the design and construction process, as was ensuring that the joints between them could safely accommodate the anticipated thermal and any other structural movements, whilst always maintaining a watertight seal. This was further complicated by the façade design and necessary construction tolerances, meaning that the joints varied in width, resulting in high joint movement capability demands. A test programme was established with Vinci Testing Houses to determine the most suitable joint solution available to meet these challenges in detail - and the clear winner was Emseal Colorseal. This is a unique, preformed, double-sided, silicone-faced movement joint sealing system, that is bonded in position without invasive metal anchoring. Colorseal is CE-marked and ETA-certified to provide a watertight seal with 100% joint movement capability, thermal insulation, UV stability, and colour coordination with vertical or horizontal substrates.

Products featured in this case study

View all products (6)
Fire Resistant Facade Joints  - Emseal Colorseal-VHE-CE - Watertight movement joint

Fire Resistant Facade Joints - Emseal Colorseal-VHE-CE - Watertight movement joint

More inspiration from NCC – Emseal Movement Joints

View inspiration
Emseal SJS System to Seal Ramp Joints at Trafford House Car Park, Old Trafford, Manchester

Emseal SJS System to Seal Ramp Joints at Trafford House Car Park, Old Trafford, Manchester

Emseal SJS System solves leaking deck expansion joint problems for the Elmsleigh Shopping Centre at
Staines in Middlesex

Emseal SJS System solves leaking deck expansion joint problems for the Elmsleigh Shopping Centre at Staines in Middlesex

Emseal SJS Selected for Wide Deck Joints at Manchester Airport T-2 Multi-Storey Car Park, Manchester

Emseal SJS Selected for Wide Deck Joints at Manchester Airport T-2 Multi-Storey Car Park, Manchester

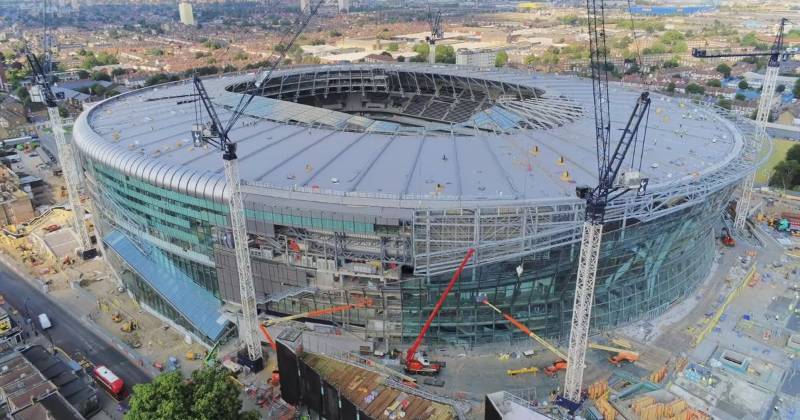

Emshield DFR System was used at the new Tottenham Hotspur Stadium for Fire Resistant Sealing of the High Movement, Wide Structural Movement Joints
