Lancaster University School of Mathematics

OVERVIEW

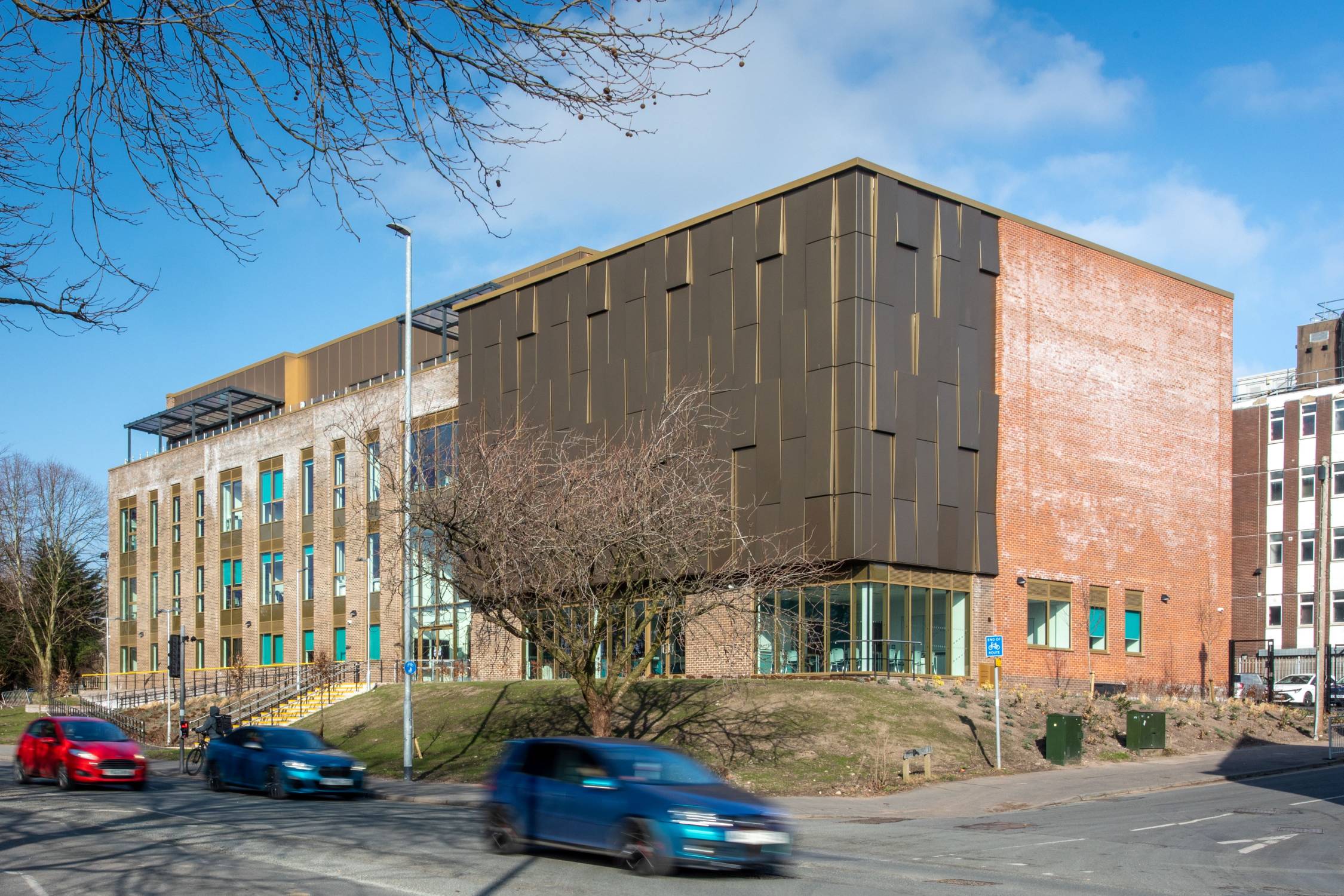

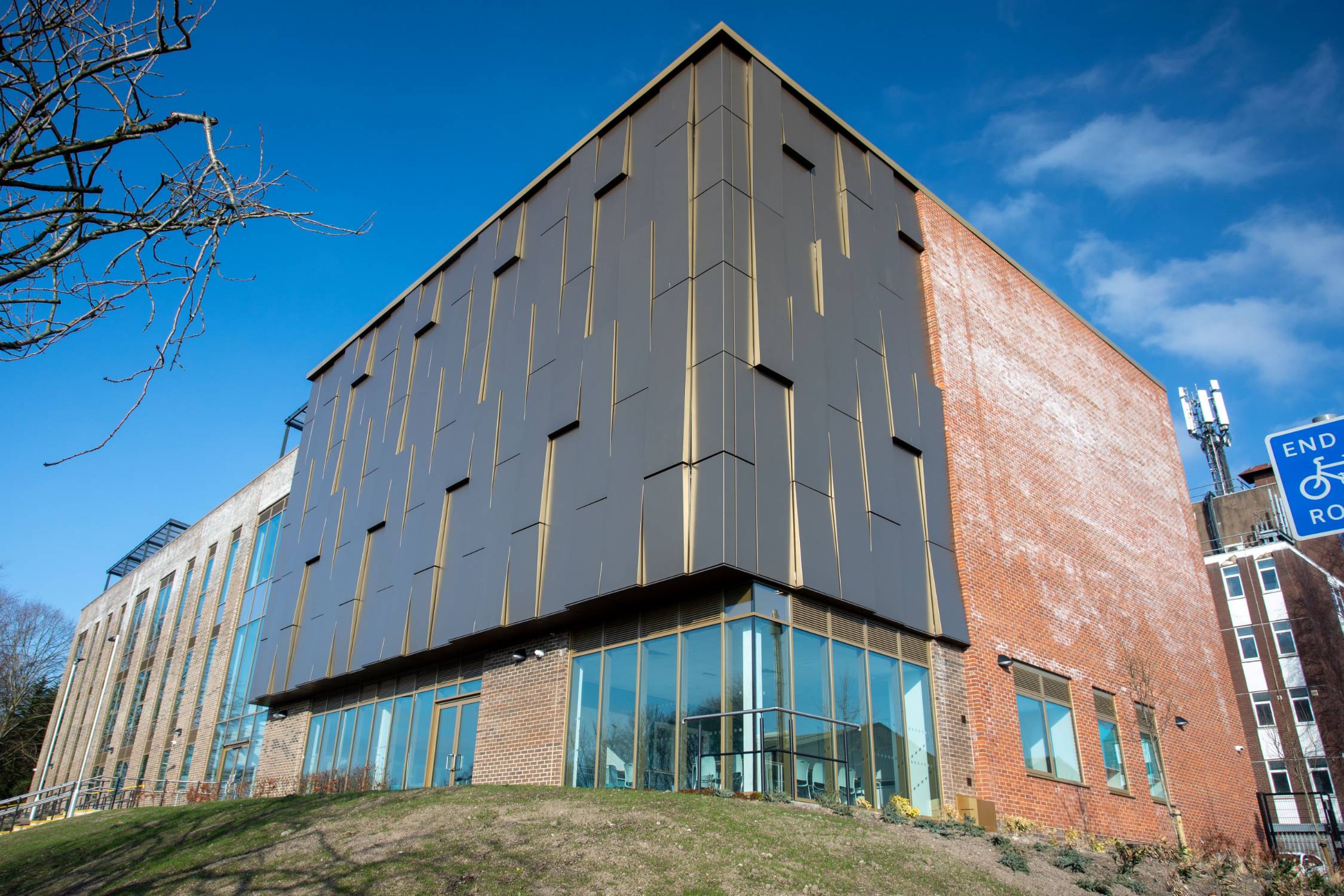

Optima FC+ in 3.0mm Aluminium PPC Interpon D2525 Y2217f has been used in the completion of Lancaster Universtiy's School of Mathematics.

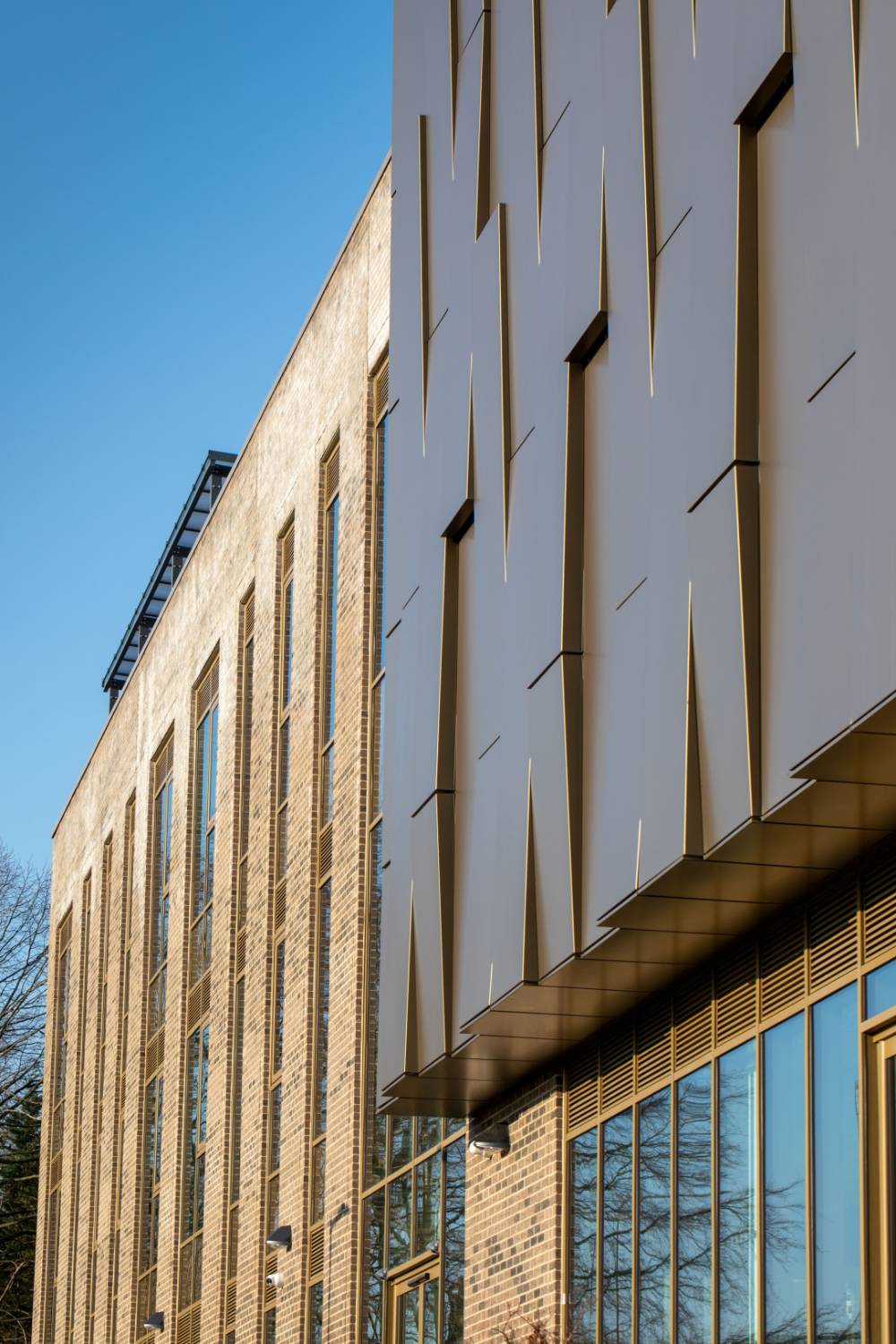

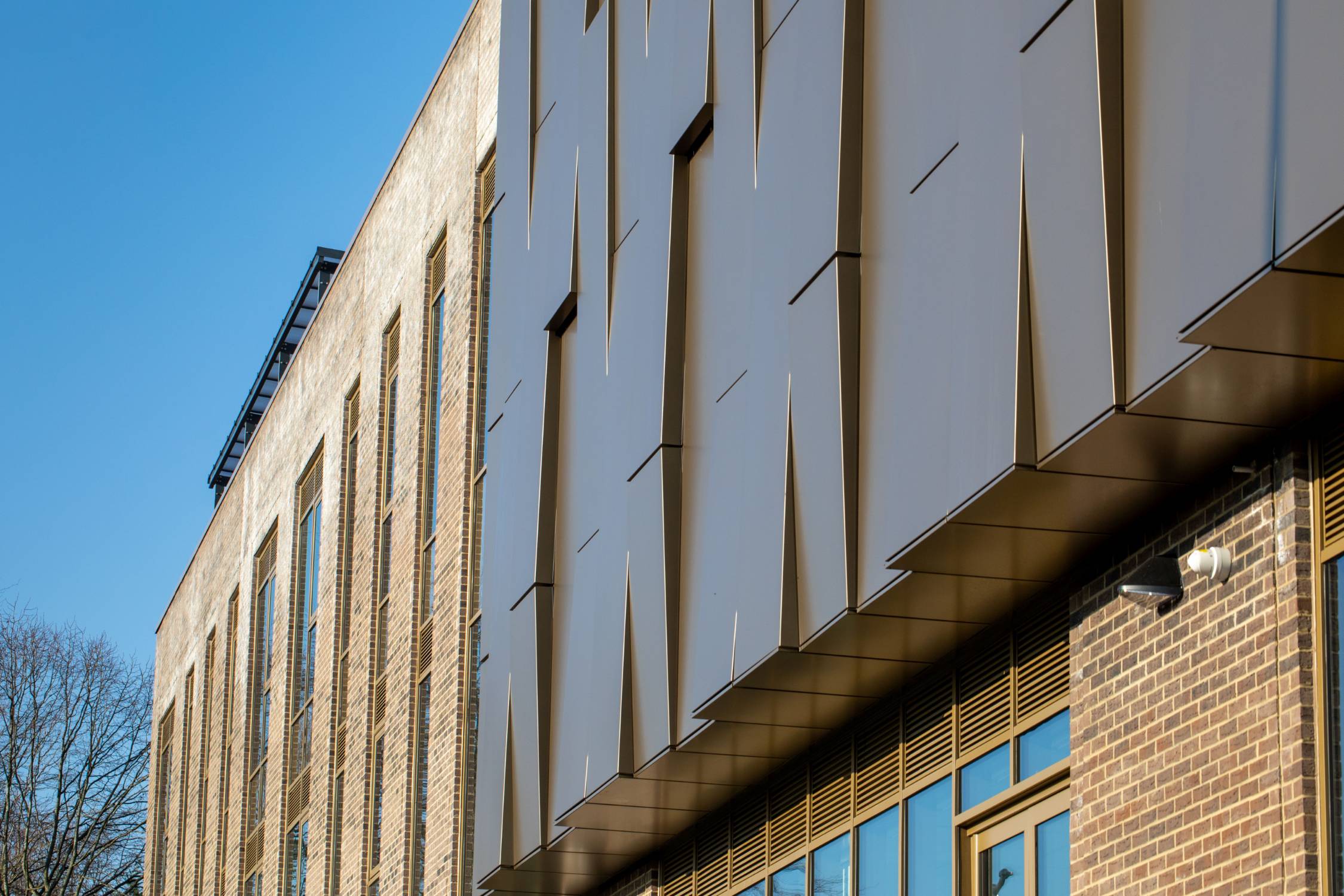

Optima FC+ was specified in order to create the feature `Zig-Zag` pattern. The expert team at Sotech manufactured multiple panel depths, engaging with carrier rails set to irregular angles to create the architect’s vision.


The four story building included a rooftop terraced area for students to relax and study, has a unique and iconic look, making it an immediate landmark for people travelling into Preston City Centre. Lancaster University School of Mathematics (LUSoM) is a specialist school that will deliver world-class mathematics education for 16 to 18 year-olds.


Optima FC+ is an evolution of Sotech’s original secret fix hook on rainsreen. Featuring an innovative slide and lock adjustment mechanism, the rainscreen system now features carrier rail hooks, which can be locked in position on site by installers, rather than in the factory, leading to significantly reduced lead times for all parties. Its versatility is such that a multitude of materials and thicknesses (from 2.0mm to 4mm) used on one universal carrier.


Optima FC+ has been fire tested to BS8414-2:2015, and classified to BR135 for high rise buildings. A full range of Euroclass A1 and A2 – s1,d0 panel materials from 2mm – 4mm are available. Mechanical fixing methods and no use of adhesives, providing true A1 and A2 cladding systems.


TESTIMONIALS

Jamie Brown, Estimator at Sotech, noted: “This was an extremely difficult layout to accommodate onsite. Early-stage discussions ensured that all queries were actioned before the design commenced to ensure a streamline process of transferring information. The team at Saxon Contracting have done a fantastic job in bringing the concept to life!”


Naveen Sandhu, UK and Ireland Specification Manager: “A distinct tapered cladding design needed to be complemented with a finish equally befitting it. The Pozzoni team wanted to replicate the look and feel of anodised aluminium but without the associated practical pains. They identified our D2525 Anodic Collection as the perfect solution, proposing a sleek metallic bronze finish, offering strong depth and naturality to the aluminium surface. D2525 Anodic boasts a strong track record in decorating a wide array of higher education establishments which instilled future confidence with the end client.”


Lee Banks, Design Manager at Saxon Contracting: “The secret fix panels on this project needed to be completely bespoke to the Optima FC+ standard details, working with the Sotech team they highlighted any production issues early in the design which avoided any un-necessary re-design work or unsightly site fixes. The complexity in the setting out and the majority of time taken building this project is hidden behind the panels with the support bracketry so the site team deserve a special mention for their expertise.”
