Pendock metal pipe boxing covers and protects pipework

OVERVIEW

When concealing external pipework, building services and utilities associated with low carbon district heating schemes or air-source and ground-source heat pumps, Pendock metal pipe boxing range provides effective protection against accidental damage while helping improve project aesthetics.

Bespoke manufactured to the individual project specifications from 2mm aluminium, as standard, metal boxing is available in two styles. CHM is a three-sided channel profile, for securing to a single flat surface, while the MXM is a two-sided 90-degree design for fixing to adjacent surfaces, such as walls and ceilings.

Both profiles are available with two fixing options for increased versatility – EFF profiles have an integrated external flange on each edge, enabling them to be readily secured with suitable fasteners, while IFA profiles are designed to be installed using separate, concealed fixing angles and fasteners.

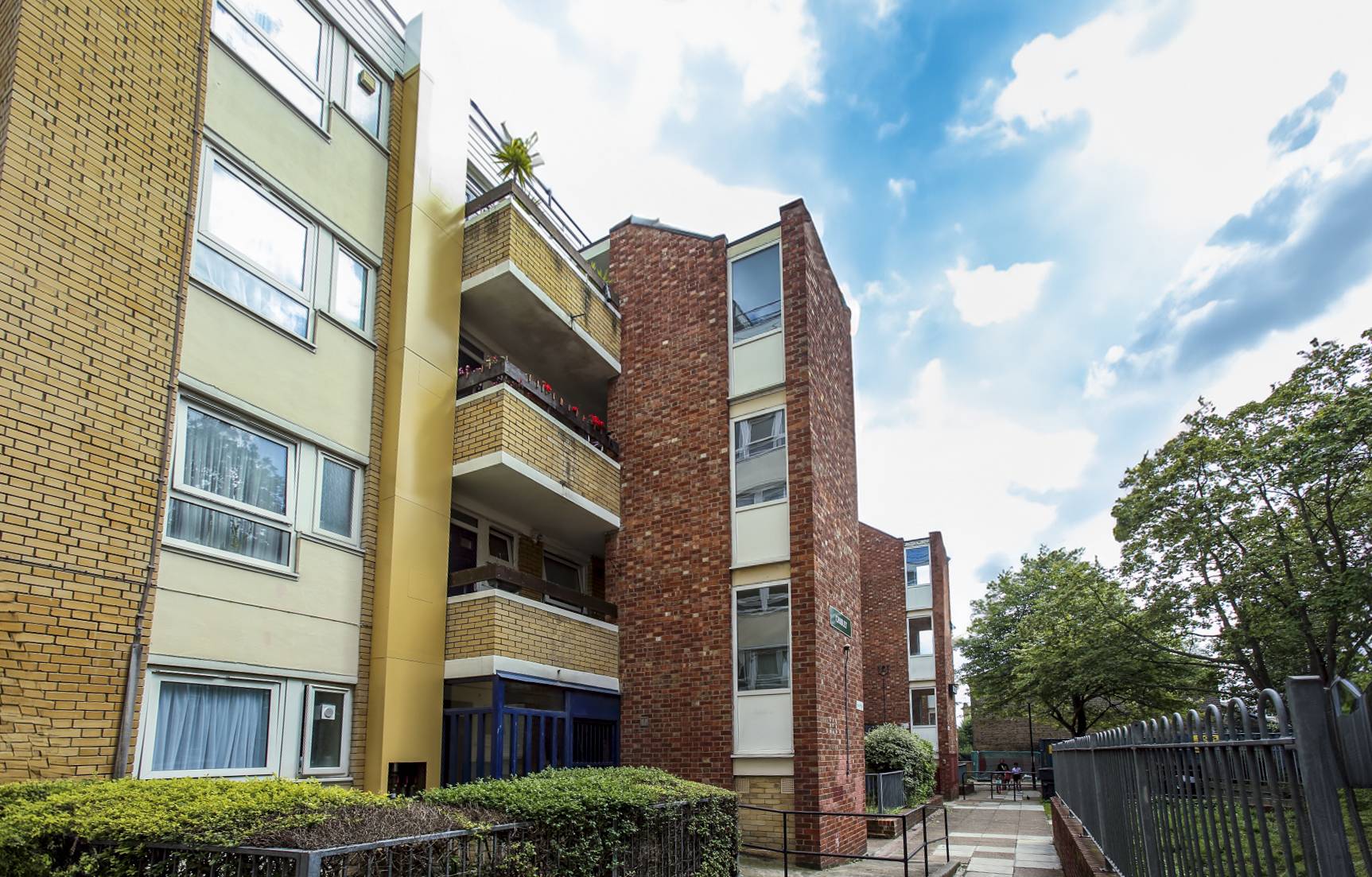

CHM and MXM profiles are also used to conceal fire sprinkler supply pipework mounted in open balconies, or externally to flats, to provide added security and weather resistance. In addition, as metal boxing is non-combustible, it is used in high rise residential blocks to conceal interior sprinkler pipework where no sprinkler heads are present, such as communal areas.

Usually supplied with a PPC finish, which can be selected from any RAL colour to blend in or contrast with the surroundings, Pendock’s metal boxing profiles are available in lengths of up to 4.0 metres, as standard. Other lengths and material thicknesses are available on request, as well as options to include perforations and hinged access hatches.

A range of dedicated accessories is included within the CHM and MXM metal boxing range, which includes internal and external corners, stop ends and joint covers, as well as fixing angles, access panels and TEK fixings, which can be colour coded if required.

Pendock metal boxing is part the extensive Profiles range of pipe boxing and casings, which includes pre-formed plywood pipe and fire sprinkler boxing, as well as boiler pipe casings. A range of technical information is available online including PDF and DWG drawings as well as NBS specification clauses.
