Question of Scale: 400mm Elliptical Blade with 6m Span

OVERVIEW

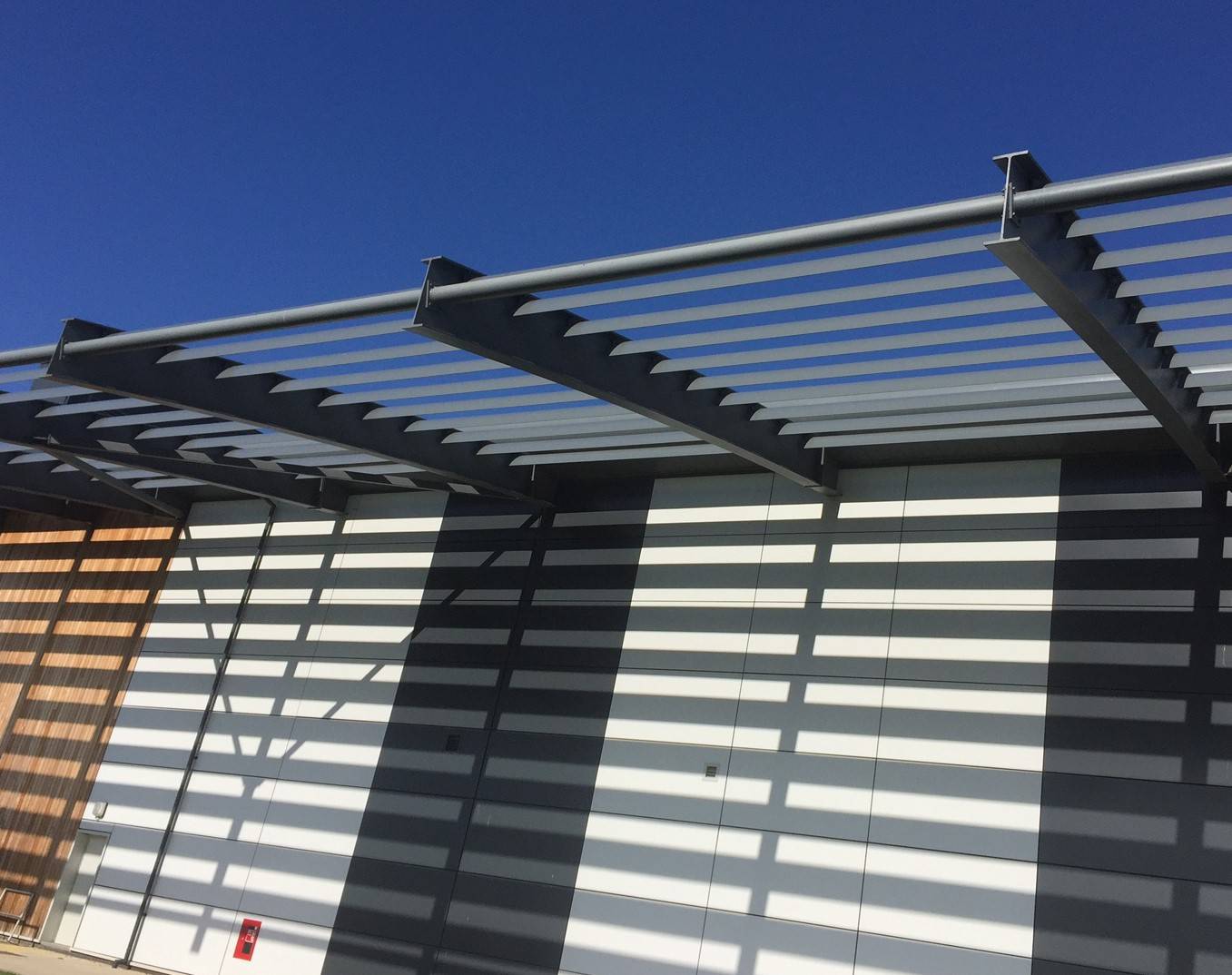

The steel beams are 1000mm deep: The elliptical aluminium solar shade blades are 400mm and the blades span up to 5700mm. The exit door on the bottom left illustrates the scale of the installation. Replacement solar shade system designed and manufactured by Dales Fabrications Limited and installed by Roweaver Developments Ltd

Products featured in this case study

View all products (66)

Aluminium Brise Soleil - Solar Shading: Shadex 400 Vertical Stack - Brise Soleil

Aluminium Brise Soleil - Solar Shading: Shadex 400 Vertical Stack - Brise Soleil
