Type 100SE - Radiation Protection

OVERVIEW

As business evolves and requirements change in our fast-paced world, London Wall Design continue to bring ground breaking, intuitive products to the industry and pride ourselves in being able to create unique and bespoke systems for all our clients, whatever the application. One of our latest projects which has been installed and tested has made us particularly proud and set a new standard in acoustic movable walls.

The requirements on this project were clear and simple with very specific needs for one of the leading pharmaceutical companies and we were going to tackle it head on. A movable acoustic wall with radiation protection for a research and testing environment needing to maximise flexibility while still offering the safety and protection required in a radiology environment.

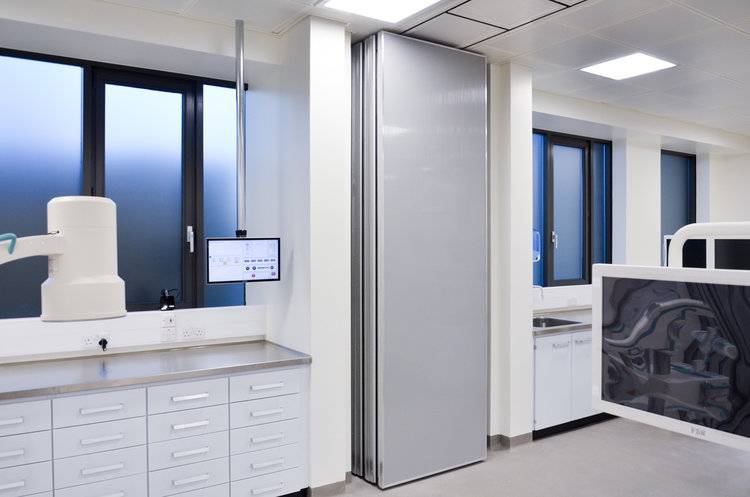

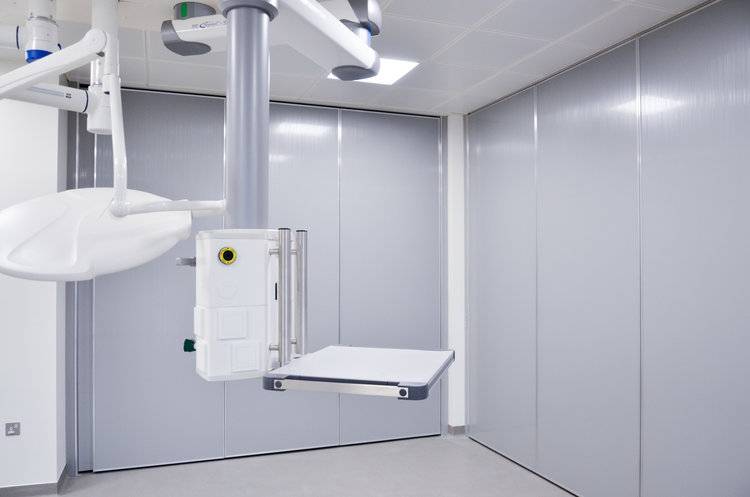

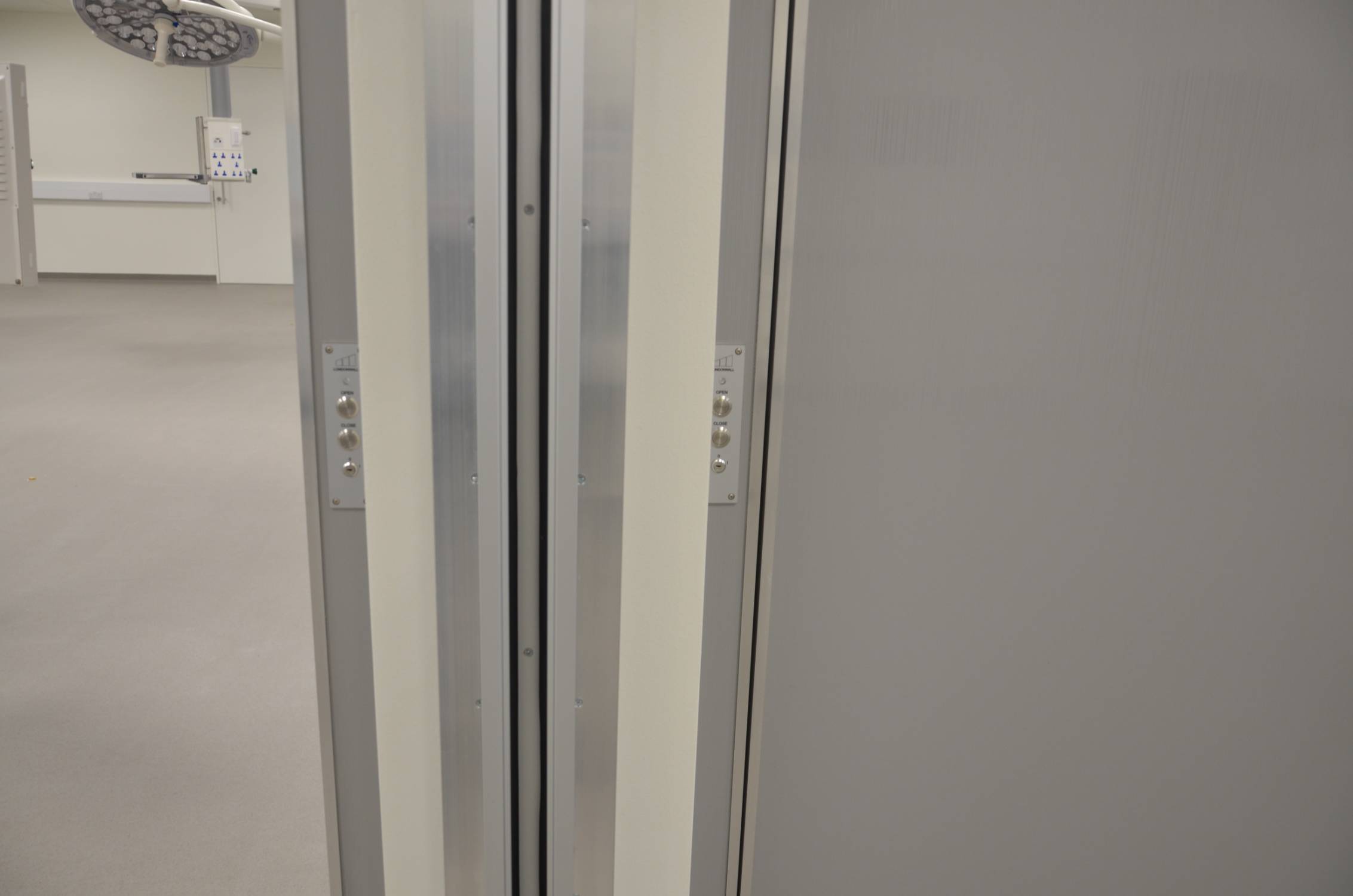

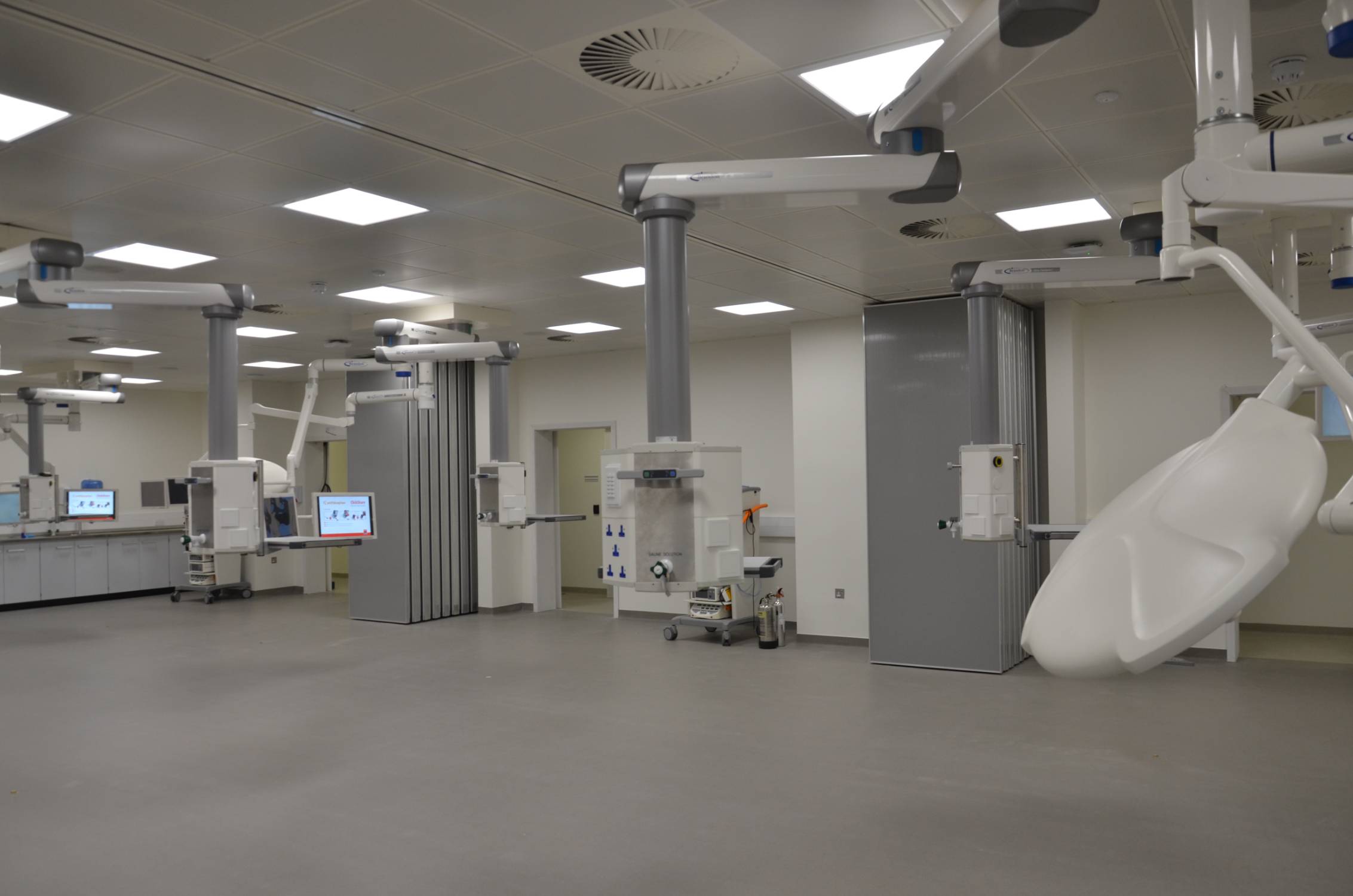

Our Type 100SE semi-electrically operated movable wall was developed and tailor-made for this requirement; with X-Ray protection and specialised seals to ensure the ground-breaking radiation protection and acoustic levels would be achieved. Each wall weighed in the region of circa 6 tons and the top hung system was fitted with our Type “K“ track which allows for remote and varied stacking locations. The walls varied in width and height but were all finished in Rigato Formica laminate with aluminium protective edge trims. The vision panels in the pass doors were fitted with Med-X type single glazed glass between two layers of 4mm thick toughened glass.


Products featured in this case study

View all products (9)
Type 100 movable acoustic wall

Type 100 movable acoustic wall
