Gypsum board partition systems
Find and specify gypsum board partition systems from top manufacturers with NBS Source. Browse 912 products that are ready to use on your projects. Classification Ss_25_10_30_35.
Can't find what you're looking for?
Industry averages:BETA
Recently verified
Showing 865-900 of 912
GypWall Shaft - G306036 (A) (EN)
Verified 6 months ago
British Gypsum

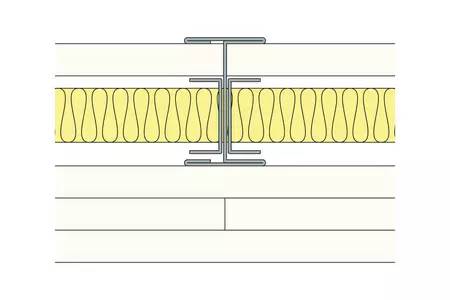

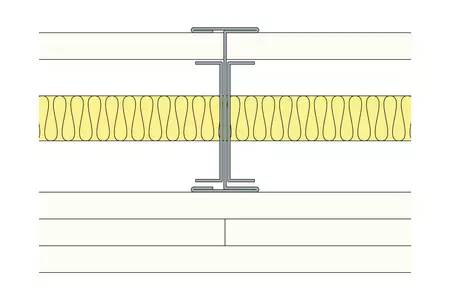

Gypframe 92 I 90 ‘I’ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G105 Retaining Channel. Three layers of Glasroc F FireCase 15mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.
GypWall Shaft - A306036 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 92 I 90 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G105 Retaining Channel. Three layers of Gyproc FireLine 15mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 5000mm.
GypWall Shaft - G306035 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 60 I 70 ‘I’ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G102 Retaining Channel. Three layers of Glasroc F FireCase 15mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4500mm.
GypWall Shaft - G306006 (A) (EN)
Verified 6 months ago
British Gypsum
Gypframe 92 I 90 ‘I’ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G105 Retaining Channel. Two layers of Glasroc F FireCase 15mm to non-shaft side. For heights up to 4200mm.
GypWall Single Frame - A206233 (EN)
Verified 6 months ago
British Gypsum

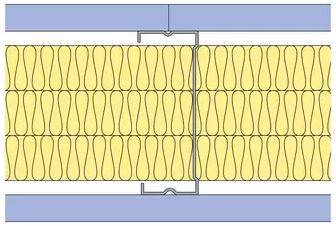

One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. Three layers of 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame - A206179 (EN)
Verified 6 months ago
British Gypsum

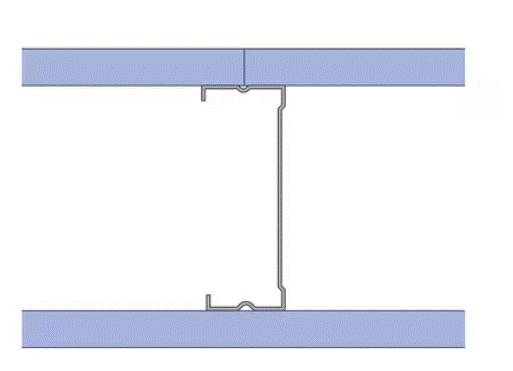

Two layers of Gyproc SoundBloc 15mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres. For heights up to 4000mm.
GypWall Resilient - A316018 (A) (EN)
Verified 6 months ago
British Gypsum

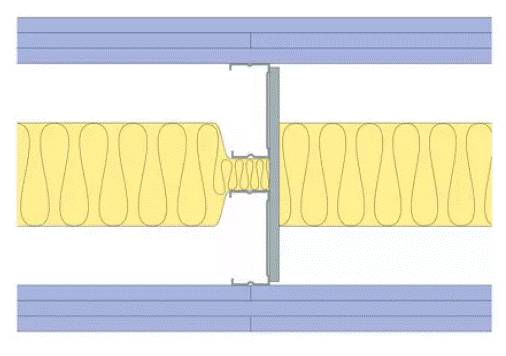

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres with Gypframe RB1 Resilient Bar at 600mm centres to both sides. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.
GypWall Shaft - L306002 (EN)
Verified 6 months ago
British Gypsum

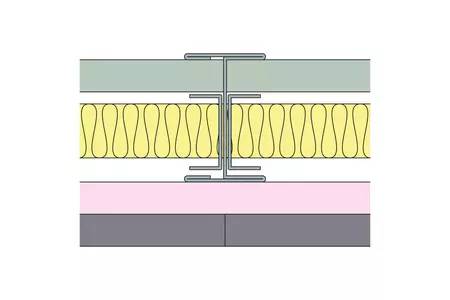

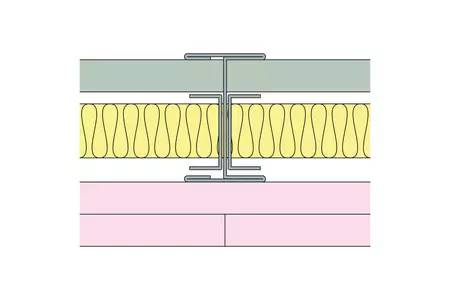

Gypframe 60 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G102 Retaining Channel. Inner layer of Gyproc FireLine 12.5mm with an outer layer of Gyproc Habito 12.5mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 3000mm.
GypWall Shaft - A306039 (A) (EN)
Verified 6 months ago
British Gypsum
Gypframe 70 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G110 Retaining Channel. Two layers of Gyproc FireLine 12.5mm to non-shaft side. For heights up to 4200mm.
GypWall Shaft - G306003 (B) (EN)
Verified 6 months ago
British Gypsum
Gypframe 60 I 70 ‘I’ Studs at 600mm centres with Glasroc F FireCase 20mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Glasroc F FireCase 15mm to non-shaft side. For heights up to 4500mm.
GypWall Shaft - A306023 (A) (EN)
Verified 6 months ago
British Gypsum
Gypframe 60 I 70 ‘I’ Studs at 600mm centres with Gyproc CoreBoard 19mm between studs, secured by Gypframe G102 Retaining Channel. Two layers of Gyproc FireLine 15mm to non-shaft side and 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.
GypWall Single Frame - A206261 (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc SoundBloc 15mm each side of Gypframe 92 S 50 'C' Studs at 600mm centres. For heights up to 4000mm.
GypWall Single Frame - A206230 (EN)
Verified 6 months ago
British Gypsum

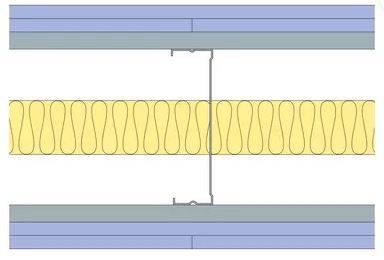

Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Resilient - A316016 (A) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc SoundBloc 12.5mm each side of Gypframe 146 S 50 'C' Studs at 600mm centres with Gypframe RB1 Resilient Bar at 600mm centres to one side. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4200mm.
GypWall Twin Frame Braced - A216010S (B) (EN)
Verified 6 months ago
British Gypsum
Two layers of Gyproc FireLine 15mm fixed to outside faces of two Gypframe 48 S 50 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 1200mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 5000mm.
GypWall Single Frame Enhanced - Q606066S (EN)
Verified 6 months ago
British Gypsum
One layer of Gyproc DuraLine 15mm each side of Gypframe 70 S 50 'C' Studs at 600mm centres. 75mm Isover Acoustic Slab in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 3800mm.
GypWall Single Frame Enhanced - X606A006 (EN)
Verified 6 months ago
British Gypsum

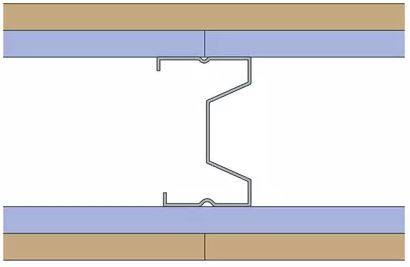

Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Rigidur H 12.5mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
GypWall Single Frame Enhanced - Q606A063S (EN)
Verified 6 months ago
British Gypsum

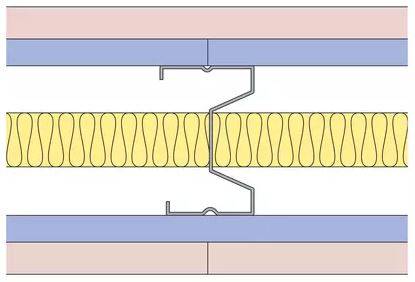

Inner layer of Gyproc SoundBloc 12.5mm with an outer layer of Gyproc DuraLine 15mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity with 2mm Thistle MultiFinish on each side. For heights up to 3000mm.
GypWall Twin Frame Audio - A326003A (A) (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc Plank 19mm with an outer layer of Gyproc SoundBloc 12.5mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 4200mm.
GypWall Single Frame Enhanced - X606018 (EN)
Verified 6 months ago
British Gypsum

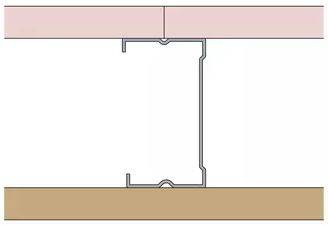

One layer of Gyproc DuraLine 15mm one side and one layer of Rigidur H 15mm the other side of Gypframe 70 S 60 'C' Studs at 600mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 4000mm.
GypWall Single Frame Enhanced - X606A005 (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc WallBoard 15mm with an outer layer of Rigidur H 12.5mm each side of Gypframe 70 AS 50 AcouStuds at 600mm centres. For heights up to 4000mm.
GypWall Staggered - A233028 (B) (EN)
Verified 6 months ago
British Gypsum

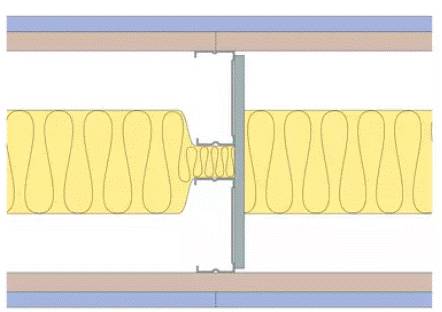

Two layers of Gyproc SoundBloc 15mm each side of Gypframe 92 I 90 ‘I’ Studs in Gypframe 148 DC 60 Deep Flange Floor & Ceiling Channel. Gypframe SC2 Spacer Clips and alternate studs staggered in the channel at 300mm centres. 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity. For heights up to 5000mm.
GypWall Twin Frame Audio - A326017B (A) (EN)
Verified 6 months ago
British Gypsum

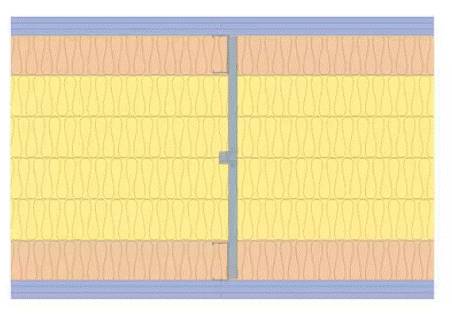

Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Four layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 4200mm.
GypWall Twin Frame Audio - A326018B (C) (EN)
Verified 6 months ago
British Gypsum

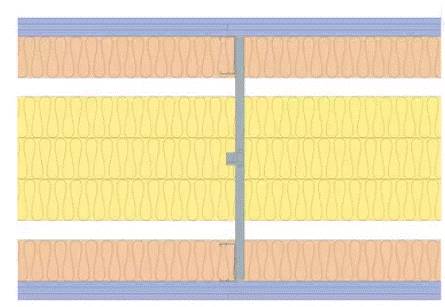

Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Three layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 9100mm.
GypWall Twin Frame Audio - A326018B (B) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Three layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 8000mm.
GypWall Twin Frame Audio - A326018B (A) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe GAB3 Acoustic Braces at 3300mm centres. Three layers of 100mm Isover Cladding Roll 40 and two layers of 100mm stone mineral wool (min. 62kg/m3) in the cavity. For heights up to 4200mm.
GypWall Twin Frame Audio - A326003A (B) (EN)
Verified 6 months ago
British Gypsum
Inner layer of Gyproc Plank 19mm with an outer layer of Gyproc SoundBloc 12.5mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 5000mm.
GypWall Twin Frame Audio - A326016A (C) (EN)
Verified 6 months ago
British Gypsum
Three layers of Gyproc SoundBloc 15mm fixed to outside faces of two Gypframe 92 S 10 ‘C’ Stud frameworks with studs at 600mm centres, cross braced using Gypframe 99 FC 50 Fixing Channel at 3600mm centres. 100mm Isover Cladding Roll 40 in the cavity. For heights up to 9000mm.
TRADELINE Single Frame Partition Systems Utilising Siniat Megadeco/ Universal
Verified 6 months ago
Metsec (voestalpine Metsec)
An economical friction-fit system to assemble frames for strong, compact and lightweight non-load‑bearing partition.
TRADELINE Single Frame Partition Systems Utilising British Gypsum WallBoard
Verified 6 months ago
Metsec (voestalpine Metsec)
An economical friction-fit system to assemble frames for strong, compact and lightweight non-load‑bearing partition.
TRADELINE Single Frame Resilient Bar Partition Systems Utilising Siniat Board
Verified 6 months ago
Metsec (voestalpine Metsec)
TRADELINE Resilient Bar partitions are non-load bearing that achieves high levels of sound insulation.
TRADELINE Single Frame Partition Systems Utilising Siniat Fire Board
Verified 6 months ago
Metsec (voestalpine Metsec)
An economical friction-fit system to assemble frames for strong, compact and lightweight non-load‑bearing partition.
TRADELINE Single Frame Partition Systems Utilising Knauf Fire Panel
Verified 6 months ago
Metsec (voestalpine Metsec)
An economical friction-fit system to assemble frames for strong, compact and lightweight non-load‑bearing partition.
TRADELINE Twin Frame Braced C Stud Partition Systems Utilising Siniat Board
Verified 6 months ago
Metsec (voestalpine Metsec)
Twin Frame Braced C Stud Plasterboard partition system.
TRADELINE Single Frame Resilient Bar Partition Systems Utilising Knauf Board
Verified 6 months ago
Metsec (voestalpine Metsec)
TRADELINE Resilient Bar partitions are non-load bearing that achieves high levels of sound insulation.
TRADELINE Single Frame Partition Systems Utilising Knauf Performance Plus
Verified 6 months ago
Metsec (voestalpine Metsec)
An economical friction-fit system to assemble frames for strong, compact and lightweight non load‑bearing partition.
Showing 865-900 of 912
