Summary

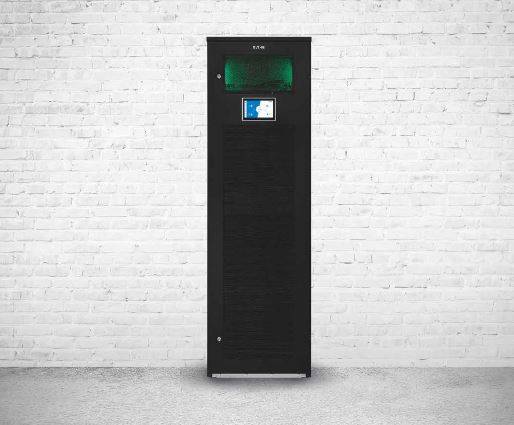

All-in-one single rack energy storage system.
Color
Black
-
-
Finish
Gloss
-
-
Material
Metal
-
-
Shape
Rectangle
-
-
Length
1000 mm
-
-
Width
600 mm
-
-
Height
1987 mm
-
-
Warranty description
Five year, Ten year
-
-
Specification
Standards
To IEC 62619, IEC 62040-1, IEC 62477-1 and UN 38.3.
-
-
Safety
To IEC 62040-1 and IEC 62477-1.
-
-
Grid connection
To EN 50549-1, VDE-AR-N 4105:2018, CEI 0-21:2019, G99.
-
-
Architecture
Grid connected with local renewable generation sources.
-
-
Integration with other systems
Solar PV generation.
-
-
Configuration
Packaged.
-
-
Mode
d.c. coupled.
-
-
Controller
-
-
-
Control functions
Load shifting.
-
-
Communications
Modbus TCP/IP port.
-
-
Visual indication
LCD screen.
-
-
Inverter
-
-
-
Capacity
20–40 kW.
-
-
Protection
Surge protection.
-
-
Total harmonic distortion (THD)
<1.5% (100% linear load); <3.5% (100% non-linear load).
-
-
Batteries
-
-
-
Capacity
-
-
-
Nominal
4.20 kWh.
-
-
Depth of discharge (DoD)
100%.
-
-
Location
Battery shelving racks.
-
-
Type
Lithium manganese oxide (LiMn₂O₄ or LMO).
-
-
Service conditions
Maximum 60 dB at 100% load.
-
-
Enclosure
-
-
-
Finish
Painted.
-
-
Colour
Black, RAL 9005.
-
-
Ingress protection (minimum)
To BS EN 60529, IP20.
-
-
Additional properties
Power output
20 kW.
-
-
Input current
380 V, 32 A.
400 V, 30 A.
415 V, 29 A.
400 V, 30 A.
415 V, 29 A.
-
-
Input voltage
220-400 V.
-
-
Operating voltage
370–503.7 V d.c.
-
-
Current
132 A.
-
-
Rated frequency
40–72 Hz (rated input frequency tolerance).
50–60 Hz, (total voltage harmonic distortion, can be configured).
50–60 Hz, (total voltage harmonic distortion, can be configured).
-
-
Battery capacity
21 kWh per string, up to 3 strings.
-
-
Modules
One power module.
-
-
Operating temperature range
0°C to +35°C.
-
-
RelativeHumidity
5–95% (non-condensing).
-
-
Load
<3% (resistive load).
<4% (non-linear load).
<4% (non-linear load).
-
-
Dimensions
600 x 1000 x 1987 mm.
-
-
Weight
690–725 kg.
-
-
Sustainability data
Country of product manufacture
Switzerland
-
-
Material
Metal
-
-
Expected Life
Ten year
-
-
