Summary

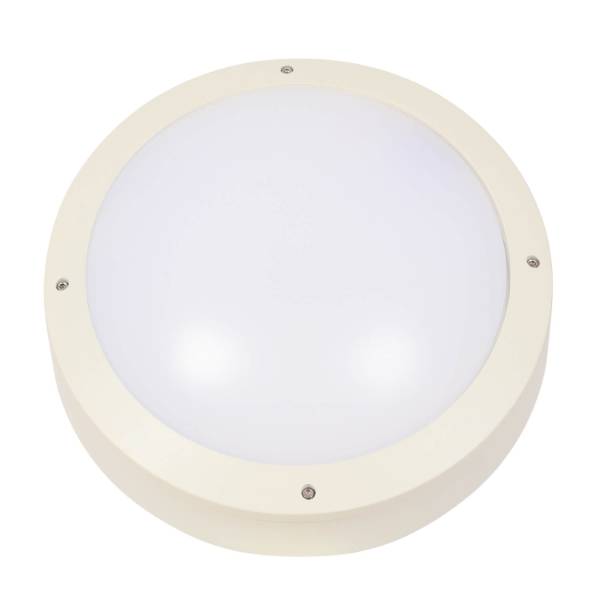

LED emergency bulkhead light, IP65 rated, available mains or battery operated.
Color
Black, White, Grey, Silver
-
-
Finish
Powder-coated
-
-
Material
Steel, Polycarbonate
-
-
Shape
Circle
-
-
Length
360 mm
-
-
Width
360 mm
-
-
Height
145 mm
-
-
Warranty description
Five year
-
-
Specification
Standards
To BS EN 60598-2-22.
-
-
Luminaire description
Circular luminaire.
-
-
Classification
-
-
-
Ingress protection (minimum)
IP65.
-
-
Circumstances of use
Rough service.
-
-
Type
X.
-
-
Mode of operation
2.
-
-
Facilities
AG., AFG.
-
-
Duration of emergency mode (minimum)
180.
-
-
Rated maximum ambient temperature
40°C.
-
-
Impact protection (minimum)
IK10.
-
-
Controlgear position
Integral within luminaire.
-
-
Nominal voltage
220–240 V a.c.
-
-
LED luminaires
-
-
-
Initial LED luminaire efficacy (minimum)
1945 lm.
-
-
Wattage
1.2–21 W.
-
-
Colour temperature
4000 K.
-
-
Additional properties
Type
Lithium iron phosphate battery powered.
-
-
Finish
White.
-
-
Testing
DALI® - CBKLEDS-DALI., Zoneworks® - CBKLEDS-HVG.
-
-
Capacity
6400 mAh.
-
-
Weight
4.5 kg.
-
-
Sustainability data
Material
Steel, Polycarbonate
-
-
Expected Life
Ten year
-
-
