Summary
Real wood veneer flush fronted toilet cubical system available in 11 different veneers and choice of traditional or pivot hinge systems.
Real wood veneer flush fronted toilet cubical system available in 11 different veneers and choice of traditional or pivot hinge systems.
Application
Suitable for washroom applications with low to medium traffic.
Suitable for washroom applications with low to medium traffic.
Description
Real wood veneer toilet cubical system.
Features and benefits:
- Available in 11 different veneers.
- 44mm MDF core faced and backed with Real Wood Veneer.
- Rebated doors and pilasters for a flush fronted design.
- Choice of traditional or pivot hinge systems.
- Discreet wall channel fixings.
- Additional five material options available: glass, solid surface, ColourCoat, ColourCoat high gloss and high pressure laminate (HPL).
Real wood veneer toilet cubical system.
Features and benefits:
- Available in 11 different veneers.
- 44mm MDF core faced and backed with Real Wood Veneer.
- Rebated doors and pilasters for a flush fronted design.
- Choice of traditional or pivot hinge systems.
- Discreet wall channel fixings.
- Additional five material options available: glass, solid surface, ColourCoat, ColourCoat high gloss and high pressure laminate (HPL).
Color
Other
Other
Finish
Anodized, Powder-coated, Veneered
Anodized, Powder-coated, Veneered
Material
Wood, Medium density fibreboard (MDF)
Wood, Medium density fibreboard (MDF)
Shape
Rectangle, Square
Rectangle, Square
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Warranty description
Ten year
Ten year
Specification
Classification data
Panels
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
Panel supports
Satin anodized aluminium floor blocks.
-
Pilasters
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
Doors
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
44 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
Hardware
Hydraulic ball-bearing, self-closing and dampened stainless steel pivot hinge system.
Stainless steel mortice lock.
Indicator bolt with circular face plate and lever.
-
Panel supports
-
Satin anodized aluminium floor and ceiling blocks., White powder-coated aluminium floor and ceiling blocks.
Hardware
-

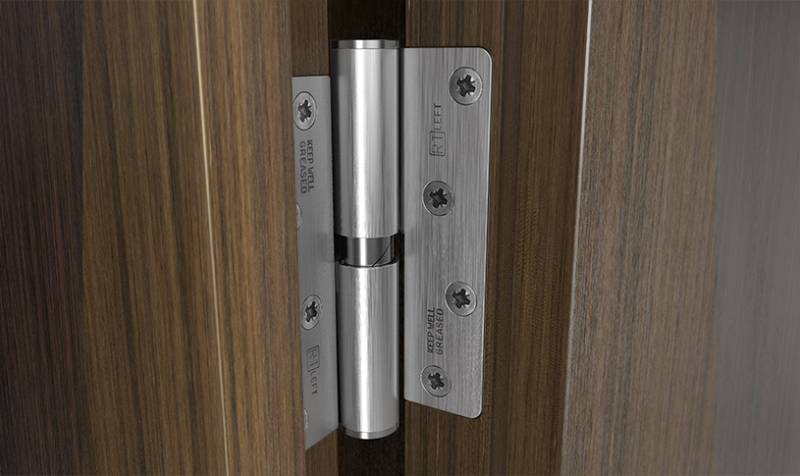

100 mm stainless steel hinge.
Stainless steel mortice lock.
Indicator bolt with circular face plate and lever.
Additional properties
Partition
25 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
25 mm MDF core faced and backed with 0.6 mm Real Wood Veneer.
Headrail

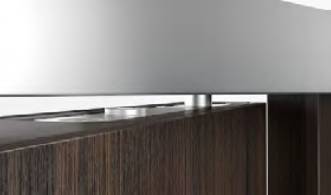

40 mm satin anodized aluminium headrail.
-
Height
-
2800 mm.
Sustainability data
Manufacturing plant location
Stoke-on-Trent, UK
Stoke-on-Trent, UK
Material
Wood, Medium density fibreboard (MDF)
Wood, Medium density fibreboard (MDF)
