Summary
Bonded edge-to-edge and directly fixed wood wool tiles.
Bonded edge-to-edge and directly fixed wood wool tiles.
Bonded edge-to-edge and directly fixed wood wool tiles.
Product certifications
- ISO 14021:2016 bsi ISO 14001:2015
- ISO 14021:2016 bsi ISO 14001:2015
- ISO 14021:2016 bsi ISO 14001:2015
Color
White, Grey, Beige, Cream, Green, Ivory, Orange, Purple, Other
White, Grey, Beige, Cream, Green, Ivory, Orange, Purple, Other
White, Grey, Beige, Cream, Green, Ivory, Orange, Purple, Other
Finish
Other
Other
Other
Material
Wood wool, Steel, Mineral wool
Wood wool, Steel, Mineral wool
Wood wool, Steel, Mineral wool
Shape
Square, Rectangle
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm, 2400 mm
600 mm, 1200 mm, 2400 mm
600 mm, 1200 mm, 2400 mm
Width
600 mm
600 mm
600 mm
Height
25 mm, 35 mm, 50 mm
25 mm, 35 mm, 50 mm
25 mm, 35 mm, 50 mm
Warranty description
Ten year
Ten year
Ten year
Specification
Ceiling support
Connect™ C-profile Plus grid.
Mounting wood laths 28 x 70 mm., Mounting wood laths 45 x 70 mm.
Mounting wood laths 28 x 70 mm., Mounting wood laths 45 x 70 mm.
Ceiling units
Saga B A2.
Saga B A2.
Saga B A2.
System accessories
Not required., Connect clips., Connect connectors and splines., Connect fixing devices., Connect suspensions and brackets., Saga Acoustic insulation., TECH Slab MT 3.1 insulation., Other.
Not required., Saga Acoustic insulation.
Not required., Saga Acoustic insulation.
Additional properties
Installation

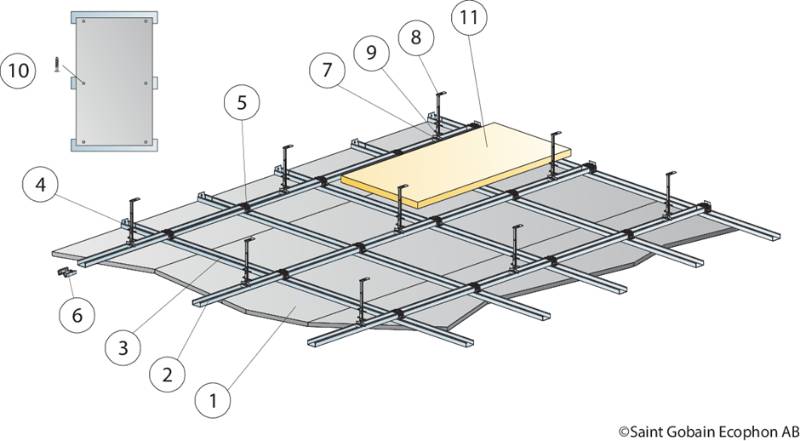

M633 - suspended ceiling.

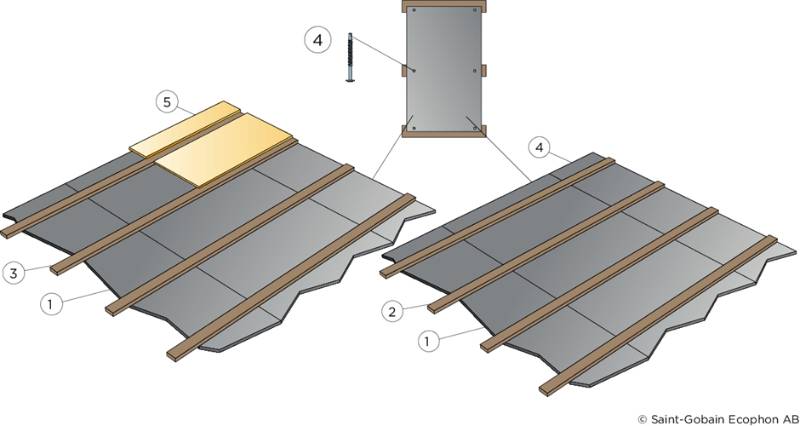

M634 - screwed installation.

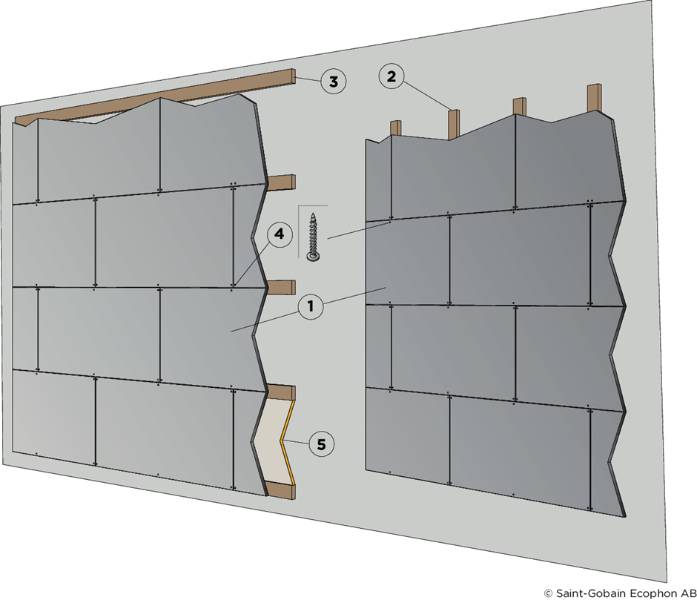

M636 - wall installation.
Surface texture
Elegant., Discreet., Normal.
Elegant., Discreet., Normal.
Elegant., Discreet., Normal.
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
Size (length x width)
600 x 600 mm., 1200 x 600 mm., 2400 x 600 mm.
600 x 600 mm., 1200 x 600 mm., 2400 x 600 mm.
600 x 600 mm., 1200 x 600 mm., 2400 x 600 mm.
Thickness (overall)
25 mm., 35 mm.
25 mm., 35 mm., 50 mm.
25 mm., 35 mm., 50 mm.
Weight
-
-
-
Edges
Bevelled edges.
Bevelled edges.
Bevelled edges.
Colour
Natural., White., Cement grey., Light grey., Dark grey., Glade., Lush., Sand., Mountain., Summer., Coastline., Lilac., Fog., Other.
Natural., White., Cement grey., Light grey., Dark grey., Glade., Lush., Sand., Mountain., Summer., Coastline., Lilac., Fog., Other.
Natural., White., Cement grey., Light grey., Dark grey., Glade., Lush., Sand., Mountain., Summer., Coastline., Lilac., Fog., Other.
Core material
Wood wool.
Wood wool.
Wood wool.
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Thermal conductivity (maximum)
To EN 12664, 0.1 W/m·K.
To EN 12664, 0.1 W/m·K.
To EN 12664, 0.1 W/m·K.
Impact resistance
To EN 13964, Class 1A.
To EN 13964, Class 1A.
To EN 13964, Class 1A.
Indoor climate
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Material
Wood wool, Steel, Mineral wool
Wood wool, Steel, Mineral wool
Wood wool, Steel, Mineral wool
Expected Life
50 year
50 year
50 year
