Summary

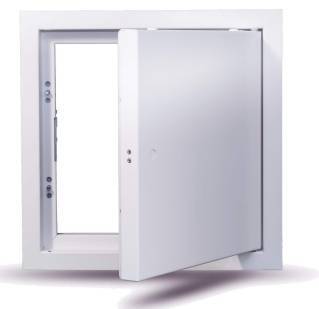

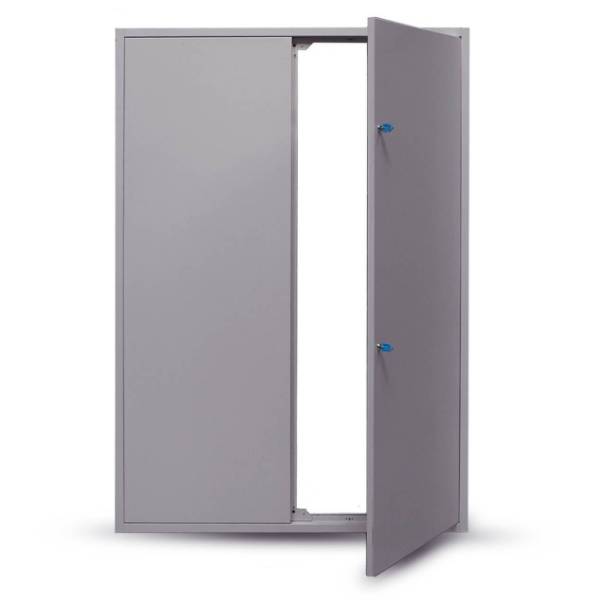

Acoustic and fire-rated premium metal door access panels.
Acoustic and fire-rated premium metal door access panels.
Product certifications
Color
White, Other
White, Other
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Zintec steel
Zintec steel
Shape
Square, Rectangle
Square, Rectangle
Length
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 900 mm, 1200 mm, Bespoke
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 900 mm, 1200 mm, Bespoke
Width
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 1200 mm, 1800 mm, Bespoke
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 1200 mm, 1800 mm, Bespoke
Height
50 mm, 56 mm
50 mm, 56 mm
Warranty description
Five year
Five year
SKU Code
-
-
GTIN/EAN
-
-
Specification
Fire performance
-
-
Fire resistance
Non-fire rated., 60 minutes to BS 476-22 and BS EN 1634-1., 120 minutes to BS 476-22 and BS EN 1634-1.
60 minutes to BS 476-22 and BS EN 1634-1., 120 minutes to BS 476-22 and BS EN 1634-1.
Position
Ceiling mounted., Wall mounted.
Wall mounted.
Size
200 x 200 mm., 300 x 300 mm., 450 x 450 mm., 550 x 550 mm., 600 x 300 mm., 600 x 600 mm., 900 x 600 mm., 1200 x 550 mm., 1200 x 600 mm., Custom.
1200 x 1200 mm., 1800 x 1200 mm.
Frame
Beaded frame (SBF)., Picture frame (PF).
Beaded frame (SBF)., Picture frame (PF).
Panel
-
-
Material
Zintec electrogalvanized mild steel.
Zintec electrogalvanized mild steel.
Integral finish
Powder-coated, RAL 9010., Powder-coated, RAL.
Powder-coated, RAL 9010., Powder-coated, RAL.
Latch or lock type
Square drive operated lock with ‘SLIK’ invisible keyhole., Euro cylinder., Radial pin tumbler., Three point lock.
Square drive operated lock with ‘SLIK’ invisible keyhole., Euro cylinder., Three point lock.
Operation
Pivot or piano hinge, outward opening.
Pivoting hinges., Continuous adjustable piano hinge.
Additional properties
Air tightness
Thermally-insulated and air-sealed ranges available complying with Building Regulations Parts L1 and L2, BS EN 12207:2000, BS EN 1026:2000.
Manufacturer's standard.
Sound insulation
Manufacturer's standard., To BS EN ISO 140-3:1995, 63 dB Rw.
Manufacturer's standard.
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Material
Zintec steel
Zintec steel
Recyclability
Recyclable
Recyclable
