Summary

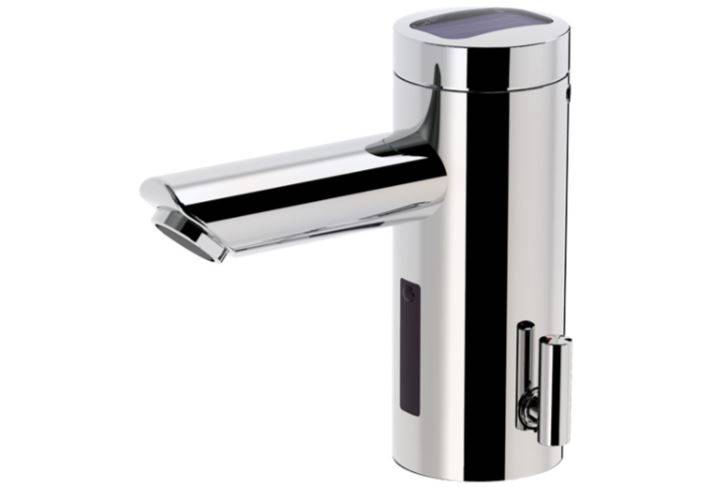

Touchless, electronically controlled lavatory faucets with IR sensors and temperature-mixing.
-
-
Application

For use in public bathrooms.

-
-
Description

Touchless, electronically controlled lavatory faucets with IR sensors, temperature-mixing and low pressure (for open water heating).


Features and benefits:

  • Cold water supply connection and decentralized water treatment (boiler).
  • Built in 0.5 mm mesh filter.
  • Modular single-piece design without separate installation box, sturdy brass housing, chromed.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator.
  • Infrared sensor (with automatic setting feature), microprocessor.
  • Follow-up time and sensor sensitivity adjustable with function key.
  • Cold water supply connection for decentralized water treatment (boiler).
  • With flexible high-pressure hoses, flow limiters and built-in filters.
  • Continuous water flow time and hygienic flush time adjustable with function key.
  • Temperature adjustable or fixable (vandal-resistant construction).
  • Adjustable hot water limitation (mechanically).
  • 12, 24 or 48-hour hygienic flush activatable with function key.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
  • Variant available with thermal protection.
-
-
Color
Silver, Grey, Gold
-
-
Finish
Chrome, Polished, Brushed
-
-
Material
Brass, Nickel
-
-
Shape
Other
-
-
Length
110 mm
-
-
Width
33 mm
-
-
Height
136 mm
-
-
Warranty description
Two year
-
-
SKU Code
120.028.11, 120.056.11, 120.016.11, 120.036.11, 120.040.00, 120.040.22, 120.040.44, 120.056.00, 120.056.22, 120.056.44, 120.000.00, 120.000.22, 120.000.44, 120.016.00, 120.016.22, 120.016.44, 120.000.11, 120.008.11, 120.010.11, 120.040.11, 120.048.11, 120.050.11, 120.020.11, 120.030.11, CONE8150308538
-
-

Specification

Classification data
Standards
To DIN EN 200.
-
-
Approvals
Water Regulations Approval Scheme (WRAS)-approved.
-
-
Form
Automatic-action taps (touchless).
-
-
Materials
-
-
-
Body
Brass.
-
-
Finish and colour
Chrome-plated.
-
-
Flow rate (maximum)
6 L/min at 3 bar.
-
-
Water supply temperature (maximum)
80°C.
-
-
Integral accessories
IR sensor.
-
-

Additional properties

Accessories
Not required.
-
-
Connections
Angle valve: G3/8".
-
-
Power supply
Photovoltaic cells with 6 V Lithium CRP2 (support batteries).
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Switzerland
-
-
Country of product manufacture
Switzerland
-
-
Material
Brass, Nickel
-
-
