Summary
Geberit urinal flush control with pneumatic flush actuation, type 10 flush plate.
-
-
Application
- For manual flush actuation of urinals.
- For Geberit frames for urinal with front actuation.
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009).
-
-
Description

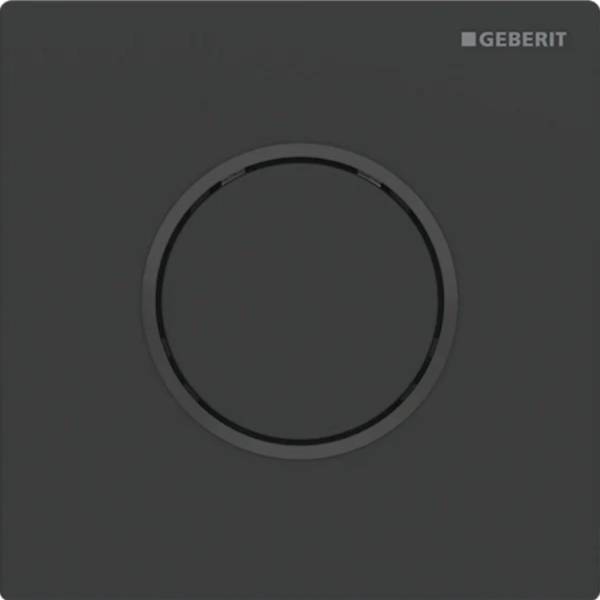

Geberit urinal flush control with pneumatic flush actuation, type 10 flush plate, round.
Features and benefits:
- Flush plate with securing bar.
- Flush time setting with air nozzles (pneumatic).
- Low flush actuation force.
- Short stroke movement.
- Flush actuation when the actuator button is released.
- Flush volume can be reduced to 0.5 L per flush with regulating screw of installation set.
-
-
Color
Black, Silver, White
-
-
Finish
Matt, Gloss, Chrome
-
-
Material
Plastic, Stainless steel
-
-
Shape
Square
-
-
Length
130 mm
-
-
Width
130 mm
-
-
Height
11 mm, 13 mm
-
-
SKU Code
116.015.DW.1, 116.015.JQ.1, 116.015.KH.1, 116.015.KJ.1, 116.015.KK.1, 116.015.KM.1, 116.015.SN.1, 116.015.16.1
-
-
Specification
Classification data
Flush volume
0.3 L/s (without flow limiter); 0.18 L/s (with flow limiter).
-
-
Flush rate
Flush time, adjustment range 4 / 8 / 12 s.
-
-
Materials
-
-
-
Body
Stainless steel.
-
-
Finish and colour
Plate and button: black matt coated, easy-to-clean coated.
Design rings: black.
-
-
Operation
Push-button.
-
-
Controller
Surface-mounted.
-
-
Sustainability data
Material
Plastic, Stainless steel
-
-
