Summary

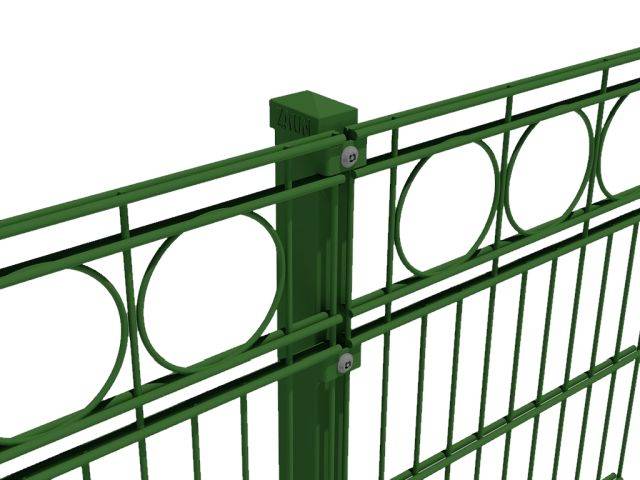

Decorative Fencing System
Decorative Fencing System
Color
Black, Green, Other, Blue, Yellow, Red, White, Grey
Black, Green, Other, Blue, Yellow, Red, White, Grey
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Metal
Metal
Width
2510 mm
2510 mm
Height
1230 mm, 2430 mm
1230 mm, 2430 mm
Specification
Standard
To BS1722, ISO 12944.
To BS1722, ISO 12944.
Posts
80 x 40 mm rectangular hollow section (RHS) posts., 60 x 60 mm rectangular hollow section (RHS) posts.
80 x 40 mm rectangular hollow section (RHS) posts., 60 x 60 mm rectangular hollow section (RHS) posts.
Panels
Duo8 mesh.
Duo8 mesh.
System accessories
Not required., Finials., Pedestrian gate., Vehicular gate.
Not required., Finials., Pedestrian gate., Vehicular gate.
Additional properties
Height
1230 mm., 2430 mm.
1230 mm., 2430 mm.
Applied finish
Galvanized and polyester powder coated.
Galvanized and polyester powder coated.
Fixing
Bolt down., In ground., Wall.
Bolt down., In ground., Wall.
Colour:
-
-
Gates
50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop, two gate posts.
50 x 50 mm RHS frame, Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop, two gate posts.
Panel fixings
Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres.
Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres.
Width
2510 mm.
2510 mm.
Mesh size
200 x 50 mm.
200 x 50 mm.
WireDiameter
6 mm / 2 x 8 mm.
6 mm / 2 x 8 mm.
Fixings
Anti tamper security fixings.
Anti tamper security fixings.
