Summary

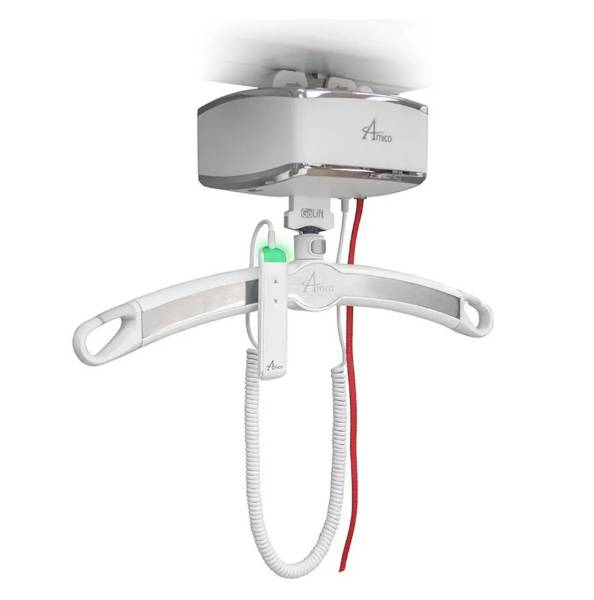

Ceiling hoist in a compact, discreet design. State-of-the-art battery technology coupled with all-metal gears allows carers to safely and effortlessly transfer users of varying physical presentation.
-
-
Application
Assisted transfer (ceiling track).
-
-
Description
Ceiling hoist in a compact, discreet design.
State-of-the-art battery technology coupled with all-metal gears allows carers to safely and effortlessly transfer users of varying physical presentation.
Features and benefits:
- Most compact unit available for discreet installations.
- Multiple track layout options.
- In-rail battery charging.
- Convenient magnetic hand control.
- Choice of sling spreader bars.
- Matt white track blends into ceiling.
- Popular for Changing Places installation.
- Three-year warranty.
- Available in four configurations:
- GoLift 400: 28 st/ 181 kg SWL.
- GoLift 450: 32 st/ 205 kg SWL.
- GoLift 700: 50 st/ 318 kg SWL.
- GoLift 1000 tandem unit: 72 st/ 453 kg SWL.
- Service life: ten years or 22 500 cycles.
-
-
Color
White, Black
-
-
Finish
Matt
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
Three year
-
-
SKU Code
GO-LIFT-FT-400-LS, GO-LIFT-FT-450-LS, GO-LIFT-FT-700-LS, GO-LIFT-1000-3.3AH
-
-
Specification
Classification data
Standards
To ISO 10535-6 CE Approved.
-
-
Form
Ceiling-mounted track hoist.
-
-
Cradle or sling
-
-
-
Hoist fittings for slings
Two-point carry bar., Four-point carry bar.
-
-
Supports
-
-
-
Material
Carbon steel.
-
-
Finish and colour
Matt, white.
-
-
Safe working load (maximum)
181 kg/ 28 st.
-
-
Integral accessories
Capacitive touch hand control.
-
-
Electrical power
Mains.
-
-
Additional properties
Weight
4 kg.
-
-
Batteries
NiMH batteries (2 x 14.4 V, 3.3 Ah) with optional in-rail charging., NiMH batteries (2 x 14.4 V, 5 Ah) with optional in-rail charging.
-
-
Speed
No load: 50 mm/s.
68 kg/ 11 st: 33 mm/s.
181 kg/ 28 st: 25 mm/s.
68 kg/ 11 st: 33 mm/s.
181 kg/ 28 st: 25 mm/s.
-
-
Track system
Straight., Curved., Full room coverage (X/Y system)., Full room coverage (H system)., Recess, flush mount.
-
-
Track profile
Regular., Double., Triple., Custom.
-
-
Accessories
None., Patient scale., MagnAlign transition gate., Four-point carry bar., Four-hook carry bar., Turntable, manual., Turntable, powered
-
-
Sustainability data
Country of product manufacture
Canada
-
-
