Summary
Wall and floor mounted steel, safety radiator.
Wall and floor mounted steel, safety radiator.
Wall and floor mounted steel, safety radiator.
Application
Suitable choice for use in public buildings.
Suitable choice for use in public buildings.
Suitable choice for use in public buildings.
Description

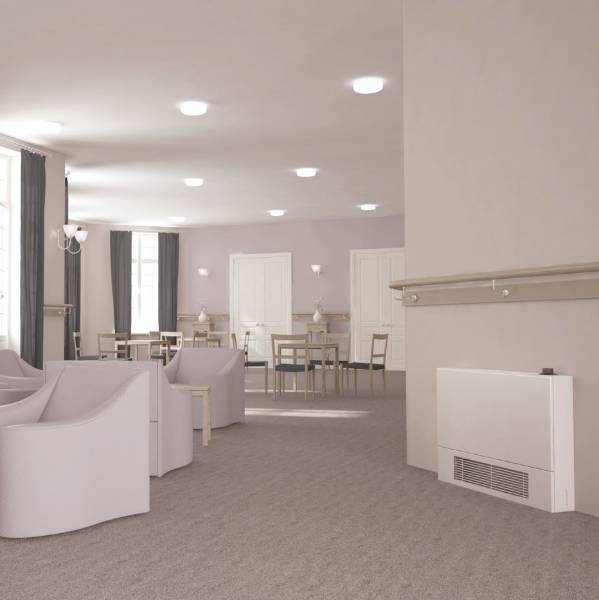

Hudevad LST I Plus is a safety radiator that is often used in public buildings in countries where the water flow temperature is high to prevent burns. The radiator is simple and quick to install and is supplied with an attractive, flat panel outer casing, which is totally reversible to allow piping flexibility. Furthermore the cabinet is fitted with safety brackets to prevent unauthorized access to the emitter, which is encapsulated inside.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- Radiator panels, according to EN 10051.
- Heating element, steel panel according to EN 442.
Hudevad LST I Plus is a safety radiator that is often used in public buildings in countries where the water flow temperature is high to prevent burns. The radiator is simple and quick to install and is supplied with an attractive, flat panel outer casing, which is totally reversible to allow piping flexibility. Furthermore the cabinet is fitted with safety brackets to prevent unauthorized access to the emitter, which is encapsulated inside.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- Radiator panels, according to EN 10051.
- Heating element, steel panel according to EN 442.
Hudevad LST I Plus is a safety radiator that is often used in public buildings in countries where the water flow temperature is high to prevent burns. The radiator is simple and quick to install and is supplied with an attractive, flat panel outer casing, which is totally reversible to allow piping flexibility. Furthermore the cabinet is fitted with safety brackets to prevent unauthorized access to the emitter, which is encapsulated inside.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- Radiator panels, according to EN 10051.
- Heating element, steel panel according to EN 442.
Digital objects
Color
White
White
White
Finish
Powder-coated
Powder-coated
Powder-coated
Material
Steel
Steel
Steel
Shape
Rectangle
Rectangle
Rectangle
Length
700 mm, 900 mm, 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2100 mm
700 mm, 900 mm, 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2100 mm
700 mm, 900 mm, 1100 mm, 1300 mm, 1500 mm, 1700 mm, 1900 mm, 2100 mm
Width
132 mm
132 mm
132 mm
Height
500 mm, 650 mm, 800 mm
500 mm, 650 mm, 800 mm
500 mm, 650 mm, 800 mm
Warranty description
Ten year
Ten year
Ten year
SKU Code
378
378
378
Specification
Classification data
Standards
To BS EN 442-1 and BS EN 442-2.
To BS EN 442-1 and BS EN 442-2.
To BS EN 442-1 and BS EN 442-2.
Radiator type
Single convector panel.
Double panel single convector.
Double panel double convector.
Output
-
-
-
Finish
Powder-coated.
Powder-coated.
Powder-coated.
Connections
-
-
-
Accessories
-
-
-
Additional properties
Casing
To EN 10051, radiator panels.
To EN 10051, radiator panels.
To EN 10051, radiator panels.
Heating element
To EN 442, steel panel.
To EN 442, steel panel.
To EN 442, steel panel.
Colour
White RAL 9016, gloss 70.
White RAL 9016, gloss 70.
White RAL 9016, gloss 70.
TestPressure
13 bar.
13 bar.
13 bar.
Operating pressure (maximum)
To EN 442, 10 bar.
To EN 442, 10 bar.
To EN 442, 10 bar.
Operating temperature
110°C.
110°C.
110°C.
Height
500 mm., 650 mm., 800 mm.
500 mm., 650 mm., 800 mm.
500 mm., 650 mm., 800 mm.
Depth
132 mm.
132 mm.
132 mm.
Length
700 mm., 900 mm., 1100 mm., 1300 mm., 1500 mm., 1700 mm., 1900 mm., 2100 mm.
700 mm., 900 mm., 1100 mm., 1300 mm., 1500 mm., 1700 mm., 1900 mm., 2100 mm.
700 mm., 900 mm., 1100 mm., 1300 mm., 1500 mm., 1700 mm., 1900 mm., 2100 mm.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Europe
Europe
Europe
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Recyclability
Yes
Yes
Yes
Recycled content
100 %
100 %
100 %
