High Security Fencing System
High Security Fencing System
Application
- Civic and public sector.
- Health and emergency services.
- High security.
- Industrial.
- Schools and education.
- Transport and infrastructure.
- Utilities.
- Civic and public sector.
- Health and emergency services.
- High security.
- Industrial.
- Schools and education.
- Transport and infrastructure.
- Utilities.
Description
The HiSec Super6 range has been developed in consultation with the Home Office as a premier high security system, aimed at high profile and sensitive sites requiring the greatest perimeter protection. It is based on HiSec, but is even stronger, presenting a formidable barrier to anyone trying to gain unauthorized access. The 4 mm horizontal wires remain the same however the vertical wires in come in 6 mm diameter and 76.2 mm spacing.

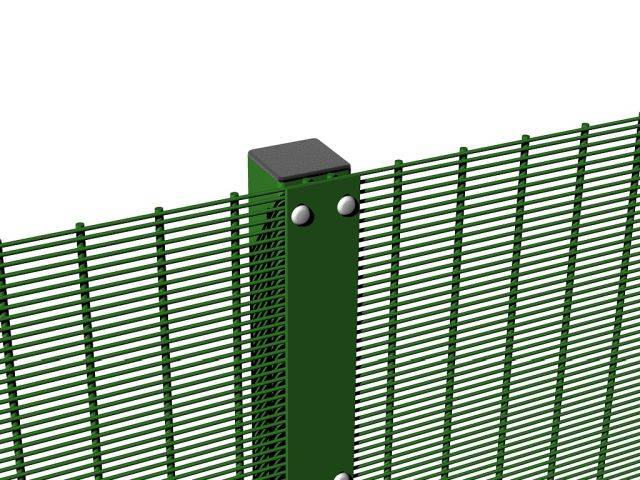

The system is fixed to the post using a full length clamp bar with overlapped panels for added strength and security. A 140 mm plate clamp bar and non-removable external fixings leave no weakness in the fence line. Slotted fixing holes ensure installation is easy and leaves a neat, flush fitting.
Features and benefits:
- Designed with thicker 6 mm vertical wires to eliminate the need for a double skin 358 mesh system and reduce attack effectiveness.
- Increased security with a single panel system and improves installation time.
- Manufactured to the traditional 358 mesh pattern regularly associated with prisons.
- The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools.
- Open mesh pattern provides excellent visibility.
- Single panel heights can be supplied of up to a maximum of 5.2 m.
- Panel is flush to the post and fixed to posts using a dual fixing full length clamp bar.
The HiSec Super6 range has been developed in consultation with the Home Office as a premier high security system, aimed at high profile and sensitive sites requiring the greatest perimeter protection. It is based on HiSec, but is even stronger, presenting a formidable barrier to anyone trying to gain unauthorized access. The 4 mm horizontal wires remain the same however the vertical wires in come in 6 mm diameter and 76.2 mm spacing.
The system is fixed to the post using a full length clamp bar with overlapped panels for added strength and security. A 140 mm plate clamp bar and non-removable external fixings leave no weakness in the fence line. Slotted fixing holes ensure installation is easy and leaves a neat, flush fitting.
Features and benefits:
- Designed with thicker 6 mm vertical wires to eliminate the need for a double skin 358 mesh system and reduce attack effectiveness.
- Increased security with a single panel system and improves installation time.
- Manufactured to the traditional 358 mesh pattern regularly associated with prisons.
- The tight welded mesh offers no climbing aids and mitigates attack by hand and powered tools.
- Open mesh pattern provides excellent visibility.
- Single panel heights can be supplied of up to a maximum of 5.2 m.
- Panel is flush to the post and fixed to posts using a dual fixing full length clamp bar.
Color
Green, Black, Other
Green, Black, Other
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Metal
Metal
Width
2515 mm
2515 mm
Height
2007 mm, 2438 mm, 2997 mm
2007 mm, 2438 mm, 2997 mm
Specification
Classification data
Standard
To BS1722, ISO 12944.
To BS1722, ISO 12944.
Posts
80 x 80 mm rectangular hollow section (RHS) posts.
80 x 80 mm rectangular hollow section (RHS) posts.
Panels
HiSec Super6 mesh.
HiSec Super6 mesh.
System accessories
Not required., Pedestrian gates., Vehicular gates.
Not required., Pedestrian gates., Vehicular gates.
Additional properties
Height
1270 mm., 1829 mm., 2007 mm., 2438 mm., 2997 mm., 4204 mm., 5207 mm.
1270 mm., 1829 mm., 2007 mm., 2438 mm., 2997 mm., 4204 mm., 5207 mm.
Applied finishes
Galvanized and polyester powder coated.
Galvanized and polyester powder coated.
Gates
100 x 50 mm RHS frame, Zaun HiSec Super mesh bolted onto the frame using the Zaun picture frame design, slide latch, rubber bump stop and two gate posts.
100 x 50 mm RHS frame, Zaun HiSec Super mesh bolted onto the frame using the Zaun picture frame design, slide latch, rubber bump stop and two gate posts.
Panel fixings
Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres.
Panels fixed to posts with full height 80 x 5 mm clamp bar with bolt fixings at 400 mm centres.
Width
2515 mm.
2515 mm.
Mesh size
76.2 x 12.7 mm.
76.2 x 12.7 mm.
WireDiameter
6 mm / 4 mm.
6 mm / 4 mm.
Fixings
Through bolts, washers & nuts.
Through bolts, washers & nuts.
