Summary

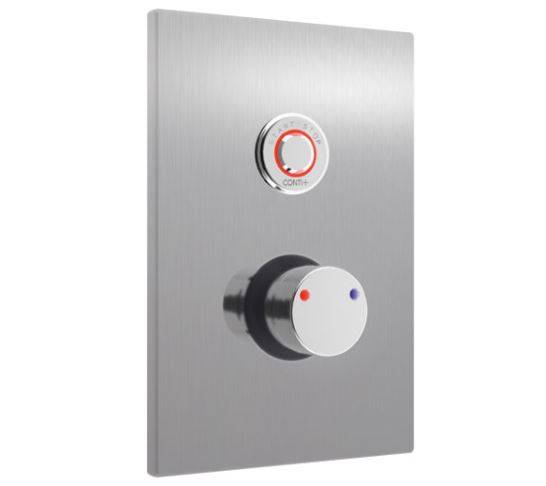

Concealed stainless steel shower with piezo switch and thermostatic mixing device.
-
-
Application
For use in new construction building and renovation in commercial, semi-public and public sanitary facilities.
-
-
Description
Concealed stainless steel shower with piezo switch and thermostatic mixing device for connection to cold and hot water.
Features and benefits:
- Concealed mounting, robust double lock, multi-sealing system with drainage system for condensation.
- Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable.
- Upgrade and retrofitting functions.
- Implementing functional elements and thermostat including EPDM sealing rings.
- Scald protection.
- Electronic protection type rating of IP68.
- Hygienic flush setting range: 12, 24 or 72-hour, can be deactivated via setting on piezo switch, other hygienic flush intervals can be set via service APP.
- Hygienic flush can be carried out in electronic showers by programming via the piezo switch or the Service APP per shower.
- Integration into the CNX water management system.
- All functional parts can be disassembled during maintenance work without removing the valve body.
- Electronic operation of the shower function via piezo switch with start/ stop function, piezo switch: colour ring red, rosette chrome plated.
-
-
Color
Silver, Grey
-
-
Finish
Brushed, Chrome
-
-
Material
Stainless steel, Brass
-
-
Shape
Rectangle
-
-
Length
10 mm
-
-
Width
170 mm
-
-
Height
225 mm
-
-
Warranty description
Two year
-
-
SKU Code
CONE2116211100, CONE2116211140, CONE2116211200, CONE2116211240, CONE2116211210, CONE2116211230, CONE2116211336, CONE2116211360, CONE2156211100, CONE2156211140, CONE2156211200, CONE2156211240, CONE2156211210, CONE2156211230, CONE2156211336, CONE2156211360, CONR2112
-
-
Specification
Classification data
Form
Concealed, wall-mounted thermostatic shower mixer with piezo push button.
-
-
Materials
-
-
-
Body
Stainless steel (cover plate); brass (thermostat handle).
-
-
Finish and colour
Brushed (cover plate); chromed (thermostat handle).
-
-
Flow rate (maximum)
0.15 L/s (flow rate regulator).
-
-
Water supply temperature (maximum)
70°C.
-
-
Integral accessories
CONHEAD Rain shower head SHORTY, wall-mounted, chromed brass, DN15., CONHEAD rain shower head SHORTY, for shower elements, chromed brass, DN15., CONHEAD Rain shower head RAIN2, wall-mounted, chromed brass, DN15., CONHEAD rain shower head RAIN2, for shower elements, chromed brass, DN15., CONHEAD Handheld shower kit, wall-mounted, DN15., CONHEAD handheld shower kits, for shower panel, DN15., CONHEAD jet shower head GOLF, wall-mounted, chromed brass, DN15., CONHEAD jet shower head GOLF, for shower elements, chromed brass, DN15., CONHEAD jet shower head CITY, wall-mounted, chromed brass, DN15., CONHEAD Jet shower head CITY, without TD, wall-mounted, brushed V4A, DN15., CONHEAD jet shower head CITY, for shower elements, chromed brass, DN15., CONHEAD jet shower head CITY, for shower elements, brushed V4A, DN15., CONHEAD jet shower head VESUV, wall-mounted, chromed brass, DN15., CONWELL rain shower head, round, chromed, DN15., Rain shower head round, chromed, DN20., Shower head arm, chromed, DN20., CONWELL spiked shower head round, chromed, DN15., CONWELL spiked shower head round, chromed, DN20., CONWELL rain shower head, round cover plate, chromed, DN15., Jet shower head MAXI, ceiling mounting, chromed brass, DN20., CONWELL jet shower head MINI, ceiling mounting, chromed brass, DN15., Shower head ball joint CONHEAD AG/ AG, DN20, for ceiling mounting, chrome., CONWELL spray shower head, chromed brass, DN15., CONHEAD Water fall shower head, wall-mounted, DN15., CONHEAD Water fall shower head, wall-mounted, DN20., Wall mounting, shower arms, chromed, DN15., Shower head arm DN20, chromed, DN20., Shower head arm CONHEAD-PLUS DN15, chromed., Shower head arm, chromed, DN20., CONHEAD handheld shower kits, for shower panel, DN15., CONTI+ CONGENIAL FIT SHOWERS - 157 x 216 x 127 mm (W x H x D).
-
-
Additional properties
Dimensions
170 x 225 x 10 mm.
-
-
Accessories
Not required., BLE Converter for CONTI+ Service APP (BLE converter).
-
-
Power supply
6 V Lithium waterproof encased.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Germany
-
-
Country of product manufacture
Germany
-
-
