Summary
Sound-absorbing acoustic panels with a concealed grid system, fully demountable with a smooth finish.
-
-
Product certifications
- ISO 14021:2016 bsi ISO 14001:2015
-
-
Digital objects
-
-
Color
Clear, Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
-
-
Finish
Painted
-
-
Material
High-density glass wool
-
-
Shape
Square, Rectangle
-
-
Length
600 mm, 1200 mm, 1600 mm, 1800 mm, 2000 mm, 2400 mm, Bespoke
-
-
Width
600 mm, 1200 mm, Bespoke
-
-
Height
20 mm
-
-
Warranty description
Ten year, 50 year
-
-
Specification

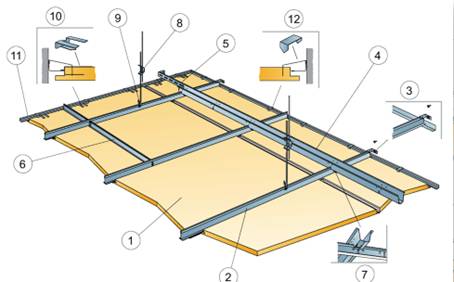

Ceiling support
Connect T24 Main runner PL with space bar.
-
-
Support fasteners
Connect adjustable hangers.
-
-
Ceiling units
High-density glass wool tiles.
-
-
System accessories
None., Connect™ Bridging Profile and Clip., Connect™ Edge Tool Dg., Connect™ Laser Angle., Connect™ Lighting Clip 0231., Edge 500., Focus Frieze Dg/Ds Panel, 2400 x 600 mm., Focus Wing Ds.
-
-
Additional properties
Panel size
600 x 600 mm., 1200 x 600 mm., 1200 x 1200 mm., 1600 x 600 mm., 1800 x 600 mm., 2000 x 600 mm., 2400 x 600 mm.
-
-
Thickness
20 mm.
-
-
Colour/ Finish
Cloudy Day., Dark Diamond., Eucalyptus Leaf., Fresh Clover., Goji Berry., Golden Field., Highland Fog., Moonlight Sky., Morning Drizzle., Ocean Storm., Peach Rose., Ruby Rock., Sage Garden., Scallop Shells., Silent Steam., Silk Slate., Silver Stone., Summer Forest., Sunset Heat., Volcanic Ash., Wet Sand., White Frost.
-
-
Grid colour
Ultra matt black., White 01.
-
-
Trim
Connect™ Angle Trim., Connect™ Modular Wall., Connect™ Shadowline 0668.
-
-
Lighting
None., Ecophon Dot., Ecophon Line., Ecophon Square 43.
-
-
Weight
3–4 kg/m².
-
-
Demounting depth (minimum)
30 mm.
-
-
Indoor climate
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
-
-
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
-
-
Fire safety
To BS EN 13501-1, Class A2-s1, d0.
-
-
Sound absorption
200 mm-deep system: in accordance with EN ISO 11654, Class A.
-
-
Cleaning
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Sweden
-
-
Country of product manufacture
Sweden
-
-
Material
High-density glass wool
-
-
A1-A3 (production stage)
Embodied carbon as defined in BS EN 15804
Lower emissions
Normalised unit
-
-
-
Declared unit
2.60 kg CO₂ eq/m²
Certified
-
-
Recyclability
100%
-
-
Recycled content
54 %
-
-
Expected Life
50 year
-
-
