Summary

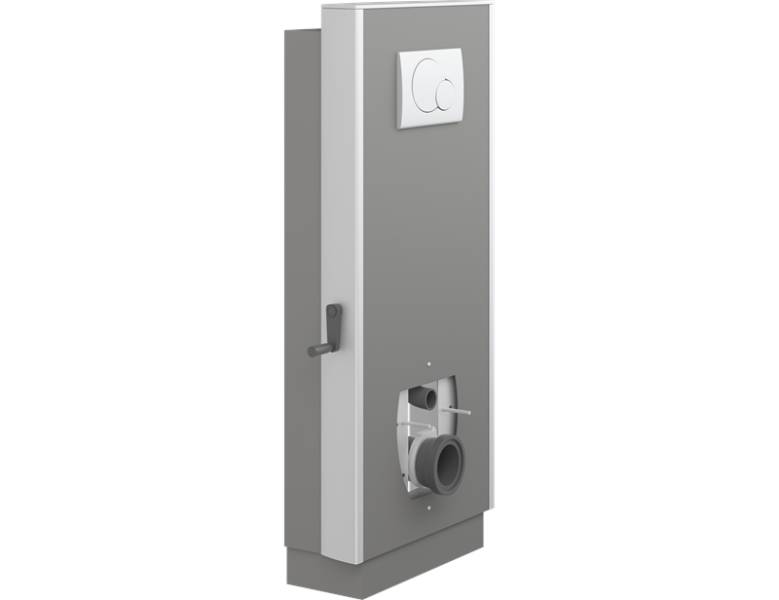

Manually adjustable height toilet lifters. T2 with side profile for Plus support arms, T1 without side profile. Crank handle operated.
-
-
Application
Suitable for adjusting the pan height to suit different mobile aids. Useful for wheelchair transfer or for use with mobile shower seats. R8012 and R8112 for use with floor outlet. R8022 and R8122 for use with wall outlet.
-
-
Description
A range of height adjustable toilet brackets available with manual crank handles for periodic adjustment.
Features and benefits:
- Height adjustable toilets meet the demands of both unknown users and changing requirements, perhaps of multiple users.
- Models are available for plumbing either through the floor or horizontally through the wall.
- Maximum human weight supported: 200 kg.
- Available in two colours to coordinate with modern bathrooms.
- Models with side profiles allow for the addition of PLUS support arms (specified separately).
- Easy to clean.
- Fixing kit excluded.
- Toilet seat to be ordered/ specified separately.
- CE marked.
- Five-year warranty.
-
-
Product certifications
-
-
Digital objects
-
-
Color
White, Grey
-
-
Finish
Smooth
-
-
Material
Aluminium, Polystyrene
-
-
Shape
Rectangle
-
-
Length
1230 mm
-
-
Width
815 mm, 555 mm
-
-
Height
215 mm
-
-
Warranty description
Five year
-
-
SKU Code
R8012, R8112, R8022, R8122
-
-
Specification
Classification data
Form
Back to wall cistern.
-
-
Materials
-
-
-
Body
Aluminium and polystyrene (PS).
-
-
Finish and colour
White., Anthracite.
-
-
Sizes
-
-
-
Cistern capacity
3/6 L dual flush.
-
-
Pan height
425–725 mm.
-
-
Integral accessories
Crank handle.
-
-
Additional properties
Accessories
Wall-hung pan R2098 540 mm., Wall-hung pan R2099 700 mm.
-
-
Operation
Manually, height adjustable.
-
-
Height adjustment range
300 mm, from 425–725 mm.
-
-
Dimensions
1230 x 555 x 215 mm.
-
-
Noise
48 dB.
-
-
NominalPowerConsumption
70 W (at maximum load) and 2 W (at standby).
-
-
Nominal voltage
230 V.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Denmark
-
-
Country of product manufacture
Denmark
-
-
Material
Aluminium, Polystyrene
-
-
Recyclability
Pressalit is a member of the Veolia WEEE Producer Compliance Scheme with the Weee Producer Registration Number: WEE/MM9866AA
-
-
