Summary

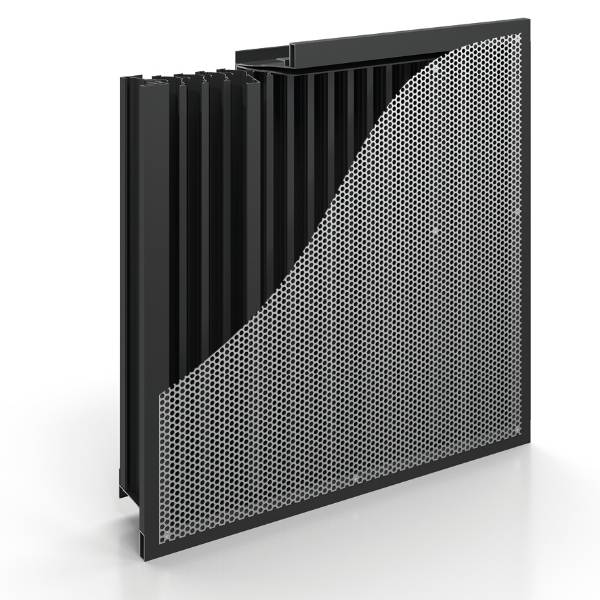

Perform™ class A rain defence louvres with vertical blades concealed behind an attractive perforated skin. Offers excellent weather performance, combined with good airflow and sight screening.
Perform™ class A rain defence louvres with vertical blades concealed behind an attractive perforated skin. Offers excellent weather performance, combined with good airflow and sight screening.
Application
Rain defence louvres for areas where weather protection and airflow performance is required, but louvred façade aesthetic is not desired.
Rain defence louvres for areas where weather protection and airflow performance is required, but louvred façade aesthetic is not desired.
Description
Perform™ class A rain defence louvres with vertical blades concealed behind an attractive perforated skin. Offers excellent weather performance, combined with good airflow and sight screening. Classified as A 3 up to 3.0 m/s.
Features and benefits:
- Complex extruded blade design in vertical arrangement for maximum rain defence performance.
- Multiple channels in blades to collect and drain water from the louvred area.
- Perforated aluminium face conceals the louvre while offering modern appearance.
- The screen can be supplied anodised or powder coated to meet project requirements. Louvre modules are powder-coated black as standard for maximum concealment.
- Glazing frame option available.
- Delivered to site as pre-fabricated modules for efficient installation.
- Sight-proof design.
Perform™ class A rain defence louvres with vertical blades concealed behind an attractive perforated skin. Offers excellent weather performance, combined with good airflow and sight screening. Classified as A 3 up to 3.0 m/s.
Features and benefits:
- Complex extruded blade design in vertical arrangement for maximum rain defence performance.
- Multiple channels in blades to collect and drain water from the louvred area.
- Perforated aluminium face conceals the louvre while offering modern appearance.
- The screen can be supplied anodised or powder coated to meet project requirements. Louvre modules are powder-coated black as standard for maximum concealment.
- Glazing frame option available.
- Delivered to site as pre-fabricated modules for efficient installation.
- Sight-proof design.
Color
Silver, Other
Silver, Other
Finish
Mill, Anodized, Powder-coated
Mill, Anodized, Powder-coated
Material
Aluminium
Aluminium
Length
191 mm
191 mm
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
SKU Code
PL-5700
PL-5700
Specification
Classification data
Material
Extruded 6063-T6 aluminium alloy frame and louvre blades; aluminium alloy perforated sheet.
Extruded 6063-T6 aluminium alloy frame and louvre blades; aluminium alloy perforated sheet.
Finish
Mill finish perforated screen/ matt black louvre., Anodized (clear) perforated screen/ matt black louvre., Anodized (colour) perforated screen/ matt black louvre., PPC (matt), colour perforated screen/ matt black louvre., PPC (gloss), colour perforated screen/ matt black louvre.
Mill finish perforated screen/ matt black louvre., Anodized (clear) perforated screen/ matt black louvre., Anodized (colour) perforated screen/ matt black louvre., PPC (matt), colour perforated screen/ matt black louvre., PPC (gloss), colour perforated screen/ matt black louvre.
Colour
As Finish.
As Finish.
Construction
Supplied as modules, mechanically assembled using stainless steel fasteners.
Supplied as modules, mechanically assembled using stainless steel fasteners, and complete with a 25 mm glazing frame, suitable for fitting into glazing sockets or use in Structural Silicone Glazing (SSG) system.
Weather performance
-
-
Water penetration class (minimum)
To BS EN 13030, class A up to 3.0 m/s.
To BS EN 13030, class A up to 3.0 m/s.
Discharge loss coefficient (minimum)
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.252; Cd (discharge): 0.222.
To BS EN 13030, class 3: Airflow coefficient Ce (entry): 0.252; Cd (discharge): 0.222.
Louvre configuration
-
-
Number of banks
One.
One.
Blade orientation
Vertical.
Vertical.
Blade pitch
51 mm.
51 mm.
Blade angle
Complex extruded blade profile.
Complex extruded blade profile.
Accessories
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Dampers, high-performance PVC-U, volume control., Dampers, aluminium, volume control., Snap-on cover plate to close-off louvre frame.
None., Bird/ vermin guard, galvanized steel welded mesh., Bird/ vermin guard, expanded aluminium welded mesh., Insect mesh, PVC-coated fibreglass., Louvred door(s)., Dampers, high-performance PVC-U, volume control., Dampers, aluminium, volume control., Snap-on cover plate to close-off louvre frame.
Additional properties
Cill pan
Louvres to be supplied with a full depth cill pan with welded side panels, formed from 2 mm-thick aluminium.
-
Blanking panels
Not required., Single-skin aluminium panels, to match louvre., Single-skin aluminium panels, mill finish., Single-skin aluminium panels, other colour/ finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Not required., Single-skin aluminium panels, to match louvre., Single-skin aluminium panels, mill finish., Single-skin aluminium panels, other colour/ finish., Insulated panels incorporating A1-classified non-combustible stone wool core., Insulated panels, extruded polystyrene core.
Sustainability data
Contains Red List materials
No
No
Material
Aluminium
Aluminium
Recycled content
55 %
55 %
