Summary
Acoustic wall panel system for sports halls.
Acoustic wall panel system for sports halls.
Acoustic wall panel system for sports halls.
Application
Suitable for high impact sports halls.
Suitable for high impact sports halls.
Suitable for high impact sports halls.
Description
Acoustic wall panel system available as either Ecophon Akusto Wall C with a concealed grid and bevelled edge to create a narrow groove between each panel or Ecophon Akusto™ Wall Edge A with a exposed profile system. Available in a variety of surface options. Excellent room acoustic properties are achieved when this wall absorber is paired with a sound absorbing ceiling.
Features and benefits:
- Absorption class A.
- Painted edges, front surface partly covering the long edges.
- Stylish wall panel solution using several panels next to each other.
Acoustic wall panel system available as either Ecophon Akusto Wall C with a concealed grid and bevelled edge to create a narrow groove between each panel or Ecophon Akusto™ Wall Edge A with a exposed profile system. Available in a variety of surface options. Excellent room acoustic properties are achieved when this wall absorber is paired with a sound absorbing ceiling.
Features and benefits:
- Absorption class A.
- Painted edges, front surface partly covering the long edges.
- Stylish wall panel solution using several panels next to each other.
Acoustic wall panel system available as either Ecophon Akusto Wall C with a concealed grid and bevelled edge to create a narrow groove between each panel or Ecophon Akusto™ Wall Edge A with a exposed profile system. Available in a variety of surface options. Excellent room acoustic properties are achieved when this wall absorber is paired with a sound absorbing ceiling.
Features and benefits:
- Absorption class A.
- Painted edges, front surface partly covering the long edges.
- Stylish wall panel solution using several panels next to each other.
Product certifications
Color
White
White
White
Finish
Woven, Micro-textured, Textured, Other
Woven, Micro-textured, Textured, Other
Woven, Micro-textured, Textured, Other
Material
Glass mineral wool, Fabric
Glass mineral wool, Fabric
Glass mineral wool, Fabric
Shape
Rectangle
Rectangle
Rectangle
Length
2700 mm
2700 mm
2700 mm
Width
600 mm
600 mm
600 mm
Height
40 mm
40 mm
40 mm
Warranty description
Ten year
Ten year
Ten year
SKU Code
M353
M354
M355
Specification
Battens
Galvanized steel sections.
Galvanized aluminium profiles.
Galvanized aluminium profiles.
Acoustic insulation
Glass wool.
Glass wool.
Glass wool.
Panelling
-
-
-
Type
Individual panels.
Individual panels.
Individual panels.
Surface material
Super G.
Super G.
Super G.
System accessories
-
-
Not required., Alternative fixing bracket.
Additional properties
Installation

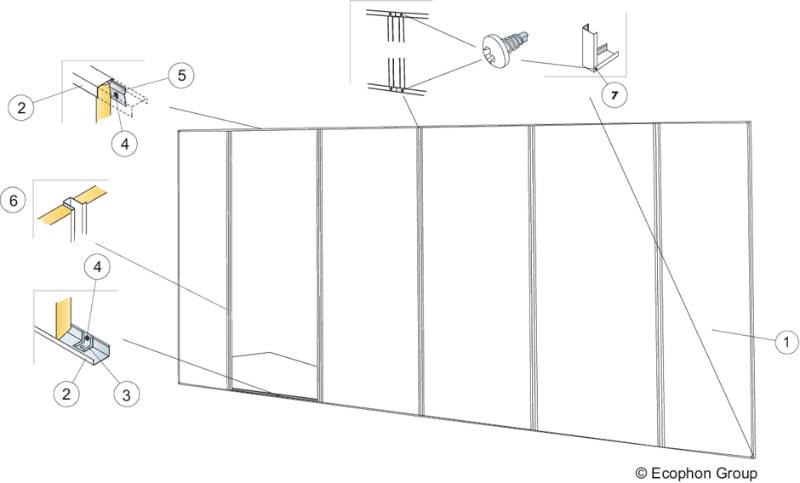

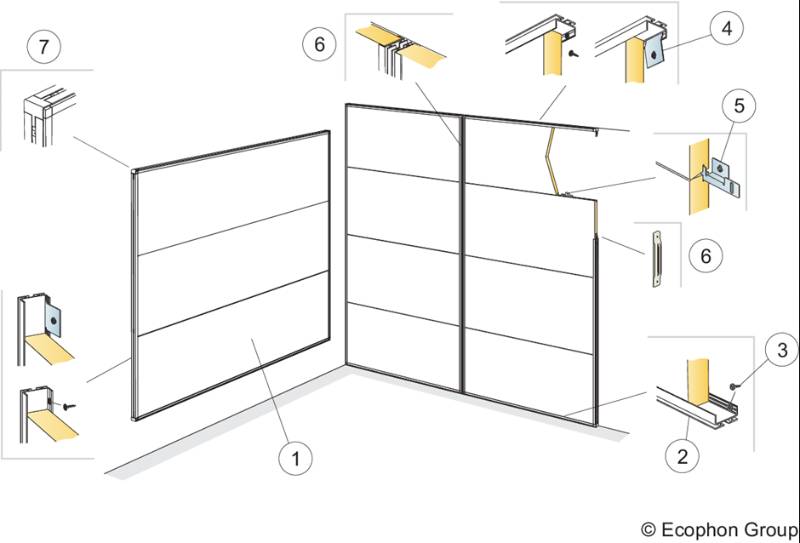

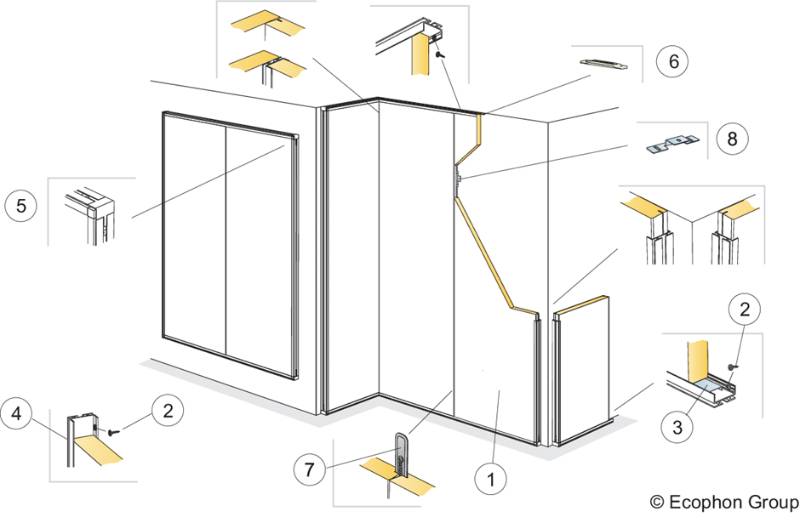

M353 – Channel trim + Impact Resistant.
M354 – Connect WP + Vertical + Impact resistant.
M355 – Connect WP + Horizontal.
Sound absorption
To EN ISO 11654, Class A.
To EN ISO 11654, Class A.
To EN ISO 11654, Class A.
Indoor climate
Eurofins Indoor Air Comfort® IAC. Certified as A by French VOC. Emission classification of building materials: M1.
Eurofins Indoor Air Comfort® IAC. Certified as A by French VOC. Emission classification of building materials: M1.
Eurofins Indoor Air Comfort® IAC. Certified as A by French VOC. Emission classification of building materials: M1.
Fire safety
To EN 13501-1, Class A2-s1,d0.
To EN 13501-1, Class A2-s1,d0.
To EN 13501-1, Class A2-s1,d0.
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Impact resistance
To DIN 18032-3.
To DIN 18032-3.
To DIN 18032-3.
Trim
Connect™ Channel Trims.
Connect™ WP Profile.
Connect™ WP Profile.
Integral accessories
Connect™ Recessed profile Plus.
Connect™ direct fixing plate.
Connect™ fixing bracket.
Connect™ direct fixing plate.
Connect™ fixing bracket.
Connect™ WP space bar.
Connect™ WP profile splice.
Connect™ WP external corner.
Connect™ WP profile splice
Connect™ Spline.
Connect™ Fixing plate.
Connect™ WP profile splice.
Connect™ WP external corner.
Connect™ WP profile splice
Connect™ Spline.
Connect™ Fixing plate.
Connect™ WP profile splice.
Connect™ WP external corner.
Connect™ Fixing plate.
Connect™ WP external corner.
Connect™ Fixing plate.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Sweden
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Sweden
Material
Glass mineral wool, Fabric
Glass mineral wool, Fabric
Glass mineral wool, Fabric
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
-
Declared unit
8.69 kg CO₂ eq/m²
Certified
8.69 kg CO₂ eq/m²
Certified
8.69 kg CO₂ eq/m²
Certified
Recyclability
100%
100%
100%
Recycled content
60 %
60 %
60 %
Expected Life
50 year
50 year
50 year
