Summary

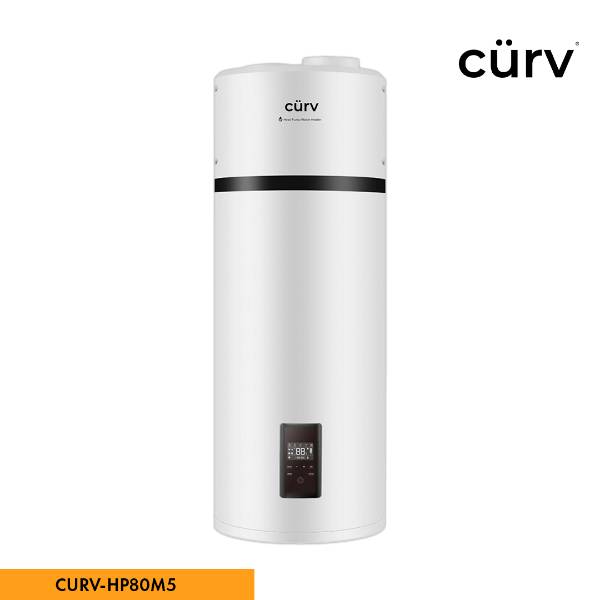

Air sourced hot water cylinders (ASHWC) providing a direct hot water solution.
-
-
Digital objects
-
-
Color
White, Silver
-
-
Finish
Enamelled
-
-
Material
Steel
-
-
Shape
Other
-
-
Length
492 mm, 600 mm
-
-
Width
547 mm, 620 mm, 629 mm
-
-
Height
1184 mm, 1334 mm, 1692 mm, 1694 mm, 1989 mm
-
-
Warranty description
Five year
-
-
Specification
Mode
Heating.
-
-
Coefficient of performance (minimum)
To EN16147, 2.91 (at 7℃).
To EN16147, 3.07 (at 14℃).
-
-
Output
-
-
-
Heating
Maximum power output by heat pump: 370 W.
Maximum power output: 1570 W.
-
-
Compressor
-
-
-
Type
Manufacturer's standard.
-
-
Sealing
Manufacturer's standard.
-
-
Drive
Manufacturer's standard.
-
-
Refrigerant
R290.
-
-
Additional properties
Tapping configuration
M.
-
-
Noise level at 1 m maximum
37.7 dB.
-
-
Working temperature
-7℃ to +45℃.
-
-
Tank capacity
82 L.
-
-
Voltage
220–240 V (50 Hz).
-
-
Pressure
0.8 MPa.
-
-
Corrosion resistance
Magnesium rod.
-
-
Water resistance
IPX4.
-
-
Mounting
Wall-mounted.
-
-
Connections
R1/2”M.
-
-
Dimensions
1184 x 492 mm.
-
-
Weight
51 kg (net); 58 kg (gross).
-
-
Energy rating
A+.
-
-
Air flow
Ambient., Exterior.
-
-
Display
LED with touch control.
-
-
Sustainability data
Material
Steel
-
-
