Summary

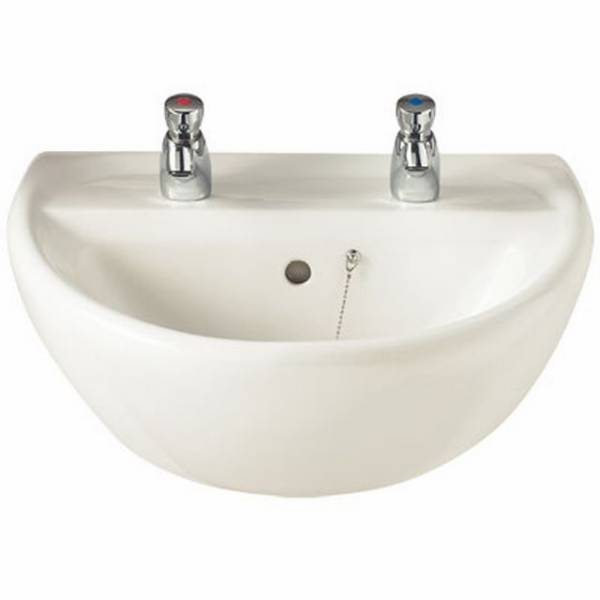

A wall fixed wash basin.
A wall fixed wash basin.
Application
Designed for use in education, catering, public houses and special needs facilities.
Designed for use in education, catering, public houses and special needs facilities.
Description
Wall fixed handrinse basin.
Wall fixed handrinse basin.
Color
White
White
Material
Vitreous china
Vitreous china
Shape
Other
Other
Length
345 mm
345 mm
Width
400 mm
400 mm
Height
215 mm
215 mm
SKU Code
SA4111WH, SA4112WH
SA4111WH, SA4112WH
Specification
Standard
To BS EN 274-1, -2 and -3.
To BS EN 274-1, -2 and -3.
Form
Wall hung wash basin.
Wall hung wash basin.
Materials
-
-
Body
Vitreous china.
Vitreous china.
Finish and colour
White.
White.
Size
400 x 395 mm.
400 x 395 mm.
Water supply, overflow and waste holes
-
-
Water supply
Two tap holes.
Single tap hole, centred.
Overflow
Rear overflow hole.
Rear overflow hole.
Integral accessories
SR5307XX, Wall hangers (Washbasins/ urinal)., SR1015XX, 120 mm bolts for masonry wall (pair)., SF9225CP, Blanking pin and nut for chainstay hole.
SR5307XX, Wall hangers (Washbasins/ urinal)., SR1015XX, 120 mm bolts for masonry wall (pair)., SF9225CP, Blanking pin and nut for chainstay hole.
Additional properties
Water supply fittings
SF2201CP, Sola 1/2" pillar taps X head (pair)., SF2401CP, Sola 1/2" lever action taps (pair), HTM64-TP5.
SF5347CP, Sequential lever action mixer tap., SF1139CP, Sola thermostatic basin mixer with detachable spout., SF2151CP, Sola 1/2 non-concussive tap (single, hot and cold indice)., SF1138CP, Sola thermostatic basin mixer with fixed spout, flexible tails., SF2104CP, Sola temperature controlled non-concussive monobloc, HTM64-TPP1.
