Summary

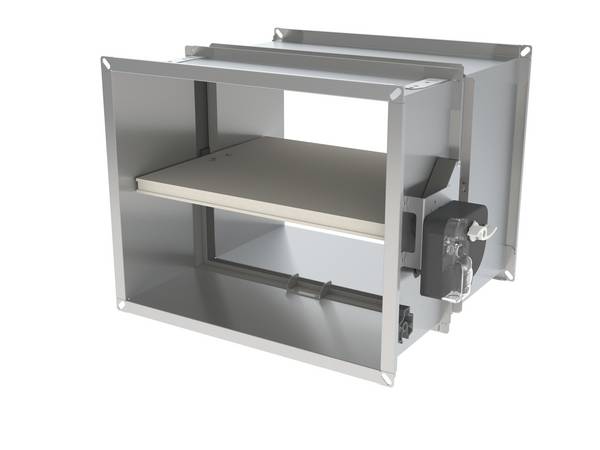

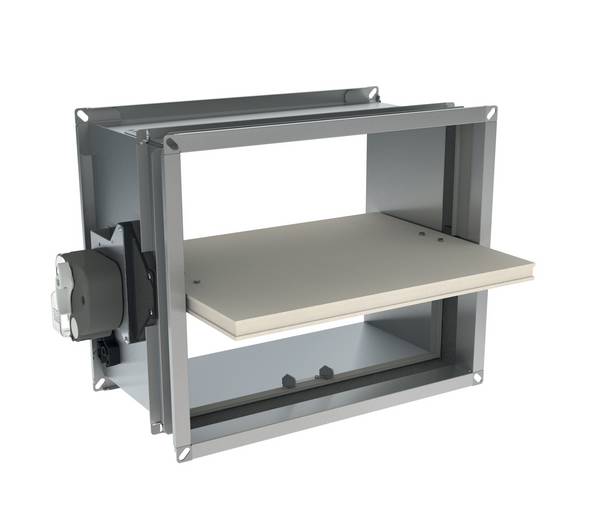

Rectangular EIS fire damper with a fire resistance of 30, 60, 90 or 120 minutes depending on the installation type, for motorized and non-motorized applications. (Previously known as FD or FSD/ MFSD).
Rectangular EIS fire damper with a fire resistance of 30, 60, 90 or 120 minutes depending on the installation type, for motorized and non-motorized applications. (Previously known as FD or FSD/ MFSD).
Product certifications
- Classification report acc. to EN 13501-3 CU-LT Classification Report Warringtonfire
- Classification report acc. to EN 13501-3 CU-LT Classification Report Efectis
- Hygiene requirements to VDI 6022 CU-LT Hygiene Certificate
- Classification report acc. to EN 13501-3 CU-LT Classification Report Warringtonfire
- Classification report acc. to EN 13501-3 CU-LT Classification Report Efectis
- Hygiene requirements to VDI 6022 CU-LT Hygiene Certificate
Digital objects
Color
Silver, White
Silver, White
Finish
Galvanized, Epoxy
Galvanized, Epoxy
Material
Steel
Steel
Shape
Rectangle, Square
Rectangle, Square
Length
300 mm, 500 mm
300 mm, 500 mm
Width
200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, 650 mm, 700 mm, 750 mm, 800 mm, Bespoke
200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, 650 mm, 700 mm, 750 mm, 800 mm, Bespoke
Height
100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, Bespoke
100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, Bespoke
Warranty description
One year
One year
SKU Code
-
-
GTIN/EAN
-
-
Specification
Standard
-
-
Fire dampers
To EN 15650:2010.
To EN 15650:2010.
Test methods
To EN 1366-2.
To EN 1366-2.
Classification
To EN 13501-3.
To EN 13501-3.
Third-party certification
CE marked BCCA-0749-CPR-BC1-606-0464-15650.05-0464.
UKCA marked 2822-UKCA-CPR-0060.
NF537 marked 18.19.
VKF/ AEAI certificate 26812.
Hy hygiene certificate W-379334-23-Zd.
RISE certificate SC0644-15.
CE marked BCCA-0749-CPR-BC1-606-0464-15650.05-0464.
UKCA marked 2822-UKCA-CPR-0060.
NF537 marked 18.19.
VKF/ AEAI certificate 26812.
Hy hygiene certificate W-379334-23-Zd.
RISE certificate SC0644-15.
Arrangement
Single-blade.
Single-blade.
Material
Galvanized steel.
Galvanized steel.
Accessories
IFW CU-LT pre-mounted installation kit for flexible wall., UL inspection shutter., PRJ circular connection., Limit switch (open/ closed)., Additional limit switch (open/ closed)., Not required.
IFW CU-LT pre-mounted installation kit for flexible wall., UL inspection shutter., PRJ circular connection., Limit switch (open/ closed)., Additional limit switch (open/ closed)., Not required.
Thermal release mechanism
Actuator - ONE T 24 V., Actuator - ONE T 230 V., Actuator - ONE-X 24 V., Actuator - ONE-X 230 V., Actuator - Belimo 24 V., Actuator - Belimo 230 V., Fusible link mechanism.
Actuator - ONE T 24 V., Actuator - ONE T 230 V., Actuator - ONE-X 24 V., Actuator - ONE-X 230 V., Actuator - Belimo 24 V., Actuator - Belimo 230 V., Fusible link mechanism.
Actuation temperature
72°C.
72°C.
Additional properties
Dimensions
-
-
Pressure loss
-
-
Air tightness
Class C.
Class C.
Integral accessories
PG20 connection to ducts with 20 mm flanges.
Inspection opening(s).
Inspection opening(s).
Tunnel casing extension.
PG20 connection to ducts with 20 mm flanges.
Inspection opening(s).
PG20 connection to ducts with 20 mm flanges.
Inspection opening(s).
Sustainability data
Country of material origin
Europe
Europe
Country of product manufacture
Belgium
Belgium
Material
Steel
Steel
