Summary

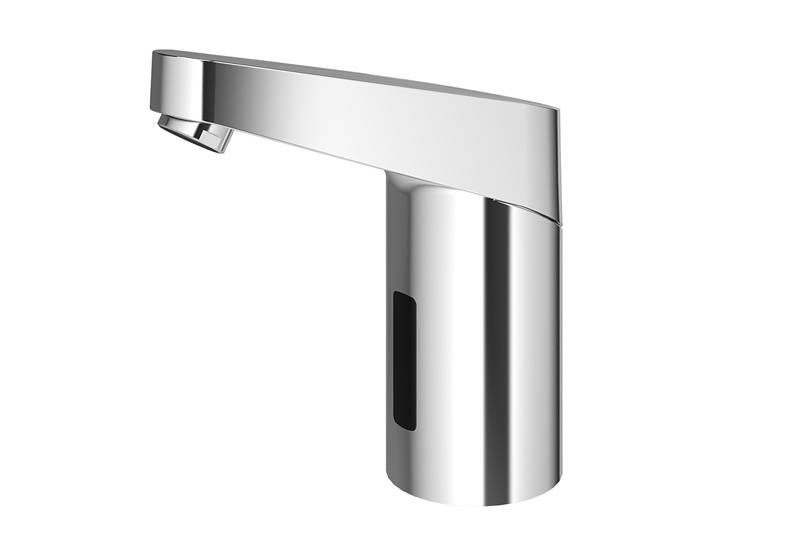

Range of touchless, electronically controlled lavatory faucets.
Range of touchless, electronically controlled lavatory faucets.
Range of touchless, electronically controlled lavatory faucets.
Application
Touchless, electronically controlled lavatory faucets.
Touchless, electronically controlled lavatory faucets.
Touchless, electronically controlled lavatory faucets.
Description
Range of touchless, electronically controlled lavatory faucets.
Features and benefits:
- For connection to cold or premixed water.
- Sturdy metal housing, chromed.
- Small external hydraulic unit for direct mounting on the angle-stop valve or wall-mounted (optional) with reliable solenoid valve ROBUST (minimal level of water pressure surge) integrated waterproof battery box (in battery operated models only).
- Infrared sensor (with automatic setting feature), microprocessor.
- Follow-up time, sensor-sensitivity with Touch.
- Built-in filter.
- Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch.
- Continuous-on and hygienic flush time with Touch.
- 12, 24 or 48-hour hygienic flush with Touch.
- Compatible with Service APP and Service Monitor: control of stored operational data, settings and control functions.
Range of touchless, electronically controlled lavatory faucets.
Features and benefits:
- For connection to cold or premixed water.
- Sturdy metal housing, chromed.
- Small external hydraulic unit for direct mounting on the angle-stop valve or wall-mounted (optional) with reliable solenoid valve ROBUST (minimal level of water pressure surge) integrated waterproof battery box (in battery operated models only).
- Infrared sensor (with automatic setting feature), microprocessor.
- Follow-up time, sensor-sensitivity with Touch.
- Built-in filter.
- Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch.
- Continuous-on and hygienic flush time with Touch.
- 12, 24 or 48-hour hygienic flush with Touch.
- Compatible with Service APP and Service Monitor: control of stored operational data, settings and control functions.
Range of touchless, electronically controlled lavatory faucets.
Features and benefits:
- For connection to cold or premixed water.
- Sturdy metal housing, chromed.
- Small external hydraulic unit for direct mounting on the angle-stop valve or wall-mounted (optional) with reliable solenoid valve ROBUST (minimal level of water pressure surge) integrated waterproof battery box (in battery operated models only).
- Infrared sensor (with automatic setting feature), microprocessor.
- Follow-up time, sensor-sensitivity with Touch.
- Built-in filter.
- Temporary-off (cleaning) and continuous water flow time (filling of basin) adjustable with Touch.
- Continuous-on and hygienic flush time with Touch.
- 12, 24 or 48-hour hygienic flush with Touch.
- Compatible with Service APP and Service Monitor: control of stored operational data, settings and control functions.
Color
Silver
Silver
Silver
Finish
Chrome
Chrome
Chrome
Material
Brass
Brass
Brass
Shape
Other
Other
Other
Length
89 mm
89 mm
89 mm
Width
49 mm
49 mm
49 mm
Height
124 mm
124 mm
124 mm
Warranty description
Two year
Two year
Two year
SKU Code
133.040.11, 133.050.11, 133.056.11
133.040.11, 133.050.11, 133.056.11
133.040.11, 133.050.11, 133.056.11
Specification
Classification data
Standards
To DIN EN 200.
To DIN EN 200.
To DIN EN 200.
Approvals
CE marked.
CE marked.
CE marked.
Form
Automatic-action taps (touchless), 124 mm high.
Automatic-action taps (touchless), 124 mm high.
Automatic-action taps (touchless), 124 mm high.
Materials
-
-
-
Body
Brass.
Brass.
Brass.
Finish and colour
Chrome-plated.
Chrome-plated.
Chrome-plated.
Flow rate (maximum)
3.5 L/minute at 3 bar.
3.5 L/minute at 3 bar.
3.5 L/minute at 3 bar.
Water supply temperature (maximum)
80°C (designed for cold or premixed).
80°C (designed for cold or premixed).
80°C (designed for cold or premixed).
Integral accessories
IR sensor; flexible high-pressure hose.
IR sensor; flexible high-pressure hose.
IR sensor; flexible high-pressure hose.
Additional properties
Accessories
-
-
-
Power supply
6 V Lithium CRP2 - standard.
Mains operated (exposed).
VARIOconnect.
Connections
Angle valve: G 1/2".
Angle valve: G 1/2".
Angle valve: G 1/2".
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Switzerland
Switzerland
Switzerland
Country of product manufacture
Switzerland
Switzerland
Switzerland
Material
Brass
Brass
Brass
Recyclability
100%
100%
100%
