Summary

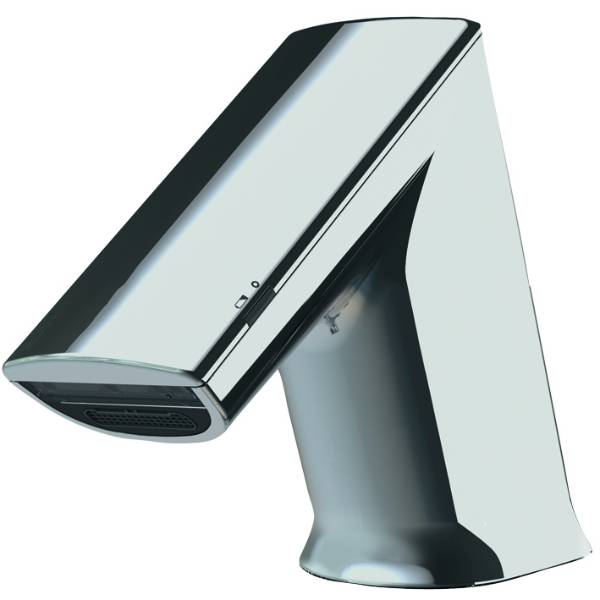

Range of small (124 mm high) touchless, electronically controlled lavatory faucets.
-
-
Application

Touchless, electronically controlled lavatory faucets.

-
-
Description

Range of small (124 mm high) touchless, electronically controlled lavatory faucets.


Features and benefits:

  • Part of the Ultra range (GM medium and GH tall models also available; specified separately).
  • Choice of power supply: battery, mains-operated or VARIOconnect.
  • Chrome-plated as standard.
  • Choice of water supply connections: cold/premixed (no temperature mixing) or hot & cold (temperature mixing), all with flexible high-pressure hoses.
  • Modular single-piece design without separate installation box, sturdy metal housing.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge). The solenoid valve can work from as little pressure as 0.3 bar.
  • Dual infrared sensors (with automatic setting feature), microprocessor.
  • Vandal-resistant aerator (replaceable with integrated tool).
  • Built-in filter.
  • TwistStop: integrated automatic shut-off to facilitate replacing or cleaning the filter (no shut-off to angle valves required).
  • One Tool Service / all system parts accessible from above.
  • 12 or 24-hour hygienic feature.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
  • Compatible with Service APP: Control of stored operational data, settings and control functions.
  • Also available in a wall-mount version.
  • Solid tails are available for this range upon request.


Note: No drain assembly option is included; if this is a requirement, see the GM or GH ranges (specified separately).

-
-
Color
Silver
-
-
Finish
Chrome
-
-
Material
Brass
-
-
Shape
Other
-
-
Length
106 mm
-
-
Width
51 mm
-
-
Height
124 mm
-
-
Warranty description
Two year
-
-
SKU Code
161.040.11, 161.050.11, 161.056.11, 161.000.11, 161.010.11, 161.016.11
-
-

Specification

Classification data
Standards
To DIN EN 200.
-
-
Approvals
CE marked.
-
-
Form
Automatic-action taps (touchless), 124 mm high.
-
-
Materials
-
-
-
Body
Brass.
-
-
Finish and colour
Chrome-plated.
-
-
Flow rate (maximum)
5.7 L/minute at 3 bar.
-
-
Water supply temperature (maximum)
80°C (designed for cold or premixed).
-
-
Integral accessories
IR sensor; flexible high-pressure hose.
-
-

Additional properties

Accessories
-
-
-
Power supply
4 x 1.5 V alkaline AA batteries.
-
-
Connections
Angle valve: G 1/2".
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Switzerland
-
-
Country of product manufacture
Switzerland
-
-
Material
Brass
-
-
Recyclability
100%
-
-
