Summary
Sound-absorbing panels with demountable tiles, for use where a lightweight functional ceiling is required.
Sound-absorbing panels with demountable tiles, for use where a lightweight functional ceiling is required.
Application
For applications where a standard suspended ceiling system is required, but where strict functional requirements are needed.
For applications where a standard suspended ceiling system is required, but where strict functional requirements are needed.
Description
Ecophon Gedina™ A has an exposed grid system with each tile individually demountable for easy access to above soffit. Ecophon Gedina™ A is made for applications which require an easy install, suspended ceiling and meet standard functional demands.
Gedina with Extra Bass is a suspended ceiling system especially developed for spaces where low-frequency absorption is required, i.e. classrooms. On top of the Gedina panel, a specially made low-frequency absorber is placed: Ecophon Extra Bass. Extra Bass should cover at least 50% of the total ceiling area. Note that installation according to installation diagram M118 contributes to a higher live load capacity than M237.
The system consists of Ecophon Gedina tiles and Ecophon Connect grid systems, with an approximate weight of 2.5 kg/m².
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ T coating, and the back of the tile is covered with glass tissue.
- Ecophon Gedina can be supplied with primed edges or natural edges.
- The grid is manufactured from galvanized steel.
- For best performance and system quality, use Ecophon Connect grid and accessories.
Ecophon Gedina™ A has an exposed grid system with each tile individually demountable for easy access to above soffit. Ecophon Gedina™ A is made for applications which require an easy install, suspended ceiling and meet standard functional demands.
Gedina with Extra Bass is a suspended ceiling system especially developed for spaces where low-frequency absorption is required, i.e. classrooms. On top of the Gedina panel, a specially made low-frequency absorber is placed: Ecophon Extra Bass. Extra Bass should cover at least 50% of the total ceiling area. Note that installation according to installation diagram M118 contributes to a higher live load capacity than M237.
The system consists of Ecophon Gedina tiles and Ecophon Connect grid systems, with an approximate weight of 2.5 kg/m².
Features and benefits:
- The tiles are manufactured from high-density glass wool.
- The visible surface has an Akutex™ T coating, and the back of the tile is covered with glass tissue.
- Ecophon Gedina can be supplied with primed edges or natural edges.
- The grid is manufactured from galvanized steel.
- For best performance and system quality, use Ecophon Connect grid and accessories.
Product certifications
Digital objects
Color
White
White
Finish
Painted, Primed, Natural
Painted, Primed, Natural
Material
High-density glass wool
High-density glass wool
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm, 1200 mm
600 mm, 1200 mm
Height
15 mm
15 mm
Warranty description
Ten year, 50 year
Ten year, 50 year
SKU Code
M118
M237
Specification
Classification data
Ceiling support
Interlocking Connect™ T15 grid., Interlocking Connect™ T24 grid.
Interlocking Connect™ T24 grid.
Support fasteners
Adjustable hangers/ wire., Direct fixing brackets.
Adjustable hangers/ wire., Direct fixing brackets.
Ceiling units
Gedina A high-density glass wool tiles.
Gedina A high-density glass wool tiles.
System accessories
None., Connect™ Bridging Profile and Clip., Connect™ Edge Tool E., Connect™ E-Plug., Connect™ Inspection Panel C1., Connect™ Lighting Clip., Connect™ Universal Clip., Connect™ Ventilation Grill., Edge sealant., Extra Bass.
None., Connect™ Bridging Profile and Clip., Connect™ Edge Tool E., Connect™ E-Plug., Connect™ Inspection Panel C1., Connect™ Lighting Clip., Connect™ Universal Clip., Connect™ Ventilation Grill., Edge sealant., Extra Bass.
Additional properties
Size (l x w)
600 x 600 mm., 600 x 1200 mm., 1200 x 1200 mm.
600 x 600 mm.
Tile thickness
15 mm.
15 mm.
Edges
Natural., Primed.
Natural., Primed.
Grid colour
Black 01 matt., Grey 01 metallic., White 01.
Black 01 matt., Grey 01 metallic., White 01.
Trim
Connect™ Angle Trim C1., Connect™ Distance Trim., Connect™ F Trim., Connect™ Shadowline Trim.
Connect™ Angle Trim C1., Connect™ Distance Trim., Connect™ F Trim., Connect™ Shadowline Trim.
Weight
2.5 kg/m².
2.5 kg/m².
Demounting depth (minimum)
120 mm.
120 mm.
Indoor climate
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1.
Moisture resistance
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Class C, relative humidity 95% and 30°C, according to EN 13964:2014.
Fire safety
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
Sound absorption
200 mm-deep system: in accordance with EN ISO 11654, Class A.
200 mm-deep system: in accordance with EN ISO 11654, Class A.
Sound insulation
18–20 dB Dnfw weighted normalized flanking level difference (to ISO 10848-2).
18–20 dB Dnfw weighted normalized flanking level difference (to ISO 10848-2).
Ceiling attenuation class
19–21 dB.
19–21 dB.
Articulation Class
180–190 AC (1.5).
180–190 AC (1.5).
Cleaning
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.
Grid
Exposed grid.
Exposed grid.
Installation

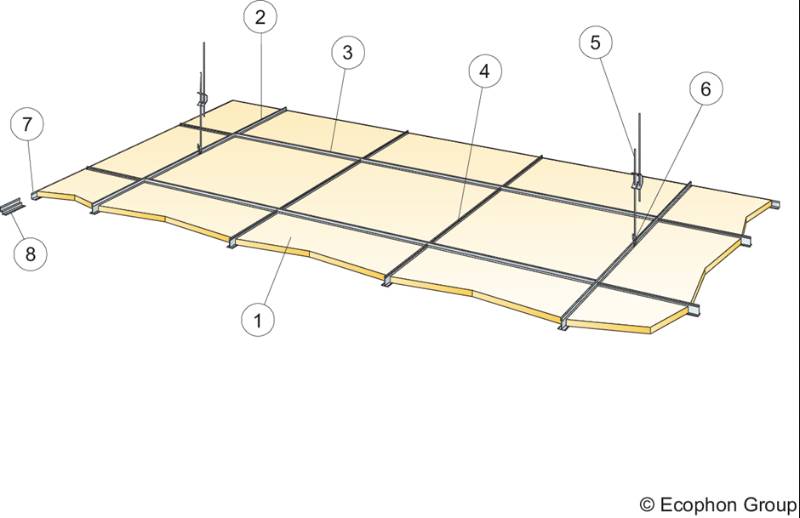

M118 – T15/ T24 suspended ceiling.

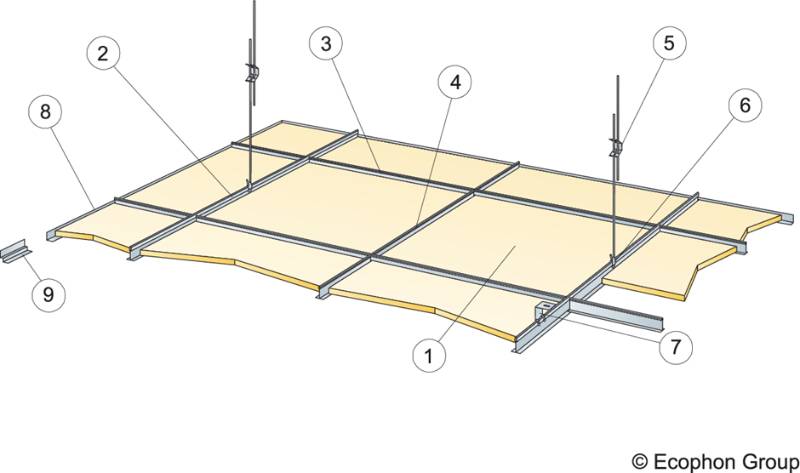

M237 – suspended ceiling.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Material
High-density glass wool
High-density glass wool
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
2.06
Certified
A1–A3 ('Production stage') :
2.06
Recyclability
100%
100%
Recycled content
46 %
46 %
Expected Life
50 year
50 year
