Summary

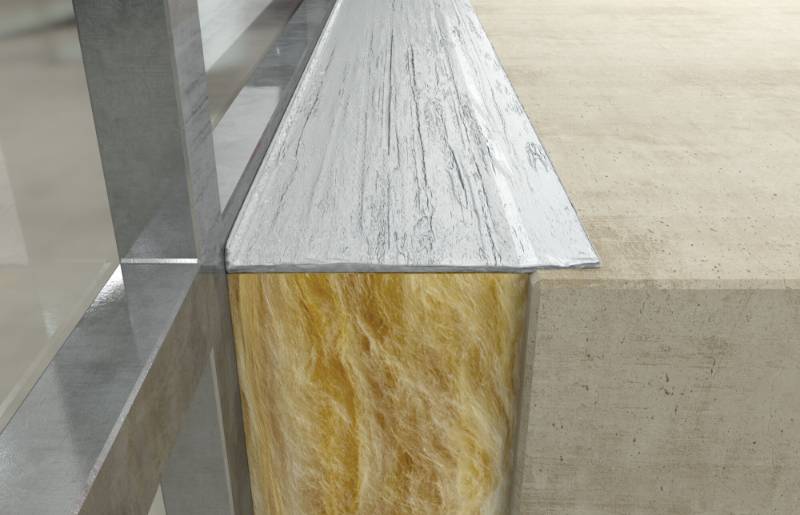

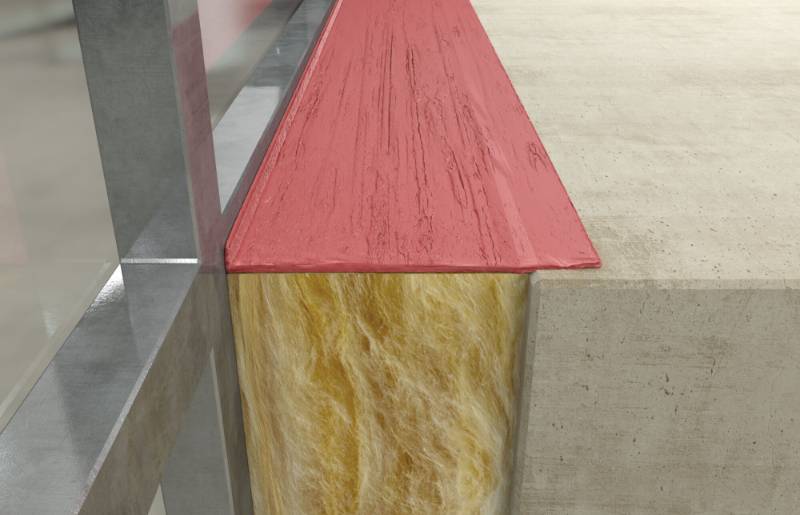

One-part water-based acrylic spray which has been designed to provide smoke and fire protection on horizontal construction joints, vertical penetrations and curtain wall perimeter joints.
One-part water-based acrylic spray which has been designed to provide smoke and fire protection on horizontal construction joints, vertical penetrations and curtain wall perimeter joints.
Color
White, Red
White, Red
Finish
Smooth
Smooth
Material
Acrylic
Acrylic
Shape
Formless
Formless
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Third-party certification
UL-EU certificate UL-EU-01276-EN.
European Technical Assessment ETA-23/0166 and ETA-23/0164.
Environmental Product Declaration EPD-DBC-FIW-20230413-IBF1-EN.
CE marking 0800-CPR-III-1170-4, 0800-CPR-III-1170-6.
UL-EU certificate UL-EU-01276-EN.
European Technical Assessment ETA-23/0166 and ETA-23/0164.
Environmental Product Declaration EPD-DBC-FIW-20230413-IBF1-EN.
CE marking 0800-CPR-III-1170-4, 0800-CPR-III-1170-6.
Sealant type
One-part water-based spray.
One-part water-based spray.
Colour
White.
-
Fire performance
-
-
Fire resistance
To EN 1366-3, EN 1364-4, ASTM-E 1966 (UL 2079).
To EN 1366-3, EN 1364-4, ASTM-E 1966 (UL 2079).
Reaction to fire
To EN 13501-1, Class D-s1, d1.
To ASTM E84, Class A.
To EN 13501-1, Class D-s1, d1.
To ASTM E84, Class A.
Colour
-
Red.
Additional properties
Curing time
Curing rate approx. 1 mm per 24 hours.
Skin-forming time approx. 60 minutes (at 23ºC and 50% relative humidity).
Skin-forming time approx. 60 minutes (at 23ºC and 50% relative humidity).
Curing rate approx. 1 mm per 24 hours.
Skin-forming time approx. 60 minutes (at 23ºC and 50% relative humidity).
Skin-forming time approx. 60 minutes (at 23ºC and 50% relative humidity).
Acoustic performance
Rw (C;Ctr) = 44 (-4;-9) dB.
Rw (C;Ctr) = 44 (-4;-9) dB.
Technical characteristics, other
Movement capability: ≤25% according to EN 1366-4, EN 1364-4/ UL 2079: Cycling 500 times, 15% movement as of ASTM E 1399 (Class II and III).
Movement capability: ≤25% according to EN 1366-4, EN 1364-4/ UL 2079: Cycling 500 times, 15% movement as of ASTM E 1399 (Class II and III).
Application thickness
Coating: 1.6 mm nominal, wet film thickness (dependent on application).
Coating: 1.6 mm nominal, wet film thickness (dependent on application).
Shelf life
18 months.
18 months.
pH value
7.8–8.8.
7.8–8.8.
Air permeability
No measurable air flow, positive and negative pressure tested to EN 1027.
No measurable air flow, positive and negative pressure tested to EN 1027.
Water permeability
No water penetration at up to 600 Pa tested to EN 1027.
No water penetration at up to 600 Pa tested to EN 1027.
Sustainability data
Material
Acrylic
Acrylic
A1-A3 (production stage)
Embodied carbon as defined in BS EN 15804
Normalised unit
1.3 kg CO₂ eq/kg
1.3 kg CO₂ eq/kg
Declared unit
1.32 kg CO₂ eq/kg
1.32 kg CO₂ eq/kg
