Summary

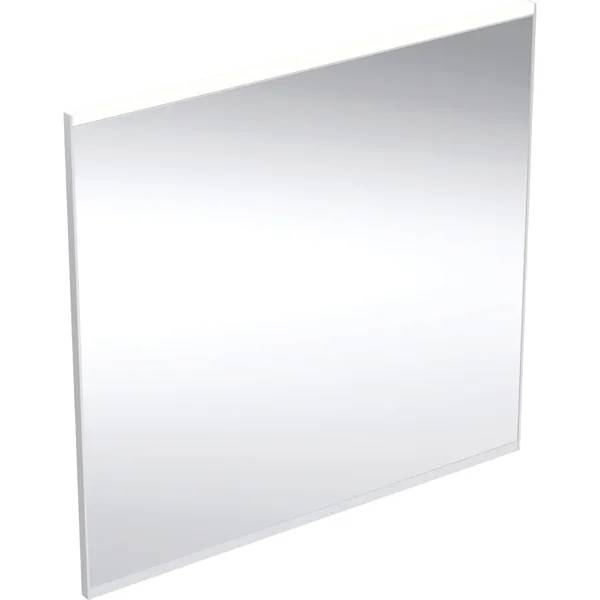

Illuminated bathroom mirror range.
-
-
Color
Silver, Black
-
-
Finish
Anodized
-
-
Material
Aluminium
-
-
Shape
Rectangle
-
-
Length
32 mm
-
-
Width
400 mm, 600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1600 mm
-
-
Height
700 mm
-
-
Specification
Product reference
502.780.00.1.
-
-
Material
-
-
-
Frame
Silver.
-
-
Glazing
Anodized aluminium.
-
-
Configuration
-
-
-
Shape
Rectangular.
-
-
Size
-
-
-
Length
32 mm.
-
-
Width
400 mm.
-
-
Height
700 mm.
-
-
Weight
Manufacturer's standard.
-
-
Lighting
-
-
-
Type
LED (direct and indirect); continuously dimmable.
-
-
Switch function
Touch sensor, with orientation light.
-
-
Energy rating
Light source energy efficiency class: F.
-
-
Integral accessories
Heated rear (to prevent mirror steaming up), with touch sensor switch and red indication light.
Geberit FlexInstall suspension.
-
-
Additional properties
Voltage
Nominal: 220–240 V a.c.
Operating: 24 V d.c.
Mains frequency: 50/ 60 Hz.
Operating: 24 V d.c.
Mains frequency: 50/ 60 Hz.
-
-
LED Colour
3000 K.
-
-
Protection class
I.
-
-
Power consumption
Lighting: 14.8 W.
Heating: 17.5 W.
Heating: 17.5 W.
-
-
Luminous flux
Maximum above/ below: 1850 lm.
Above: 1500 lm.
Below: 350 lm.
Above: 1500 lm.
Below: 350 lm.
-
-
Ingress protection
IP44.
-
-
Technical characteristics, other
Service life LED lighting: maximum 72 000 hours.
Measurement method: LM-80.
Measurement method: LM-80.
-
-
Sustainability data
Material
Aluminium
-
-
