Air movement in a building is important. Grilles are fitted into walls and some doors; and ductwork to keep fresh air circulating. But wherever air moves, fire and smoke can travel too. In a fire, our intumescent air transfer grilles expand to form a solid block that stops fire spreading. Wherever ventilation is needed through a fire-resisting wall or where ductwork runs through that wall, an intumescent air transfer grille should be fitted at that point to maintain fire compartmentation. Smoke protection is also vital. We offer a range of intumescent grilles and dampers with an added smoke control shutter: our Talkback system.
Cassette Type Damper - LVHCTD + LVH44/LVH54

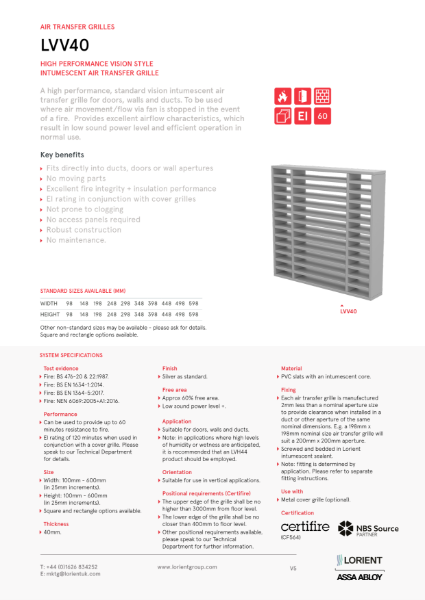

LVV40 Intumescent Air Transfer Grille
LVH44 Intumescent Air Transfer Grille
LVN25S Intumescent Air Transfer Grille
Intumescent Sealant
Steel Cover Grilles
Lorient Sealing Systems for Door Assemblies; An Introductory Guide
RJ008 letterplate FD30 fitting instructions
RJ008 letterplate FD60 fitting instructions
RJ007 FD30 fitting instruction
