GEC Anderson Data Sheet - DR187 (DG65)L Double Bowl With Drainer
Anderson, GEC Ltd
DR187 (DG65) Decimetric® 1800x700mm - double bowl, single drainer - commercial grade stainless steel sinktop. 40mm lipped front and side edges and 100x20mm rear upstand. Bowl size: 600x500x300mm deep complete with Ø38mm outlet and overflow fittings. Sound deadened and plastic protected. (EN 1.4301 grade stainless steel). LH drainer.
GEC Anderson Data Sheet - G45 Single Bowl
Anderson, GEC Ltd
Technical data sheet for GEC Anderson stainless steel single bowl: 400x500x250mm.
The bowl is complete with Ø38mm waste and overflow fittings.
Can be configured as required.
GEC Anderson Data Sheet - G155 Single Bowl
Anderson, GEC Ltd
Technical data sheet for GEC Anderson stainless steel single bowl: 1460x500x350mm.
The bowl is complete with Ø38mm waste and overflow fittings.
Can be configured as required.
GEC Anderson Data Sheet - Sink Bowl: T29
Anderson, GEC Ltd
The T29 is one of the GEC Anderson® standard range of individual stainless steel sinks.
• Internal bowl size: 290x400x160mm
• Fixing options: Undermount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - WC V130 HCP S
Anderson, GEC Ltd
WC V130 HCP S
V130 HCP Low flushing stainless steel WC and cistern with 6 litre stainless steel cistern, diaphragm flushing mechanism and push-button control. S-trap. For accessible use with 700mm projection. Drilled for seat and lid.

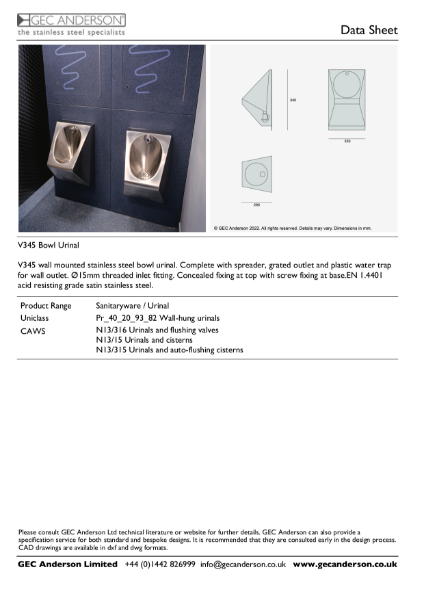

GEC Anderson Data Sheet - V345 Bowl Urinal
Anderson, GEC Ltd
V345 Bowl Urinal
V345 wall mounted stainless steel bowl urinal. Complete with spreader, grated outlet and plastic water trap for wall outlet. Ø15mm threaded inlet fitting. Concealed fixing at top with screw fixing at base.EN 1.4401 acid resisting grade satin stainless steel.
GEC Anderson Data Sheet - Series A sink: AD40T
Anderson, GEC Ltd
The AD40T is one of the GEC Anderson® Series A range of double stainless steel sinks, including tap landing. Series A sinks are of the highest quality and finish and are available in single, double and combination sizes.
• Internal bowl size: 400x400x200mm with 12mm corner radius • 90mm tap landing with Ø35mm taphole
• 20 mm flat flange (Overall size: 865x510mm)
• Fixing options: Undermount / Inset / Flushmount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - WC V130 HCP P
Anderson, GEC Ltd
V130 HCP Low flushing stainless steel WC and cistern with 6 litre stainless steel cistern, diaphragm flushing mechanism and push-button control. P-trap. For accessible use with 700mm projection. Drilled for seat and lid.
GEC Anderson Data Sheet - Series A sink: A55T
Anderson, GEC Ltd
The A55T is one of the GEC Anderson® Series A range of individual stainless steel sinks, including tap landing. Series A sinks are of the highest quality and finish and are available in single, double and combination sizes.
• Internal bowl size: 550x400x200mm with 15mm corner radius • 90mm tap landing with Ø35mm taphole
• 20 mm flat flange (Overall size: 590x510mm)
• Fixing options: Undermount / Inset / Flushmount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow fittings • Sound deadended and plastic protected
GEC Anderson Data Sheet - Splashback: Edged And backed
Anderson, GEC Ltd
GEC ANDERSON® STEEL SPLASHBACKS AND PANELS
Splashbacks from GEC Anderson® are made to measure using brushed satin stainless steel. • Folded edges with welded corners and substrate. 12 or 20mm edges.
• Alternatively, flat sheet, excluding substrate.
• Maximum single size: 4300 x 1600 mm.
• Cut-outs (e.g. for sockets) available as required.
• EN 1.4301 grade brushed satin stainless steel.
• Plastic protected.
GEC Anderson Data Sheet - Sink Bowl: BE70
Anderson, GEC Ltd
The BE70 is one of the GEC Anderson® standard range of individual stainless steel sinks.
• Internal bowl size: 700x440x240mm
• Fixing options: Undermount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - Sink Bowl: LM10 L
Anderson, GEC Ltd
LM10 stainless steel inset bowl and a half with integrated drainer recess (main bowl: 340 x 400 x 190mm; half bowl: 148 x 300 x 130mm; drainer recess: 350 x 300mm). Complete with fixing clamps, basket strainer waste and 1 No Ø35mm taphole. Overall size 980x500mm.(Main bowl left).
GEC Anderson Data Sheet - Shallow Recess
Anderson, GEC Ltd
GEC ANDERSON® SHALLOW RECESS
• A shallow recess formed within the work surface to surround the sink bowl(s). • Made in any size.
• Available with or without slope to bowl
• Corner radius: 0 mm, 10 mm or 15mm
• Minimum depth: 10 mm
GEC Anderson Data Sheet - G94 (350) Single Bowl
Anderson, GEC Ltd
Technical data sheet for GEC Anderson stainless steel single bowl: 860x420x350mm.
The bowl is complete with Ø38mm waste and overflow fittings.
Can be configured as required.
GEC Anderson Data Sheet - Series A sink: A3418
Anderson, GEC Ltd
The A3418 is one of the GEC Anderson® Series A range of combination stainless steel sinks. Series A sinks are of the highest quality and finish and are available in single, double and combination sizes.
• Main bowl (left): 340x400x200mm
• Small bowl (right): 180x400x170mm
• Corner Radius: 15mm
• 20 mm flat flange (Overall size: 585x440mm)
• Fixing options: Undermount / Inset / Flushmount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - Splashback: Flat Sheet
Anderson, GEC Ltd
GEC ANDERSON® STEEL SPLASHBACKS AND PANELS
Splashbacks from GEC Anderson® are made to measure using brushed satin stainless steel. • Folded edges with welded corners and substrate. 12 or 20mm edges.
• Alternatively, flat sheet, excluding substrate.
• Maximum single size: 4300 x 1600 mm.
• Cut-outs (e.g. for sockets) available as required.
• EN 1.4301 grade brushed satin stainless steel.
• Plastic protected.
GEC Anderson Data Sheet - Sink Bowl: BE50
Anderson, GEC Ltd
The BE50 is one of the GEC Anderson® standard range of individual stainless steel sinks.
• Internal bowl size: 500x400x200mm
• Fixing options: Undermount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - Sink Bowl: BE55
Anderson, GEC Ltd
The BE55 is one of the GEC Anderson® standard range of individual stainless steel sinks.
• Internal bowl size: 550x500x240mm
• Fixing options: Undermount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow • Sound deadended and plastic protected
GEC Anderson Data Sheet - Sink Bowl: LR25
Anderson, GEC Ltd
The LR25 is one of the GEC Anderson® standard range of circular individual stainless steel sinks.
• Internal bowl size: Ø250mm
• 20 mm flat flange (Overall size: Ø290mm)
• Fixing options: Undermount / Inset / Flushmount • EN 1.4301 brushed satin stainless steel
• Ø38mm waste and overflow
• Sound deadended and plastic protected
GEC Anderson Data Sheet - Series A sink: A45
Anderson, GEC Ltd
The A45 is one of the GEC Anderson® Series A range of individual stainless steel sinks. Series A sinks are of the highest quality and finish and are available in single, double and combination sizes.
• Internal bowl size: 450x400x200mm with 12mm corner radius • 20 mm flat flange (Overall size: 490x440mm)
• Fixing options: Undermount / Inset / Flushmount
• EN 1.4301 brushed satin stainless steel
• Ø89mm basket strainer waste (BSW) and overflow fittings • Sound deadended and plastic protected
GEC Anderson Data Sheet - Sink Bowl: V211
Anderson, GEC Ltd
The V211 is one of the GEC Anderson® standard range of circular individual stainless steel sinks.
• Internal bowl size: Ø300mm
• 12 mm flat flange (Overall size: Ø324mm) • Fixing options: Undermount
• EN 1.4301 brushed satin stainless steel
• Ø38mm waste and overflow
• Sound deadended and plastic protected
