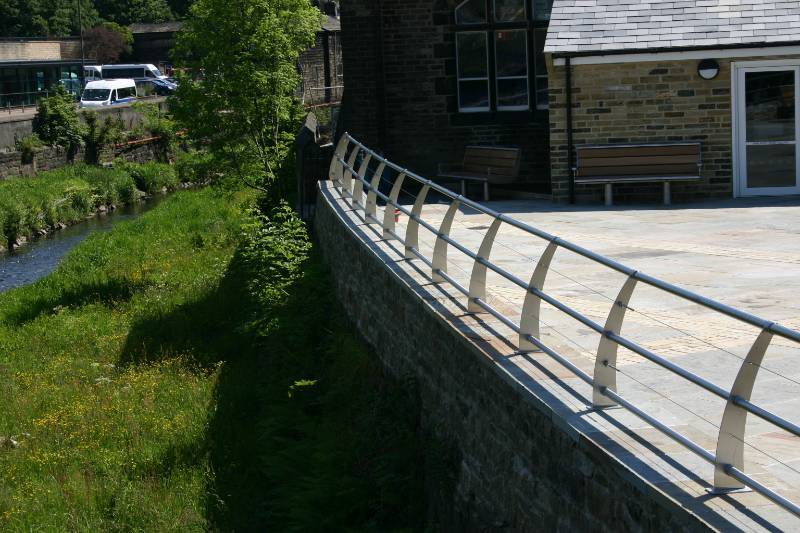

ASF were approached with a very much open book brief to offer a solution for a church square in Mytholmroyd, West Yorkshire. The area needed a wall top parapet, some glass balustrade, seating and tree grilles.ASF specified a wall top quayside post and rail, but using materials that offered the minimum interference with the view for people using the square whilst still meeting the needs of building regulations and parapet requirements. Uprights were from thinner, laser profiled materials with no T piece to make them as unobtrusive as possible and the rails were intermediately staggered with tension cables for the same reasons. Once installed the whole post and rail system was fully welded together on site to increase rigidity and strength. The job was then fully polished to offer a sublime finish quality.A small area of glass balustrade was installed at one end of the square where ground levels dropped away. A seat was paced in this area to allow people to sit and observe the river and wildlife through the glass.ASF 6012 seats were used all around the site offering seating for up to 36 people at one time.ASF 100% recycled cast iron tree grilles were also installed, and finished in a simple clear lacquer which maintains the gunmetal look of a new casting with just slight areas of oxidisation that are used as a feature of the finish.

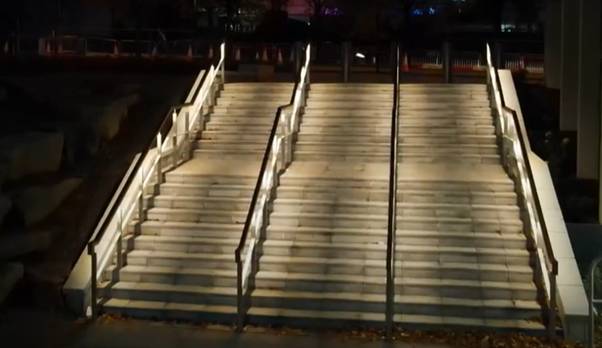

ASF were approached at very short notice to develop an illuminated handrail system for the above project. From point zero ASF had 8 weeks to design, develop, manufacture and deliver an illuminated handrail system using linear lighting in a bespoke square section and flat bar design set of step units - some in the style of the Spanish Steps and one large long and wide area. Atop the square section handrail was to be a timber cladding - this created some issues as the requirements and stability of the linear lighting were at odds with the movement created by the timber, so ASF had to be creative when designing a system that would suit all elements. The job was delivered on time and on budget and installed by a tame sister company that supplied fixing engineers and electricians to site, that were themselves manages indirectly by ASF.

ASF were approached with a well weathered post dating back to the mid 1880's with the hope that we could use this post to reproduce the originals. Resins and moulds were taken from this post and a new pattern produced, from which over 600 individual posts were cast and used in the renovation of the Roker Pier in Sunderland. ASF's on site foundry and pattern shop means that heritage jobs such as this can be taken on and completed using many of the original skills and techniques that were utilized when the first posts were made.

ASF were approached to supply the ASF 3001 Tree Grille and Tree Guard Combination in stainless steel, alongside a range of other stainless steel street furniture products. The grilles were manufactured in grade 316 stainless steel and supplied with a brush polished finish which offers that classic stainless steel sheen whilst being a robust enough finish to minimise marking up and discoloration.

ASF were approached by artists Lucy Strachan and Fred Baier who had produced conceptual drawings of laser cut tree grilles. Alongside these drawings was a brief that the guards should fit with invisible fixings into the ASF 303 cast iron tree grille. ASF took these concepts forward and produced a set of tree guards that met the needs of both the artistic concept and the required practical applications. The guards were first laser profiled and then rolled to the desired diameter. The guard halves then had to be hand fettled and blended so the pattern carried perfectly through 360 degrees.

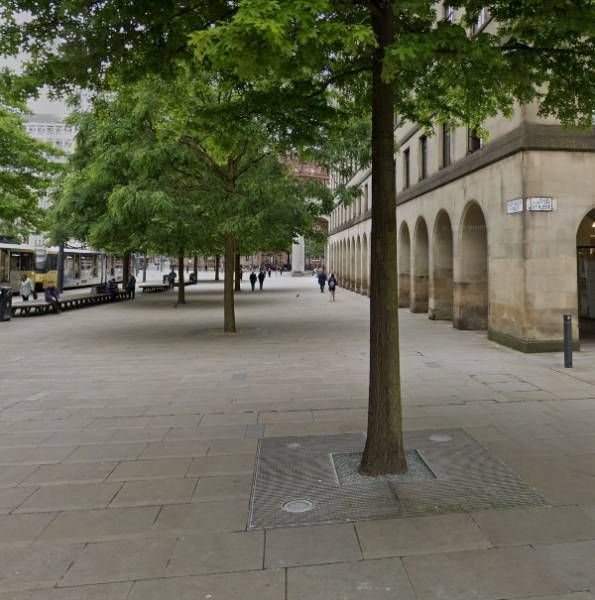

ASF were asked to manufacture tree grilles in the design of the ASF 3000 in stainless steel, but with structural design and calculation attached that met an 8 ton point loading, so that the grilles would be suitable for drive over by 15t+ street cleaners. ASF worked with site and our own structural engineers to produce grilles that met and exceeded the required standards.The top 'face' of the grille bars were also castellated to increase grip on the surface of the grilles.The grilles also hosted large uplighters that also allowed for an 8t point loadingThe grilles were manufactured in grade 316 stainless steel to these standards and finished passivate dipped, offering a stable finished patina that will last for many yearsThe grilles were manufactured to these standards

ASF supplied a combination of linear and spot light handrailing to the White City regeneration project for step units, ramps and general walkways. The lighting was decorative in the main with some areas requiring task lighting where there was a need to supplement the overhead lighting

ASF worked with artist Bernadette Hughes to develop these spectacular products. Highly decorative laser profiled panels were used to make seats, litter bins and signage. The detailed profiles themselves were manufactured in stainless steel plate and then powder coated, to retain the intricate laser cut details that would be lost is the sheets were galvanised after cutting. The outer shapes were then profiled from heavy duty mild steel sheet that was galvanised, and the two sheets mounted cheek by cheek with invisible fixings. The result isa highly visible design that is decorative, strong and has zero finger traps.
