Description

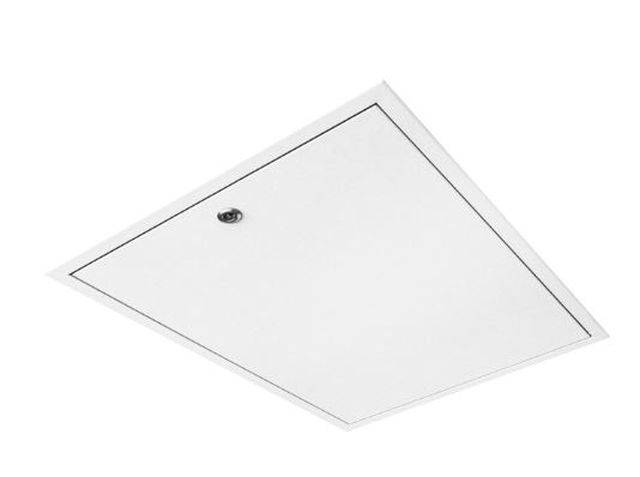

Fire-rated loft hatch.


Features and benefits:

  • Exceeds Building Reguilations Approved Document L and NHBC requirements.
  • Fire tested to BS EN 1364-2.
  • Smoke tested to BS EN 1634-3.
  • Air tested in UKAS accredited test house - consult manufacturer for further details.
  • Insulation is one hour certified by virtue of integrity.
  • Polyester powder-coated in white satin (RAL 9010) as standard.

General information

Color

White

Finish

Powder coated

Satin

Material

Polyester

Shape

Rectangle

Size

520 x 630 mm (clear opening once installed)

Guidance for specification option:

Structural opening: 555 x 755 mm.

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

Product range

Access

Specification data - Access panels

Fire resistance

One hour to BS EN 1364-2, BS EN 1634-3.

Position

Ceiling mounted.

Size

520 x 630 mm (clear opening once installed).

Guidance for specification option:

Structural opening: 555 x 755 mm.

Panel

-

Integral finish

Powder coated.

Depth

75 mm.

Weight

8.5 kg.

Acoustic performance

36 dB.

Guidance for specification option:

 (UKAS acoustic test).

Thermal transmittance (U-Value)

0.35 W/m²K.
