1050 Series (Stainless Steel) Duct
Verified by manufacturer 2 months ago

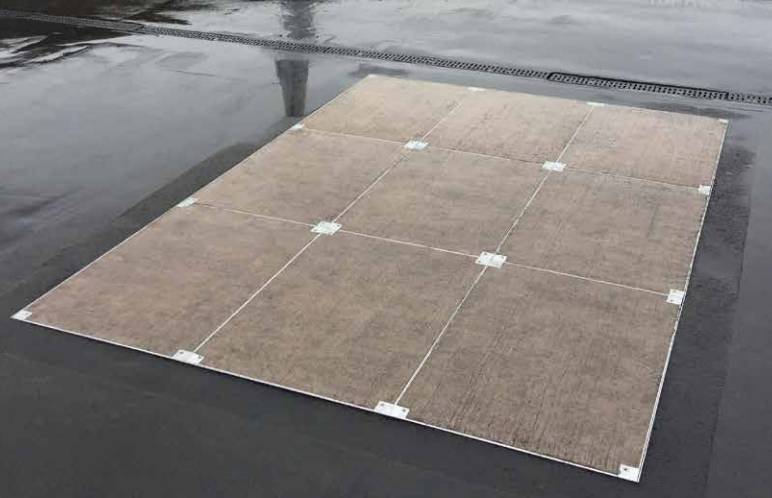

Stainless steel heavy duty floor access covers for up to 6.5 tonne pneumatic tyre wheel load (C250).
Application
Suitable for hard flooring within demanding environments and high traffic areas.
Description
The 1050 Series is available in single, duct or multipart configurations for use in interior or exterior areas, with 6.5 tonne pneumatic tyre wheel load, FACTA C supplied as standard or up to 11 tonne pneumatic tyre wheel load, FACTA D (equivalent to D400) available on request. Manufactured in the UK and third party CERTIFIRE fire rated to BS 476-22, all covers are manufactured to an exact specification with no time or cost constraint.
Features and benefits:
- Made to an specification between stated maximum and minimum sizes, with no time or cost constraint.
- Quick and easy to install ensuring minimum disruption.
- Provides easy access to underfloor services using lifting keys.
- Any configuration of ducts and branches can be created to provide a tailor-made floor access solution.
- Third party CERTIFIRE fire rated to BS 476-22 for stainless steel covers. Fire rated for 2 hours on integrity, and up to 2 hours on insulation depending on the floor access cover fill specification.
- Load rating 6.5 tonnes FACTA C supplied as standard or 11 tonnes FACTA D (equivalent to D400) available on request, to meet project requirements.
- Double sealed option provides the highest levels of hygiene and security.
- Typical floor finishes: External grade paving slabs including granite and concrete.
General information
Color | Silver |
Material | Stainless steel |
Shape | Square |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Overall frame size = clear opening + 130 mm e.g. 550 clear opening = 680 mm overall frame width. |
Height | 105 mm |
Uniclass | |
CAWS | P30/301 Access covers, manhole tops and frames P31/370 Access covers/ gratings R12/471 Access covers and frames |
Product range |
Specification data - Access covers, gratings and frames
Certification | CERTIFIRE fire rated to BS 476-22. |
Configuration | Floor duct. |
Finish | Galvanized steel. |
Clear opening (minimum) | 100 mm.Guidance for specification option: Clear opening size plus 130 mm. |
Load class (minimum) | C 250.D 400.Manufacturer guidanceUp to 6.5 tonne pneumatic tyre wheel load (FACTA C) as standard or up to 11 tonne pneumatic tyre wheel load (FACTA D, equivalent to D400) on request. |
Frame or support | Guidance for specification option: Show edge manufactured from stainless steel with steel baseplate and reinforcement. Galvanized carbon steel support beams and pockets (where necessary). |
Integral accessories | None.Recessed support beam pockets.Guidance for specification option: For use where support beams are required. Lifting points.Guidance for specification option: Barrel only and inset options available. Sets of combined lifting/ securing keys.Cover skate lifting device.Surface mounted support beam pockets.Guidance for specification option: For use where support beams are required. |
FrameSize | Guidance for specification option: Overall frame size = clear opening + 130mm e.g. 550 clear opening = 680 mm overall frame width. |
Cover and frame | Stainless steel, grade 1.4301 (304). Guidance for specification option: Standard. Stainless steel, grade 1.4401 (316). |
Base plate | Galvanized steel. Guidance for specification option: Standard. Stainless steel, grade 1.4301 (304). Stainless steel, grade 1.4401 (316). |
Sealing | Double sealed with socket head securing bolts. Unsealed with blanking bolts. Manufacturer guidanceIncludes all necessary removable sealing cross-members and support beams (where necessary). |
FireRating | Two hours. Guidance for specification option: To BS 476-20. |
Depth | 105 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Stainless steel |
