200 Series Built-in Wine Cabinet
Verified by manufacturer 6 months ago

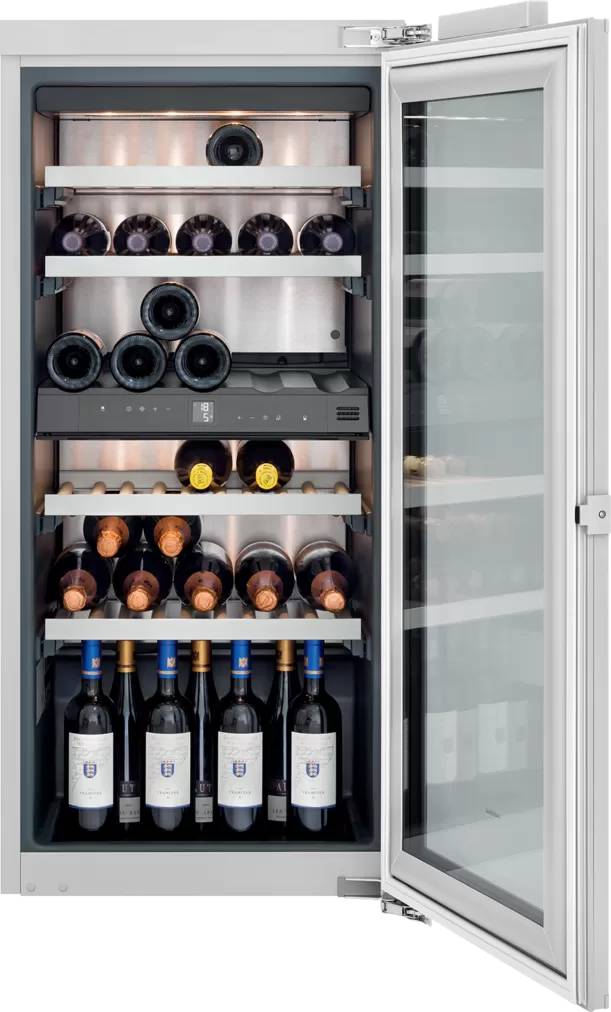

RW282263 200 SERIES Built-in wine climate cabinet, two separate temperature zones, 178 cm niche, SN-ST
RW282263 200 SERIES Built-in wine climate cabinet, two separate temperature zones, 178 cm niche, SN-ST
Wine cooler with glass door.
Application
Wine cooler.
Description
200 series wine cooler with glass door, 122 or 177.2 x 56 cm.
Features and benefits:
- Humidity level can be increased to avoid drying out of cork
- Two independently controllable climate zones
- Extendable bottle trays in beech and aluminium
- Consistent temperatures with exact control from 5–20°C.
- Door opening angle of 115°, fixable at 90°.
General information
Color | Clear |
Material | Glass |
Shape | Rectangle |
Length | 456 mm |
Width | 540 mm |
Height | 506 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Refrigerators
Installation | Built-in. |
Format | Wine cabinet. |
Dimensions | |
Height (maximum) | 1772 mm. |
Width (maximum) | 546 mm. |
Depth (maximum) | 553 mm. |
Net storage | 259 L. |
Shelves | Ten bottle trays, eight of which are extendable.Manufacturer guidanceCapacity 80 bottles (based on 0.75 L standard bottles). |
Door arrangement | Glass door. |
Features | Dynamic cold air distribution. |
Rating | Energy consumption 162 kWh/year. |
EU energy label rating (minimum) | G. |
Accessories | RA050220: Carbon airfilter. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Models and Dimensions 2024 Edition l
The Range 2024
