200 Series Telescopic Extractor

Verified by manufacturer 5 months ago

Gaggenau

Telescopic extractor.

Jump to:
BOS
+44 (0) 3448 928988 Website

Application

Kitchen ventilation.

Description

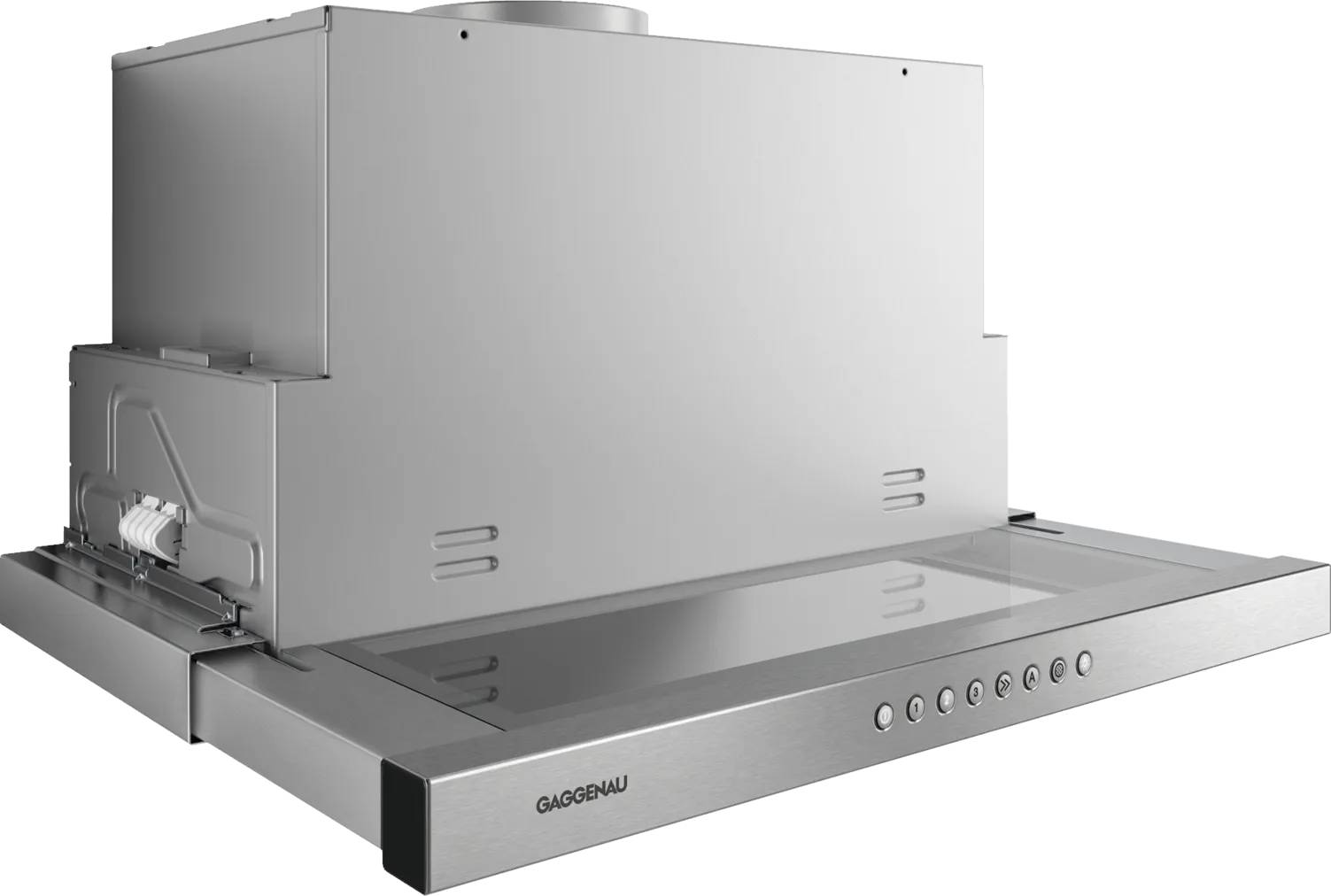

200 series flat kitchen hood, 60 cm. Stainless steel.


Features and benefits:

  • Especially quiet operation thanks to integrated sound insulation.
  • Unobtrusive flat kitchen hood design thanks to integrated glass sheet in the steam screen.

General information

Color

Silver

Finish

Metallic

Stainless steel

Material

Stainless steel

Shape

Rectangle

Width

600 mm

Warranty description

Five year

Uniclass

Pr_60_65_94_45 Kitchen canopiesPrimary

CAWS

N11/40 Appliances

N11/360 Appliances

U90/413 Ventilation fan units

Specification data - Kitchen canopies

Arrangement

Overhead wall – wall-mounted.

Extract flow rates

Air extraction: 515/ 953m³/h. 57/ 71 dB (A) re 1 pW.

Material

Stainless steel.

Accessories

AA210110: Active charcoal filter f. recirc. module.

AA211812: Recirculation module w.active charcoal.

AA210460: Lowering frame, 60 cm.

Included features

Controls at front.
Three electronically controlled power levels and one intensive mode.
Automatic function with sensor-controlled run-on function.
Grease filter saturation indicator.
Stainless steel grease filter, dishwasher-safe.
Neutral white LED light (3500 K), continuously dimmable.
Lamp output 2 x 1.5 W.
Illuminance 294 lx.
Light can be switched on separately.
Fan technology with highly efficient, brushless DC motor (BLDC).
Integrated sound insulation for quiet operation.
The fan is activated when the steam screen is extended.
Patented technology for extension of the steam screen.
Extendable steam screen 198 mm.
Airflow-optimised interior for efficient air circulation and ease of cleaning.
Patented easy mounting system for simple installation.
The package includes an one-way flap.

RecirculatedAir

Air recirculation: 497/ 885m³/h. 62/ 69 dB (A) re 1 pW.

Rating

264 W.

Energy rating

A.

Sustainability data

Material

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

1
