25_14 Channel System Steel

Name: 25_14 Channel System Steel
Brand: Tec Ties Ltd
SKU: 7WCkpEKRyEiEU2xV9Q2u8R

Verified by manufacturer 13 hours ago

TTCH/100

Tec Ties Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type

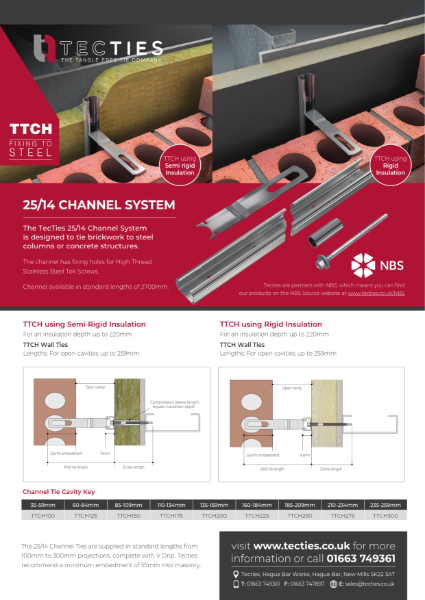

A channel tie system designed to tie brickwork to steel columns.

Jump to:

+44 (0)1663 749361 Website

Application

Designed to tie brickwork to steel columns.

Description

The TecTies 25/14 Channel System is designed to tie brickwork to steel columns. The channel has fixing holes for stainless steel screws and it is recommended that they are positioned at 450 mm vertical centres. Available in standard lengths of 2700 mm.

The 25/14 Channel Ties are supplied in standard lengths of 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 225 mm, 250 mm, 275 mm and 300 mm projections complete with V Drip. TecTies recommend a minimum embedment of 62.5 mm into masonry.

Features and benefits:

Two diameter holes to accept different fixings.
Pre-punched holes at close centres to ensure a fixing position is always located near the end.
The channel has a 16 mm opening to easily accommodate a drive socket and washer for the High thread stainless steel tek fixing screws.

General information

Color	Silver
Material	Steel
Shape	Rectangle
Length	300 mm 275 mm 250 mm 225 mm 200 mm 175 mm 150 mm 125 mm 100 mm Show more
Height	2700 mm

Uniclass	Pr_20_85_84_19 Cavity wall tiesPrimary
CAWS	F30/26 Wall ties F30/220 Wall ties

Specification data - Cavity wall ties

Standard	To BS EN 846-6:2012.
Tie type	PD 6697 Type 1 (Masonry – heavy duty). Guidance for specification option: Insulation thickness: 220 mm (max). Vertical tile spacing: 225 mm. Vertical fixing spacing: 225 mm. PD 6697 Type 2 (Masonry – general purpose). Guidance for specification option: Insulation thickness: 220 mm (max). Vertical tile spacing: 450 mm. Vertical fixing spacing: 337.5 mm. PD 6697 Type 3 (Masonry – basic). Guidance for specification option: Insulation thickness: 220 mm (max). Vertical tile spacing: 450 mm. Vertical fixing spacing: 337.5-450 mm. PD 6697 Type 4 (Masonry – light duty). Guidance for specification option: Insulation thickness: 220 mm (max). Vertical tile spacing: 450 mm. Vertical fixing spacing: 337.5-450 mm.
Material	Steel.
Length	100 mm.
Design embedment length (minimum)	62.5 mm.
Additional requirements	-
Compressive load capacity	1160 N.
Tensile load capacity	1150 N.

Cavity	35-59 mm.
Fixings	65 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 27-46 mm. 82 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 35-61 mm. 100 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 43-79 mm. 115 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 60-94 mm. 135 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 65-114 mm. 150 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 80-129 mm. 180 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 110-159 mm. 240 mm. Guidance for specification option: Screw length. Insulation/ backing material thickness: 165-220 mm. Show more
Opening	16 mm.
Type	Rigid. Semi-rigid.
For fixing to	Steel.

Sustainability data

Contains Red List materials	No
Country of material origin	India
Country of product manufacture	United Kingdom
Material	Steel
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
