30 cm Domino Gas Hobs
Verified by manufacturer 2 days ago
iQ700, Domino Gas Hob, 30 cm, Ceramic, Black ER3A6AB70
iQ700, Domino Gas Hob, 30 cm, Ceramic, Black ER3A6AB70
Gas hob with stepFlame technology for precise flame control in nine steps.
Application
For domestic applications.
Description
Domino gas hob 30 cm, ceramic in black.
Features and benefits:
- stepFlame Technology – precise flame control with nine different settings.
- Dishwasher-proof pan supports – cut the time spent cleaning the hob.
- High-quality materials and workmanship – continuous cast-iron pan supports.
- Biomethane ready – power the gas hob with renewable biomethane gas.
- Siemens burner design is extremely flat in comparison to a standard burner.
Models:

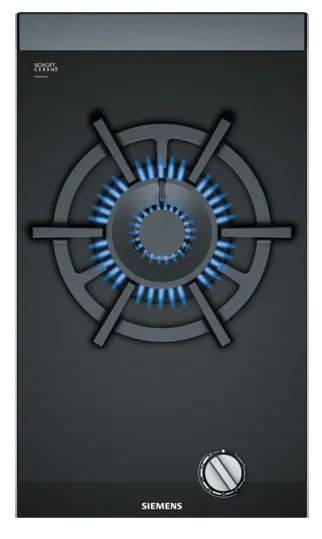

- ER3A6AB70: 30 cm wok domino hob, 6.0 kW wok burner, stepFlame, cast iron supports.

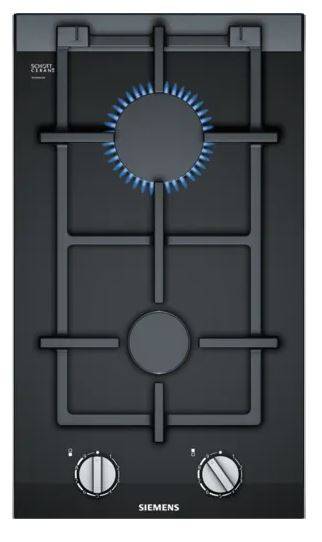

- ER3A6BB70: 30 cm gas domino hob, two burners, stepFlame, dishwasher proof cast iron supports.
General information
Color | Black |
Material | Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 302 mm |
Height | 47 mm 59 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances N12/330 Cooking equipment |
Specification data - Built-in gas hobs
Hob arrangement | One burner gas hob; one 6.1 kW burner front centre.Guidance for specification option: One burner gas hob including:
|
Material and finish | Black tempered glass. |
Dimensions | |
Width (maximum) | 302 mm. |
Depth (maximum) | 520 mm. |
Type of gas | Natural.Guidance for specification option: L/LL G25/20 mbar(DE). |
Gas connection | Factory set for connection to mains gas. |
Electrical supply | 220–240 V. |
Features | Cast iron pan supports. |
Frequency | 50; 60 Hz. |
Fuse rating | 3 A. |
Cable length | 100 cm. Manufacturer guidanceLength electrical supply cord. |
Rating | 6.1 kW. Manufacturer guidanceGas connection rating. |
Accessories | Not required. HZ394301: Connecting strip. HZ298113: Small pot support. HZ298105: Simmer plate. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

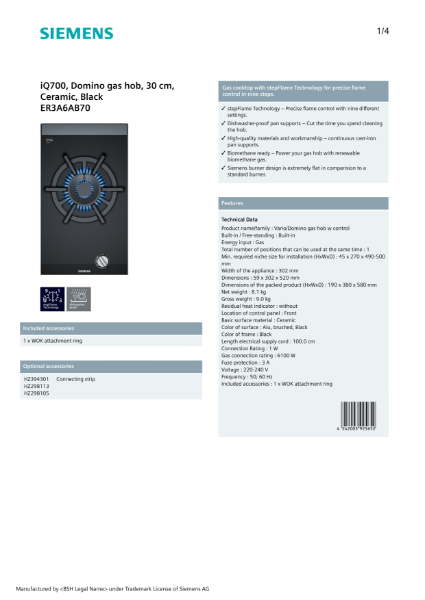

iQ700, Domino gas hob, 30 cm, Ceramic, Black ER3A6AB70

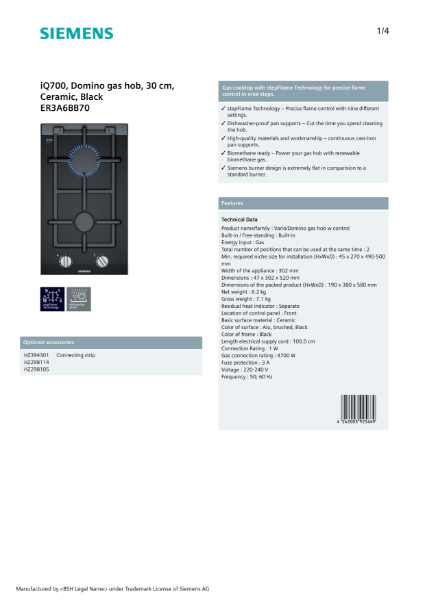

iQ700, Domino gas hob, 30 cm, Ceramic, Black ER3A6BB70
