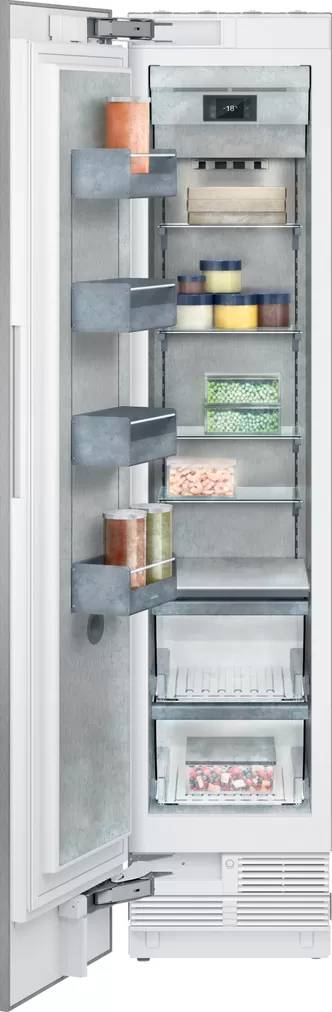

400 Series 18" Vario Cooling Modular Freezer Single Door

Verified by manufacturer 5 months ago

Gaggenau

Vario cooling single door modular freezer.

Jump to:
BOS
+44 (0) 3448 928988 Website

Application

Freezing appliance.

Description

400 series vario freezer, 212.5 x 45.1 cm, flat hinge. Without ice maker.


Features and benefits:

  • Stainless steel interior with solid anthracite aluminium elements.
  • Glare-Free LED Light Spots.
  • Home Connect.
  • Dynamic cold air distribution.
  • Automatic defrosting with defrost water evaporation.
  • Cushioned door closing system.
  • Rest mode certified by Star-K.
  • When rest mode is active, the appliance can only be opened using a handle.
  • Open-door and malfunction alarm.

General information

Color

Silver

Finish

Metallic

Material

Stainless steel

Aluminium

Shape

Rectangle

Length

608 mm

Width

451 mm

Height

2029 mm

Warranty description

Five year

Uniclass

Pr_40_70_26_31 FreezersPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Freezers

Installation

Built-in.

Material and finish

Stainless steel.

Format

Upright.

Freezing capacity

16 kg/ 24h.

Safety rating

Four star.

Power cut safe time

6 h.

Drawers

Two fully extendable drawers with transparent front.

Shelves

Four safety glass shelves, white glass, four of which are individually height adjustable.

Door arrangement

Flat door rail system with fully flexible positioning of door racks. Four height-adjustable door racks.

Features

No-frost technology with fast freezing at -30 °C.
Temperature adjustable from -24 °C to -14 °C.
Brilliant LED light spots with warm white, glare-free light (3500 K).

Rating

Energy consumption 246 kWh/year.

EU energy label rating (minimum)

E.

Accessories

RA421110: SS door 45, 7cm / 18".

RA423140: Side trims, long.

RA425110: Vario SS handle 1131 mm.

RA428110: SS door w/o handle 45, 7cm / 18".

RA460013: Heating side kit 230 V.

Show more

Sustainability data

Material

Stainless steel

Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

The Models and Dimensions 2024 Edition l

The Models and Dimensions 2024 Edition l

The Range 2024

The Range 2024
