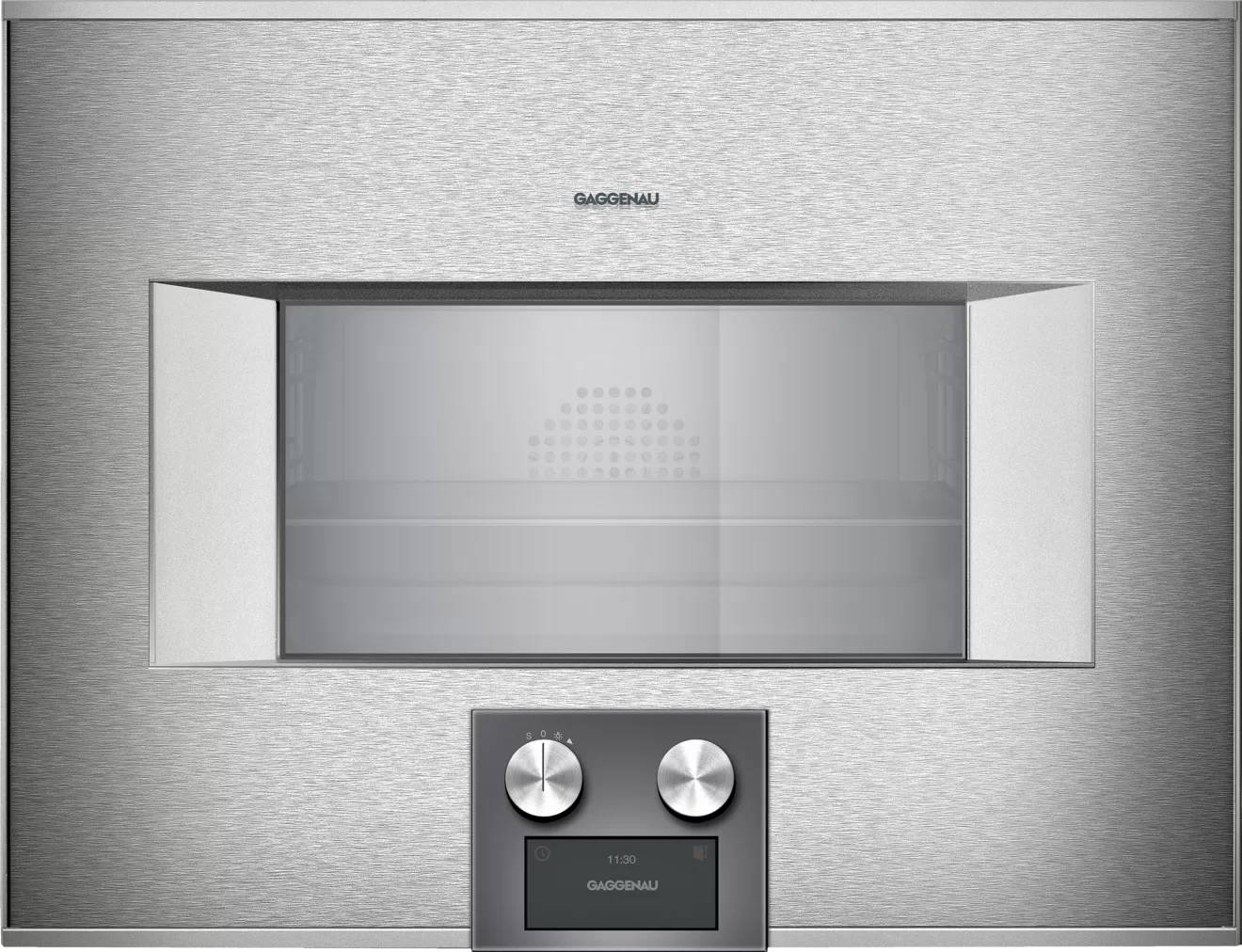

400 Series 60 cm Combination Steam Oven BOTTOM Control
Verified by manufacturer 6 months ago
BS474112 400 series COMBI STEAM OVEN, 60cm, FIXED WATER CONNECTION, IR GRILL, SOUS VIDE, AUTOMATIC CLEANING, Stainl. Steel/Glass RH Bottom control panel, HC
BS474112 400 series COMBI STEAM OVEN, 60cm, FIXED WATER CONNECTION, IR GRILL, SOUS VIDE, AUTOMATIC CLEANING, Stainl. Steel/Glass RH Bottom control panel, HC
Combination steam oven.
Application
Cooking appliance.
Description
Built in combination steam oven with left or right side-opening hinged door.
Features and benefits:
- Handleless door / automatic door opening.
- Combination of hot air and steam.
- Fixed inlet and outlet water connection.
- Home Connect.
- Automatic self-cleaning programme.
- Full surface grill 2 KW behind glass ceramic.
- Steam removal.
- Misting.
- Three-point core temperature probe with automatic shut-off and estimation of cooking time.
- Automatic programmes.
- Actual temperature display.
- Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer (certified by Star-K).
- Automatic boiling point detection.
- 2 x LED light on the side.
- Hygienic stainless steel cooking interior.
- Three tray levels.
General information
Color | Silver Grey |
Finish | Metallic Stainless steel |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 540 mm Guidance for specification option: Depth |
Width | 590 mm |
Height | 455 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances N12/330 Cooking equipment N12/330 Cooking equipment |
Specification data - Built-in electric ovens
Arrangement | Single oven. |
Material and finish | Stainless steel. |
Dimensions | |
Height (maximum) | 455 mm. |
Width (maximum) | 590 mm. |
Depth (maximum) | 540 mm. |
Capacity (minimum) | 50 L. |
Doors | Right-hinge. |
Features | Automatic cleaning. |
Rating | 3.1 kW. |
EU energy label rating (minimum) | A. |
Operating temperature range | 30–230°C. |
Accessories | Outlet hose 3 m |
Sustainability data
Material | Stainless steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Models and Dimensions 2024 Edition l
The Range 2024
