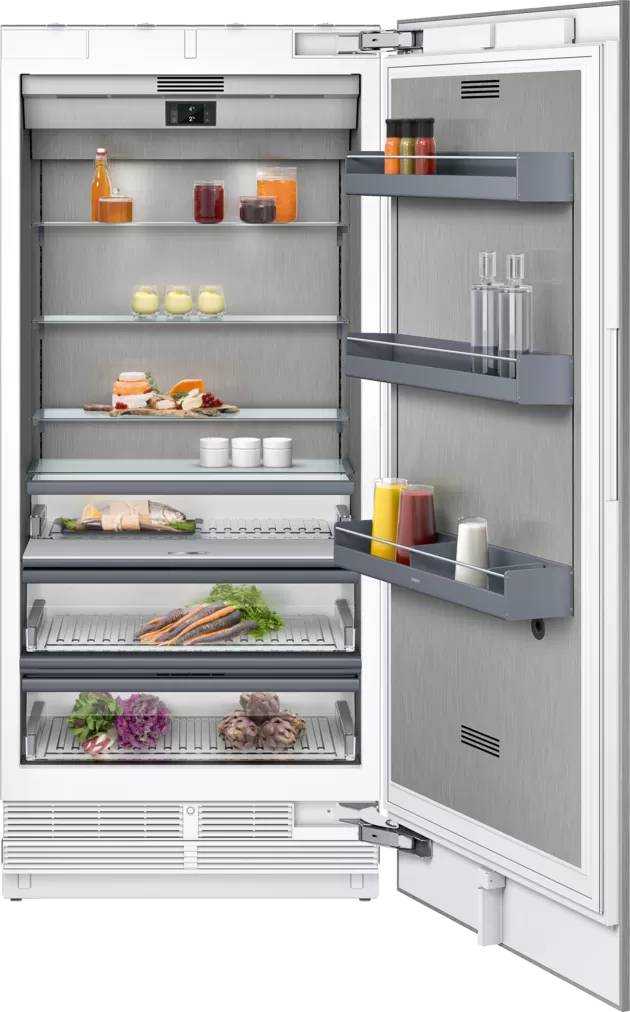

400 Series Vario Cooling Modular Fridge Single Door
Verified by manufacturer 1 month ago
RC492305 Vario cooling 400 series, fridge, FC0°, 36" (91.4 cm), Door Opening Assist, HC Ready
RC492305 Vario cooling 400 series, fridge, FC0°, 36" (91.4 cm), Door Opening Assist, HC Ready
Vario cooling single door modular fridge.
Application
Cooling appliance.
Description
400 series vario refrigerator, 212.5 x 90.8/ 75.6/ 60.3 cm, soft close flat hinge.
Features and benefits:
- Stainless steel interior with solid anthracite aluminium elements.
- Opening assist for door with two options.
- Fresh cooling drawer close to 0°C.
- TFT Touch Display.
- Glare-Free LED Light Spots.
- Flat hinge.
- Door hinge right, reversible.
- Door opening angle of 115°, fixable at 90°.
- Dynamic cold air distribution.
- Automatic defrosting with defrost water evaporation.
- Cushioned door closing system.
- Activated charcoal air filter.
- Rest mode certified by Star-K.
- When rest mode is active, the appliance can only be opened using a handle.
- Open-door and malfunction alarm.
- Home Connect.
General information
Color | Silver |
Finish | Metallic |
Material | Stainless steel Aluminium |
Shape | Rectangle |
Length | 608 mm |
Width | 908 mm 756 mm 603 mm |
Height | 2029 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Specification data - Refrigerators
Installation | Built-in. |
Material and finish | Stainless steel. |
Format | Upright. |
Dimensions | |
Height (maximum) | 2029 mm. |
Width (maximum) | 908 mm. |
Depth (maximum) | 608 mm. |
Net storage | 494 L. |
Drawers | One large, fully extendable fresh cooling 0°C drawer with transparent front, illuminated. |
Shelves | Three safety glass shelves, white glass, individually adjustable in height. |
Door arrangement | Three height adjustable door racks, one of which is extra deep. Door reversible. |
Features | Fast cooling. |
Rating | Energy consumption 182 kWh/year. |
EU energy label rating (minimum) | E. |
Accessories | RA430100: Storage container with lid, anthracite. RA428911: SS door w/o handle 91.4 cm / 36". RA460000: Installation kit SxS. RA460013: Heating side kit 230V. RA460020: Frontpanel connection long. |
Sustainability data
Material | Stainless steel Aluminium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Range 2024
The Models and Dimensions 2024 Edition l
