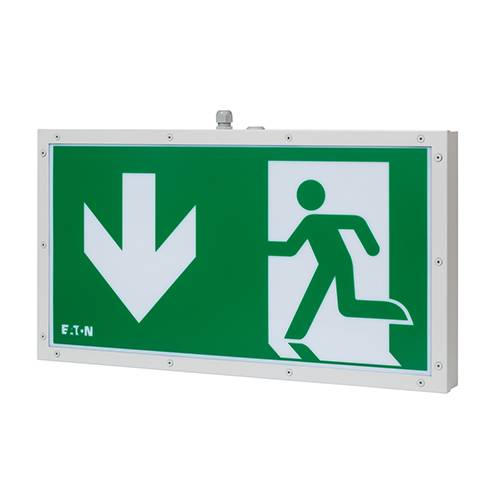

46011 LED (60 m) CG-S - Safety and Exit Sign Luminaires

Verified by manufacturer 4 months ago

Eaton Electric

Central battery 60 m safety and exit sign with high ingress protection (IP65).

Jump to:
01753 608 700 Website

Application

Particularly suitable for use in outdoor areas and areas with high soiling, as well as for areas with hygienic requirements.

Description

The 46011 LED CG-S luminaire fulfils protection rating IP65 and with UV-resistant materials and especially tough construction particularly suitable for use in outdoor areas and areas with high soiling, as well as for areas with hygienic requirements. The operating conditions of the LEDs are designed for a service life of up to 50 000 hours, thus significantly minimizing maintenance requirements.


Features and benefits:

  • LED escape sign luminaire with high protection class (IP65) and high viewing distance of 60 m.
  • Suitable for use outside by using a screw gland with a ventilation membrane.
  • Silk-screened pictogram and robust panel (polycarbonate).
  • Excellent perceptibility on account of high luminance of the white contrasting colour >500 cd/m² in keeping with standard DIN 4844-1 and high uniformity Lmin/Lmax >0.8.
  • Minimum service requirement due to high service life of the LEDs (up to 50 000 hours).
  • Shortened inspection effort due to CEWA GUARD technology.
  • Automatic function monitoring of up to 20 luminaires per circuit.
  • Reduced installation expenditures by STAR technology.
  • Freely programmable mixed operation of the switching modes per luminaire in one circuit.
  • For dry, dusty areas, the 46011 LED HYG CG-S is recommended. Especially low connected loads are achieved with use of LED technology.

General information

Color

White

Material

Polycarbonate

Metal

Shape

Rectangle

Length

61 mm

Manufacturer guidance

Depth.

Width

654 mm

Height

354 mm

Uniclass

Pr_70_70_48_25 Emergency luminairesPrimary
Pr_70_70_48_23 Dedicated slave emergency luminaires

CAWS

V90/550 Centrally supplied emergency luminaires

V90/510 General purpose luminaires

V90/510 General-purpose luminaires

Specification data - Emergency luminaires

Luminaire description

Exit sign luminaire with high power LEDs.

Classification

-

Ingress protection (minimum)

IP65.

Circumstances of use

Normal.

Type

Z.

Rated maximum ambient temperature

40°C.

Guidance for specification option:

Permissible ambient temperature: -20 °C to +40 °C.

Impact protection (minimum)

IK08.

Controlgear position

Integral within luminaire.

Supply circuit conductor connections

Guidance for specification option:

Supply terminals: 3 x 2 x 2.5 mm² (max. 2 A).

Nominal voltage

220–240 V a.c (50/60 Hz).
176–275 V d.c.

Luminaire power factor

Not applicable.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

Guidance for specification option:

Light source: high power LEDs 8 x 1 W.

Wattage

10.3 W.

Guidance for specification option:

Power consumption mains operation (effective power): 17.1 VA.

Manufacturer guidance

Power consumption mains operation (apparent power).

Useful life

High service life (up to 50 000 h).

Guidance for specification option:

Luminous flux at end of rated operating time, 100%.

Graphical symbol format

Not required.

Guidance for specification option:

Supplied as standard without pictogram.

To BS EN ISO 7010, LED cover pictogram arrow left.

Guidance for specification option:

40071351587.

To BS EN ISO 7010, LED cover pictogram arrow right.

Guidance for specification option:

40071351588.

To BS EN ISO 7010, LED cover pictogram arrow down.

Guidance for specification option:

40071351589.

To BS EN ISO 7010, LED cover pictogram arrow up.

Guidance for specification option:

40071354210.

Accessories

Not required.

Cable gland - 40071350005.

Guidance for specification option:

Cable gland with ventilation membrane for outdoor areas.

Inrush current

3 A.

Current

47 mA.

Manufacturer guidance

Current consumption - battery operation (220 V).

Housing

Coated sheet metal and polycarbonate.

Housing colour

White.

Dimensions

654 x 354 x 61 mm.

Manufacturer guidance

Width x height x depth.

Mounting

Wall-mounted.

Weight

5.5 kg.

Literature

46011 LED (60 m) CG-S

46011 LED (60 m) CG-S
